Harris HP 721C Spec. Gas Regulator - CGA 510 Acetylene 721C015510E

Harris® HP 721C Specialty Gas Regulator - CGA 510 Acetylene with 1/4" Tube Fitting 721C015510E

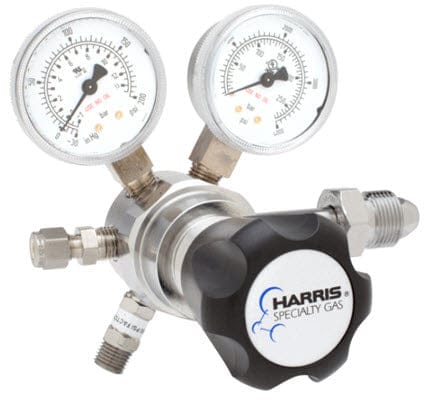

The Harris® HP 721C-015-510-E specialty gas regulator is a single stage, chrome-plated brass, high purity regulator with CGA 510 (Male Acetylene) inlet and 1/4" tube fitting. It features a 316L stainless steel diaphragm and a one piece encapsulated seat with sintered filter to prevent contamination. The HP 721C is recommended for Atomic Absorption Grade 2.6 (99.6%) acetylene gas and higher. It is ideal for laboratory and research applications such as gas spectroscopy. If your acetylene tank has female threads, choose this CGA 510 male acetylene regulator.



Features

CGA 510 (Male) Acetylene inlet

1/4 inch tube fitting (installed)

1-11/16 inch 316L stainless steel diaphragm eliminates contamination from diffusion or outgassing

One piece encapsulated seat design includes a sintered filter to protect the seat from particulate contamination

2 inch dual scale brass gauges (psi/bar)

Designed to 1 x 10-9 cc/sec. inboard helium leak rate to maintain gas purity levels

Maximum inlet 3000 PSIG

External relief valve standard

Delivery pressure 0-15 PSIG
