Millermatic® 355 MIG Welder 907808
The Millermatic® 355 is a 350 amp portable MIG Welder that operates on single or three-phase input power. It can even be plugged into a portable generator (full output with 19kW generator). The 355 welds material from 22 gauge to 1/2 in thick in a single pass. It comes standard with pulsed-MIG capabilities and a 7-inch color LCD display screen. Its inverter design means that the Millermatic 355 is less than half the weight of its popular predecessor, the Millermatic 350P.
The Millermatic 355 is perfect for fabrication, manufacturing, maintenance and repair. Auto-Set™ Elite technology allows you to use preset welding parameters based on metal thickness, shielding gas and welding wire type to achieve optimum welds. You can also set your voltage and wire feed speed manually and save your favorite settings for a custom welding experience. Pulsed-MIG welding capability provides even better weld quality and improved productivity on all metals, including thin-gauge aluminum and stainless steel.
Processes
MIG (GMAW)
Pulsed MIG (GMAW-P)
Flux Cored (FCAW)
Applications
Industrial Applications
Fabrication
Maintenance and Repair
Manufacturing
Features
Easy-to-understand interface with 7-inch color LCD display
Ensures proper machine setup and parameter selection, reducing setup time and increasing weld time. Quick-access backlit Auto-Set and Pulse buttons above the LCD display illuminate when active. Soft-key buttons below the display change function depending on which screen is displayed. Makes setup or change quick, easy and intuitive. Large text for easier readability. Intuitive connection setup images. Full troubleshooting descriptions versus help errors and look up codes.
Auto-Set™ Elite offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels. Available for MIG and pulsed MIG processes with the ability to fine-tune your settings. Set weld parameters by selecting wire and gas type, wire diameter and material thickness.
1- or 3-phase input power
Provides versatility to utilize any North American power (208, 230, 460, 575 Volts).
Program mode
Allows easy save and recall of favorite weld settings.
Delivers greater productivity by eliminating the need to manually set or change parameters.
Delivers consistent quality by welders of all skill levels by using prequalified weld settings.
Minimizes supervisor need to intervene.
Trigger program select
Increases productivity by eliminating the need to go back to machine to change weld settings. Simply tap gun trigger to select the program.
Pulsed MIG welding
Delivers higher quality welds for ALL welders.
Lower heat input for less distortion on thin materials and better puddle control on out-of-position welds.
Less spatter minimizes post weld grinding and rework allowing more welding time.
Perform welding applications that couldn't be done in the past.
Ideal for MIG welding aluminum and stainless steel.
Superior aluminum performance.
Direct connection for OPTIONAL XR™ push-pull guns or Spoolmatic® spool guns.
Auto-Gun Detect™ automatically adjusts voltage, wire speed and timers for faster switching between MIG, push-pull and spool guns.

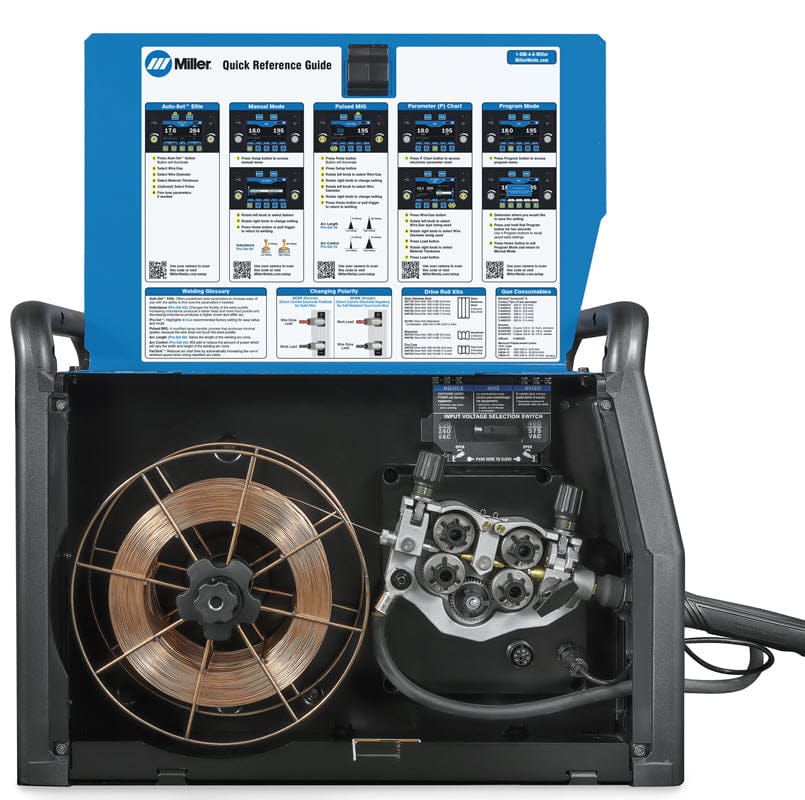

Industrial, 4-roll wire drive system
Features two easy-to-set, scaled, tension adjustments and quick-change reversible drive rolls for .035 and .045 in (0.9 and 1.2 mm) wire.
Input voltage selection
Switch located in the wire drive compartment provides the ability to manually switch input voltage. An error message will be displayed if the wrong input voltage is utilized.
Generator compatible
The Millermatic 355 will be able to operate and provide full output when powered by generators with 19,000-watt (19 kW) output or higher. Limited output will occur when used with smaller generators
Specs
Comes complete with:
Millermatic® 355 MIG Welder
Bernard BTB 300 MIG Gun with AccuLock™ consumables
Industrial power cord (without plug) for single- or three-phase
Work cable with clamp
Factory-installed gas solenoid
Argon mix regulator/flow meter
.035/.045 Drive rolls and contact tips
FREE Miller® T94i™ auto-darkening welding helmet
