Miller ArcReach 16 Wire Feeder 301619
Code: 301619
Select Your Free Zone Promo Bonus

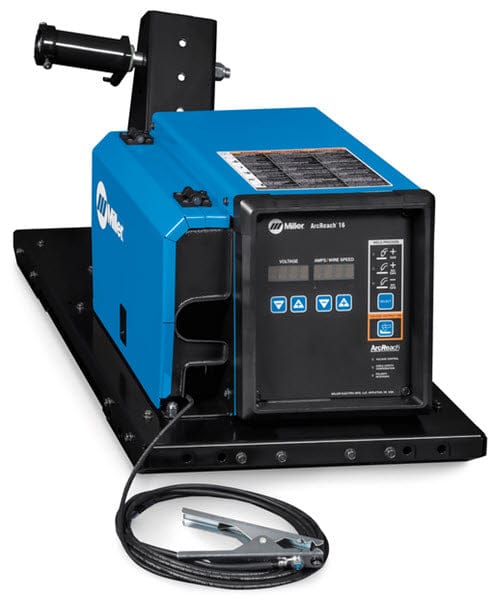

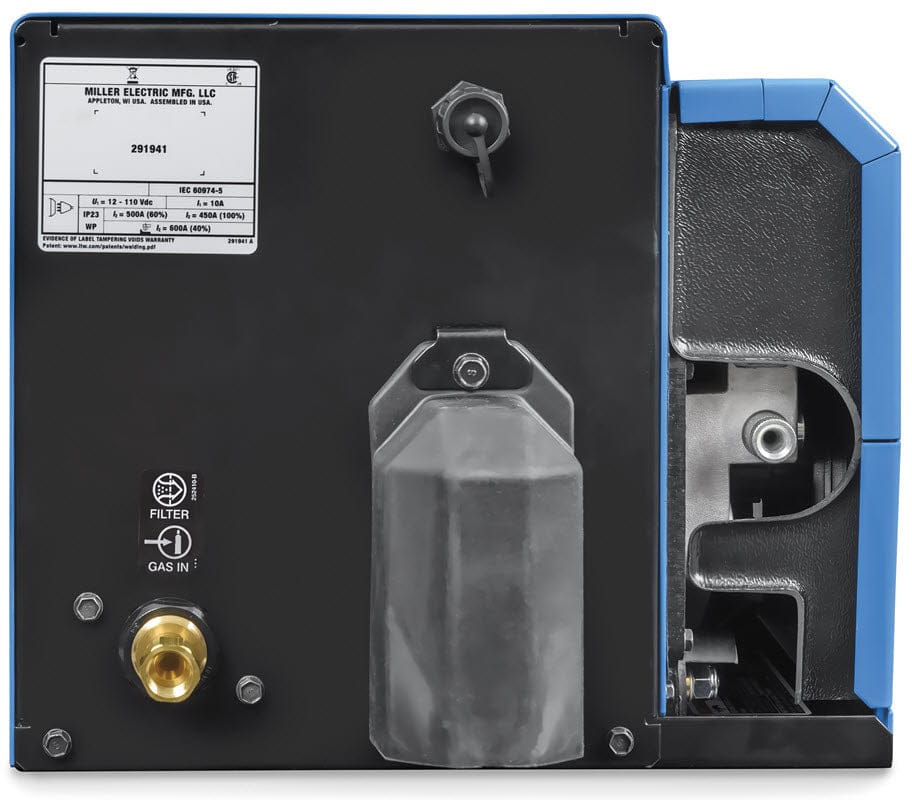

Miller® ArcReach® 16 Wire Feeder 301619
The Miller® ArcReach® 16 Wire Feeder is a heavy duty MIG/Flux-Cored wire feeder that has full remote voltage and amperage control without the use of a remote control cable. The secret to this technology is built-in circuitry in both the ArcReach 16 feeder and your Miller ArcReach welder that passes remote control signals through the welding leads, eliminating the need for costly remote control cables. ArcReach remote control distance is limited only by the length of your welding cable leads. ArcReach allows your MIG or Flux-Cored welding operation to take place further away from the welding power source and reduces downtime and costs by giving the operator full remote voltage AND amperage control capabilities at the site of the weld, without using expensive remote control cables. The ArcReach 16 MUST be paired with a Miller ArcReach welder.
The ArcReach 16 wire feeder has up to a 500 amp welding capacity. It also features an integrated gouging stud for air-carbon arc gouging up to 600 amps. The simple user interface allows for easy switching between MIG, Flux-Cored and gouging processes.
Processes
Applications
Industrial Applications
Shipbuilding
Construction
Heavy Manufacturing
Features:
ArcReach™ technology uses the existing weld cable to communicate welding control information between the feeder and power source.
This technology eliminates the need for control cords, and their associated problems and costs.
The simple interface allows operators to adjust parameters at the point of use with no control cords
Provides wire feed speed that is accurate and consistent
Provides consistent arc quality
Wide voltage range for small and large wires with no contactor chatter or arc outages
Simply connect the ArcReach 16 wire feeder to your weld lead and you are ready to go
Switch between welding and gouging with a push of a button with no need to swap leads or disconnect the wire feeder with isolated outputs
To minimize downtime and maximize productivity
Isolated gouging stud allows easy connection for gouging at point of use, eliminating the need to disconnect the wire feeder and to swap leads.
Comes Complete With
Get a FREE Bernard® Q4015AE8IMC MIG gun with the purchase of this ArcReach™ 16 wire feeder. While supplies last. (No substitutions allowed.)
Bernard® Q400 MIG Gun Q4015AE8IMC
Features
Specs
Miller Industrial MIG 4/0 Kit (Lug) 300390
Genuine Miller® MIG Kit includes Smith® regulator/flowmeter with 10 ft (3 m) gas hose, 10 ft (3 m) 4/0 feeder weld cable with lugs, 15 ft (4.6 m) work cable with 600-amp C-clamp and lug.
Miller Industrial 4/0 MIG Kit (Dinse) 300405
Genuine Miller® Industrial MIG Kit includes Smith® regulator/flowmeter with 10 ft (3 m) gas hose, 10 ft (3 m) 4/0 feeder weld cable with 50mm male dinse connector and lug, and 15 ft (4.6 m) work cable with 600-amp C-clamp with 50mm male dinse connector.
Miller Drive Roll Kit - .035 V Groove 4 Roll 151026
Genuine Miller® .035 V-Groove 4 roll drive roll kit for your Miller 70 Series or 60 Series wire feeder.
Miller Drive Roll Kit - .040 V Groove 4 Roll 161190
Genuine Miller® .040 V-Groove 4 roll drive roll kit for your Miller 70 Series or 60 Series wire feeder.
Miller Drive Roll Kit - .045 V Groove 4 Roll 151027
Genuine Miller® .045 V-Groove 4 roll drive roll kit for your Miller 70 Series or 60 Series wire feeder.

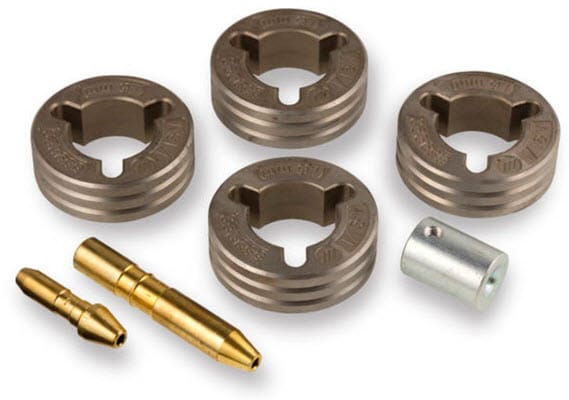

Miller Drive Roll Kit - .052 V Groove 4 Roll 151028
Genuine Miller® .052 V-Groove 4 roll drive roll kit for your Miller 70 Series or 60 Series wire feeder.
Miller Drive Roll Kit - 1/16 V Groove 4 Roll 151029
Genuine Miller® 1/16 V-Groove 4 roll drive roll kit for your Miller 70 Series or 60 Series wire feeder.
Miller Drive Roll Kit - .035 VK Groove 4 Roll 151052
Genuine Miller® .035 VK-Groove 4 roll drive roll kit for your Miller 70 Series or 60 Series wire feeder.

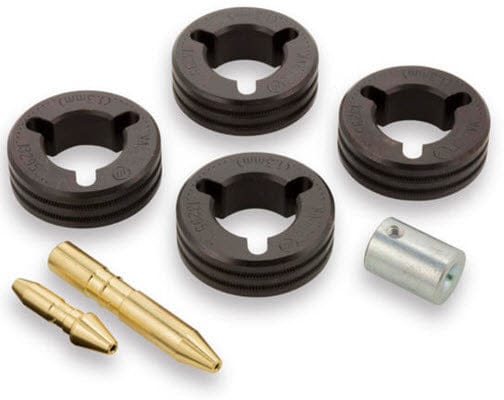

Miller Drive Roll Kit - .045 VK Groove 4 Roll 151053
Genuine Miller® .045 VK-Groove 4 roll drive roll kit for your Miller 70 Series or 60 Series wire feeder.
Miller Drive Roll Kit - .052 VK Groove 4 Roll 151054
Genuine Miller® .052 VK-Groove 4 roll drive roll kit for your Miller 70 Series or 60 Series wire feeder.
Miller Drive Roll Kit - 1/16 VK Groove 4 Roll 151055
Genuine Miller® 1/16 VK-Groove 4 roll drive roll kit for your Miller 70 Series or 60 Series wire feeder.

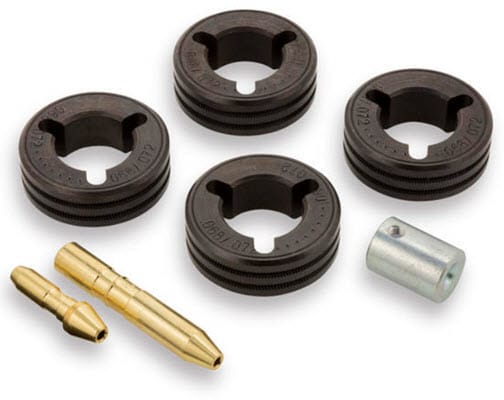

Miller Drive Roll Kit - .068/.072 VK Groove 4 Roll 151056
Genuine Miller® .068/.072 VK-Groove 4 roll drive roll kit for your Miller 70 Series or 60 Series wire feeder.

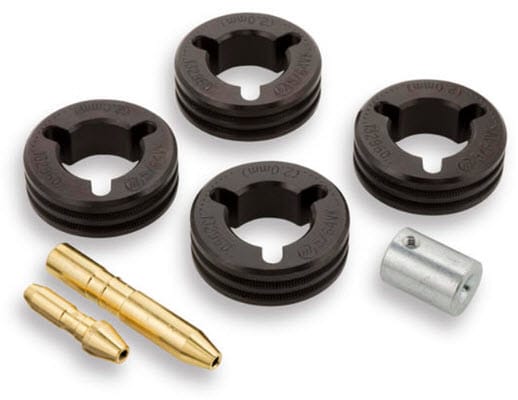

Miller Drive Roll Kit - 5/64 VK Groove 4 Roll 151057
Genuine Miller® 5/64 VK-Groove 4 roll drive roll kit for your Miller 70 Series or 60 Series wire feeder.

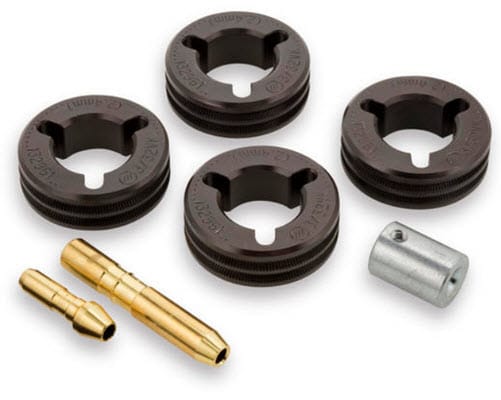

Miller Drive Roll Kit - 3/32 VK Groove 4 Roll 151058
Genuine Miller® 3/32 VK-Groove 4 roll drive roll kit for your Miller 70 Series or 60 Series wire feeder.
Miller Drive Roll Kit - 7/64 VK Groove 4 Roll 151059
Genuine Miller® 7/64 VK-Groove 4 roll drive roll kit for your Miller 70 Series or 60 Series wire feeder.
Miller Drive Roll Kit - 1/8 VK Groove 4 Roll 151060
Genuine Miller® 1/8 VK-Groove 4 roll drive roll kit for your Miller 70 Series or 60 Series wire feeder.
