Lincoln® POWER MIG® 360MP Multi-Process Welder K4467-1
The Lincoln® POWER MIG® 360MP is a 300 amp multi-process welder that is capable of MIG, pulsed-MIG, DC TIG, pulsed-DC TIG and Stick welding. It operates on 208-575 volt, single-phase input power. Advanced welding features include ArcFX™ technology. ArcFX™graphically displays how changes in voltage and wire feed speed affect your weld. Sample weld cross sections are displayed in the bright, 7 inch LED screen depicting how your bead profile will look based on your actual welding parameters. Using this feature allows you to quickly reference the type of welding outcomes you want and fine tune your adjustments accordingly. Ready.Set.Weld™ feature removes the guesswork in setting the right welding parameters for your job. Large color display guides you through your specific welding application to ensure a great weld every time.
Built-in pulsed MIG and pulsed DC TIG circuitry allows for superior control of the welding arc, while reducing burn-through and warping. Pulsed MIG Mode varies weld current between peak (high heat) and background (low heat) current to provide better control of heat input. Pulsed MIG also enables flat, horizontal, vertical up, or overhead welding without a slag system. Optimized GMAW-P wave forms are readily available to use on aluminum, carbon steel, high strength low alloy steel, stainless steel, and nickel alloys. Use pulse DC TIG welding with
OPTIONAL TIG torch to help minimize burn through on thin materials. Lower heat input may lessen warping of parts, especially stainless steel materials. The TIG Pulse feature has a single knob control which sets the pulse frequency over the range of 0.5-19.5 Hz, or 17.6-303 Hz. The pulse setting automatically regulates the output current between the peak amperage set by the amptrol (if used) and the background amperage, which is equal to 60% of the peak. The peak pulse % on-time is fixed at 50%.
The POWER MIG 360MP performs MIG, Flux-Cored, DC TIG and Stick welding. It has built in spool gun circuitry, for quality aluminum MIG welds using the
OPTIONAL Magnum® 250LX spool gun or push-pull gun. The 360MP produces up to 360 amps of welding output. It runs on into a 208V - 575V single-phase input power and has a three year factory warranty.
Processes
MIG (GMAW)
MIG Pulsed (GMAW-P)
Flux-Cored (FCAW)
DC TIG (GTAW)
DC TIG Pulsed (GTAW-P)
Stick (SMAW)
Applications
Metal Fabrication
Maintenance and Repair
Auto Body
Light Industrial

Features
ArcFX™ Technology
Patented technology providing instant graphical feedback on how Wire Feed Speed and Voltage affect the weld outcome.
Ready.Set.Weld® Quick Set-Up
Intuitive push-and-turn digital controls make setup a breeze
7 inch color display guides you through the setup process Advanced options and settings are simple to access
Multi-Process Capable
Welds MIG, flux-cored, stick, TIG, pulsed MIG, and advanced processes like Pulse-On-Pulse® and Power Mode®.
Aluminum Pulse Process
Welds 4XXX and 5XXX series aluminum for superior quality welding.
Pulse-on-Pulse
Delivers a stacked dime appearance using a sequence of varying pulse wave shapes to produce a TIG-like bead appearance and excellent weld properties when MIG welding aluminum.
Pulse-On-Pulse controls arc length and heat input together, making it easier to achieve good penetration.
Power Mode
Maintains a stable, smooth arc for short arc welding on steel. Improved penetration on thicker aluminum sections.
TIG Pulse
Use pulse TIG welding to help minimize burn through on thin materials.
The TIG Pulse feature has a single knob control which sets the pulse frequency over the range of 0.5-19.5 Hz, or 17.6-303 Hz.
Synergic Control
Set weld procedures with one control.
More Performance For Your Dollar
Universal Input Voltage
Maxtrac® wire drive provides constant wire feed speed and more consistent welds
Front access to 115V power outlet and gun connections
Push-pull and Spool gun ready for aluminum projects*
Automatic settings help achieve optimal weld parameters
Ergonomic Design
Tilting gas bottle tray for ease of loading
Ideal height for easy-to-view settings
Easy maneuverability and small footprint
Convenient top-mounted expendable parts compartment
PLEASE NOTE: This is a DC TIG welder ONLY. It CANNOT TIG weld aluminum.

Comes complete with
POWER MIG® 360MP Multi-Process Welder
Magnum® PRO Curve 300 15 ft. Gun
Maxtrac® Wire Drive with .035/.045 reversible drive rolls
Quick Storage Accessories
10FT Work Cable with Clamp
Gas Regulator
10FT Power Cable with Plug
FREE Lincoln® Viking™ FGS™ auto-darkening welding helmet.

Get a FREE Viking™ FGS™ auto-darkening welding helmet with the purchase of this POWER MIG® 360MP welder. Expires 3/31/23. (No substitutions allowed.)

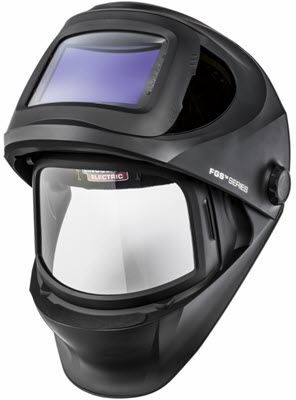

Genuine Lincoln® Viking™ 3250D FGS™ auto darkening welding helmet with integrated grinding shield combines 4C® optics with a wide angle grinding lens. The extra large 12.5 square inch auto-darkening lens features Lincoln's exclusive 4C® lens technology. Proprietary 4C liquid crystal display passes more true color through the lens in both light and dark states to create the clearest view of your work piece. The Viking 3250D welding hood has a perfect 1/1/1/1 optical clarity rating, meaning lens distortion and blurriness are completely eliminated, shade is consistent through every square inch of the lens and the welding arc looks crisp and clear at any angle.

The FGS's grinding shield provides a full 161 degrees of viewing angle while the welding lens is flipped up and out of the way. The extra large clear lens has an anti-fog coating and is ANSI Z87.1 compliant for impact hazards.
The Lincoln Viking 3250D FGS auto darkening welding hood comes complete with shade 5 side windows to protect from peripheral arc flash and has a three year lens warranty.
Viking™ 3250D FGS Features
4C™ lens technology optimizes contrast
and clarity in welding and light states - reducing eye strain and operator fatigue

Extra Large Viewing Area - The 12.5 square inch auto darkening lens provides a large field of view to increase versatility and operator control
Perfect 1/1/1/1 Optical Clarity -
This rating is determined by measuring blurriness, distortion, shade consistency and angle uniformity of the auto-darkening welding lens

Four arc sensors for superior lens response
DC TIG rated to 2 amps - Excellent performance on low amperage DC TIG welding applications.
External grind control - Low profile external grind control allows you to quickly switch between weld or grind modes.
Enhanced outdoor performance - helps lens distinguish between arc light and sunlight for a consistent welding experience indoors or outdoors.
Shade 5 Side Windows increases peripheral vision in the
closed helmet position
Flame Retardant Head Covering provides protection from
spatter and improves comfort
Large Integrated Grinding Shield protects operators from
impacts while providing a clear viewing area for grinding
and material inspection
Anti-Fog Coating helps maintain a consistently clear view
4 Axis Headgear provides multi-directional adjustments to evenly distribute weight and improve comfort


Comes complete with
Helmet bag
Bandana
5 outside cover lenses
2 inside cover lenses
Mag lens holder
Side window covers
Three year lens warranty
This item ships Free via standard ground shipping within contiguous U.S.
