Description
Lincoln® Ranger® 305 G EFI Engine Driven Welder (Kohler®) K3928-1
The Lincoln® Ranger® 305 G EFI is a 305 amp DC welder and 12,000 watt AC generator. It is capable of Stick, DC touch-start TIG, plus MIG and Flux-Cored welding with OPTIONAL LN-25® series voltage sensing wire feeder. The Ranger 305 G EFI produces up to 12,000 peak watts of single-phase AC auxiliary power. Its smooth welding output is well suited for pipe welding. The Kohler® CH740 two-cylinder gasoline engine produces 25 horsepower at 3,600 RPM and yet is up to 60% quieter than other welders in its class.
The Ranger 305 G EFI has a large 12-gallon fuel capacity for all day operation. Electronic fuel injection is standard for easy starts and greater fuel efficiency. Electric fuel pump is also standard to avoid vapor lock when welding at higher altitudes.
Processes
Stick (SMAW)
MIG (GMAW)
Flux-cored (FCAW)
DC TIG (GTAW)
Applications
Construction
Maintenance & Repair
Service Truck
Rental
Pipeline Welding
Features:
Kohler® CH740 Gasoline Engine
25 HP Electronic Fuel Injection
Electric fuel pump
to avoid vapor lock at high altitude
operation.
Multi-Process Welding
Excellent DC multi-process welding
for general purpose stick, downhill
pipe (stick), TIG, cored-wire and MIG (CO2
and mixed gas).
Only compact gasoline welder in
North America rated at 29V for
300 amps of stick or CV welding.
CV wire welding with up to 5/64 in.
(2.0 mm) diameter electrodes.
Digital Weld Meters
Digital weld meters for amps and
volts make it easy to precisely
pre-set your procedures and monitor
actual welding output.
Superior Arc Performance
Lincoln Electric Chopper
Technology® feature – provides easy starts,
a smooth arc, low spatter and optimal
bead appearance.
Peak Single-Phase AC Generator Power for
Motor Starting
12,000 watts peak
9,500 watts continuous for high
capacity needs such as a back-up
generator, powering a Lincoln Electric
Invertec® inverter welder. Also use for
lights, a grinder or other power tools.
AC generator voltage is constant at
120V or 240V at any weld dial setting.
Skewed Rotor Design
Skewed rotor design provides AC
power suitable for operating Lincoln
Electric inverter power sources.
Lincoln was the first in the
welding industry with this feature.
Rugged Reliability
Welding and AC generator outputs rated
at 104°F (40°C).
Comes complete with
Ranger® 305 G EFI welder with Kohler® OHV Command CH740 gasoline engine with Electronic Fuel Injection and electric fuel pump.

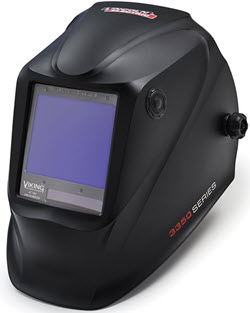

FREE Lincoln® Viking™ 3350 Black auto-darkening welding helmet.
Get a FREE Viking™ 3350 Black auto-darkening welding helmet with the purchase of this Ranger® 305 G EFI welder. Expires 3/31/23. (No substitutions allowed.)
Genuine Lincoln® Viking™ 3350 Black auto darkening welding helmet is the ultimate blend of true color optics, comfort & versatility. The extra large 12.5 square inch auto-darkening lens features Lincoln's exclusive 4C® lens technology. Proprietary 4C liquid crystal display passes more true color through the lens in both light and dark states to create the clearest view of your work piece. The Viking 3350 welding hood has a perfect 1/1/1/1 optical clarity rating, meaning lens distortion and blurriness are completely eliminated, shade is consistent through every square inch of the lens and the welding arc looks crisp and clear at any angle.
The Lincoln Viking 3350 auto darkening welding hood comes complete with Lincoln's X6 Headgear™ for superior comfort and has a three year lens warranty.
Viking™ 3350 Features
4C™ lens technology optimizes contrast
and clarity in welding and light states - reducing eye strain and operator fatigue
Extra Large Viewing Area - The 12.5 square inch auto darkening lens provides a large field of view to increase versatility and operator control
Perfect 1/1/1/1 Optical Clarity -
This rating is determined by measuring blurriness, distortion, shade consistency and angle uniformity of the auto-darkening welding lens
Four arc sensors for superior lens response
Ergonomic X6 Headgear™ features multiple user adjustments to enhance comfort
DC TIG rated to 2 amps - Excellent performance on low amperage DC TIG welding applications.
External grind control - Low profile external grind control allows you to quickly switch between weld or grind modes.
Enhanced outdoor performance - helps lens distinguish between arc light and sunlight for a consistent welding experience indoors or outdoors.
Comes complete with
Helmet bag
Bandana
5 outside cover lenses
2 inside cover lenses
Mag lens holder
Sticker sheet
Three year lens warranty
This item ships Free via standard ground shipping within contiguous U.S.
