Description
Miller Trailblazer® 325 EFI (Electronic Fuel Injection) With ArcReach® and Wireless Interface Control 907798001
The Miller® Trailblazer® 325 EFI with ArcReach® and Wireless Interface Control features full remote front panel access; including remote amp/voltage control and engine start/stop. The wireless interface control is a handheld unit that controls all weld parameters, stores custom weld settings, displays real time engine status and service intervals, and acts as a remote engine start/stop. Wireless interface control saves fuel, reduces jobsite noise, and enhances worker safety and productivity by reducing trips back and forth to the welder.
The Miller® Trailblazer® 325 EFI also comes standard with ArcReach®, which allows the Trailblazer to communicate directly with the remote Miller® ArcReach® wire feeder or Stick/TIG remote without the use of a remote control cable. The secret to this technology is built-in circuitry in both the Trailblazer 325 ArcReach welder and ArcReach wire feeder/remote control that passes remote control signals through the welding leads, eliminating the need for costly remote control cables. ArcReach remote control distance is limited only by the length of your welding cable leads. ArcReach allows your MIG or Flux-Cored welding operation to take place further away from the welding power source and reduces downtime and costs by giving the operator full remote voltage and amperage control capabilities at the site of the weld without using expensive remote control cables. The Trailblazer 325 ArcReach MUST be paired with a Miller ArcReach feeder or ArcReach Stick/TIG remote to get the full benefits of this feature.
The Miller Trailblazer® 325 EFI features electronic fuel injection, which saves fuel, offers more reliable starting in all operating conditions and lowers emmissions. It is a 325 amp, 100% duty cycle DC welder and 12,000 watt AC generator. The Trailblazer 325 EFI features a Kohler 23 horse power, fuel injected engine with Miller's exclusive Auto-Speed™ technology. Auto-Speed® matches the engine speed with the welding load. This means that the engine can run at optimum RPM rather than full RPM while under load. This translates into reduced fuel consumption, quieter operation and longer engine life.
The Trailblazer® 325 EFI has the most smooth, stable welding arc in the business. It produces X-Ray quality welds whether you are using MIG, Stick or DC TIG welding processes.
Processes (X-Ray Quality)
Stick (SMAW)
MIG (GMAW)
Flux Cored (FCAW)
DC TIG (GTAW)
Air Carbon Arc (CAC-A) Cutting
and Gouging (3/16 in carbons)
Air Plasma Cutting and Gouging
with optional Spectrum models
AC Generator
Applications
Industrial Applications
Fabrication
Maintenance
Repair
Structural Steel Work
Pipe
Sheet Metal
Features
Features
Wireless Interface Control - With wireless interface control, you can change welding processes, adjust
parameters, select and save preset programs, turn the machine on/off, get
service reminders and more from wherever you are on the jobsite. Extend
time between fill ups and maintenance intervals while eliminating the need
to go back to your machine to make adjustments.
300 foot operating range from welder to remote
View engine status,
fuel level, and battery
charge level of remote.
View and select between
all available processes.
Turn contactor on/off manually
in remote welding mode.
Turn engine on/off with remote.
Save custom presets in
up to four programs and
easily switch between
pre-programmed settings.
Quickly adjust and save arc
control settings including
DIG, DIG range inductance
and Auto-Stop.
Adjust amperage or voltage,
by increments or percentage,
while welding.
EFI gas engine optimizes
the air/fuel ratio for all
engine speeds and engine
loads, resulting in lower operational costs,
fewer emissions, longer runtimes and
better performance when compared to
carbureted models. The payback from fuel
savings alone is a matter of months.
EFI will give you:
Easy starts with no choke required
Reliable operation, even with infrequent
use - less prone to fuel deterioration
Fuel efficiency - use up to 27 percent
less fuel
Fewer emissions - 27 percent less CO
and 33 percent lower HC+NOx levels
Auto-Speed™ technology - Automatically adjusts the engine
speed to run at lower speeds
depending on the total power
needed, resulting in:
Exceptional fuel-efficiency
Extended run times
Quieter operation
Reduced emissions
Innovative design - Engine is rotated to the front to
create more efficient airflow, resulting in:
Quieter operation
Reduced size and weight
Easier maintenance
Remote control of the power
source without a cord -
ArcReach™ technology uses the existing
weld cable to communicate welding
control information between the
Miller® ArcReach® feeder or ArcReach® Stick/TIG remote and power source. This technology
eliminates the need for control cords, and
their associated problems and costs.
Designed for the professional welder -
the Trailblazer® 325 delivers
unbeatable arc performance in all weld
processes, providing the smoothest,
most stable arc in the industry.
Smart-Cor™ technology - Independent weld and generator
power in an improved, more
compact design.
No interaction between jobsite
tools and the welding arc, resulting in:
Stronger, cleaner, more
efficient generator power
Reduced size and weight
Improved arc performance
Ultra-adaptive arc control - Unlike conventional
DIG that provides a preset amount of short-clearing
current, Miller-exclusive Dynamic DIG technology
works on a time-based algorithm that automatically
adjusts the amount of current required to clear a short. Delivers a
smoother more consistent arc that can be tailored to match application,
material, fit-up and welder technique.
Innovative design - Engine is rotated to the front to
create more efficient airflow, resulting in:
Quieter operation
Reduced size and weight
Easier maintenance
More portable, uses less truck space - Miller Trailblazer welder/generators are up to 17% smaller and 10% lighter then competitive machines, which means moving them is faster and easier, for maximum productivity. And because they take up less space, Trailblazer welder/generators let work trucks carry more equipment and gear, so your work crews can be ready for anything.
Comes complete with
Wireless Interface Control (WIC) with recharging cord
PLUS get a FREE Miller® T94i™ ClearLight™ auto-darkening welding helmet with the purchase of this Miller® Trailblazer® 325 welder. Expires 3/31/23. (No substitutions allowed).

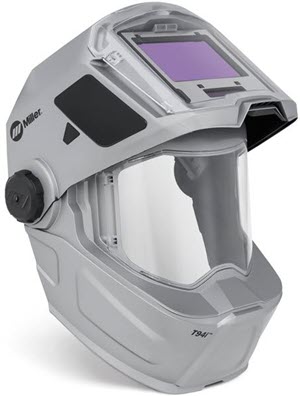

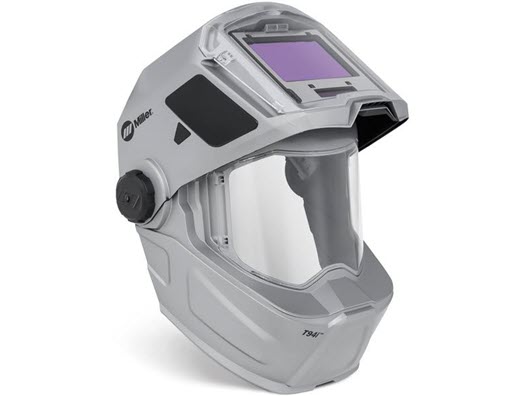

The Miller® T94i™ welding helmet features a built-in High-Definition View (HDV) grinding shield and Miller's ClearLight™ 2.0 auto-darkening lens technology that provides a bright, crisp, clear view of the weld puddle. The High-Definition View grinding shield and welding lens cover provide a sharp, detailed view of the work piece at any angle, with minimal distortion. The ClearLight™ 2.0 auto-darkening lens offers ultra-clear optics with more realistic color hues in both light and dark states.
The Miller T94i is designed to perform in high-heat*, industrial welding applications. The matte silver finish reflects heat while the aluminum heat shield protects the auto-darkening welding lens. The lens operates in Weld, Cut, Grind and X-Mode™, which is ideal when welding with low amperage DC TIG, with obstructed views of the welding arc or while welding outdoors. It is capable of DC TIG welding down to 3 amps and has four arc sensors. InfoTrack™ 2.0 Data tracks arc time and arc count for improving productivity and more accurately quoting projects.
The T94i helmet shell comes standard with shade 5 side windows to improve peripheral vision while welding and easily accommodates a Miller half-mask respirator under the hood.
T94i™ Features
ClearLight™ 2.0 lens technology
Provides advanced, high-definition optics for the most realistic view that’s clearer and brighter - before, during and after every weld.
High-Definition View (HDV) Technology
Provides a sharp detailed view at any angle with minimal distortion. This is found in the cover lens and the grind shield.
Aluminum heat shield
Protects the digital lens in high amperage applications
Weight: 25.7 oz. (729 g)
Lightweight, well-balanced design reduces
neck torque, minimizing operator fatigue and strain.
Matte silver shell reflects heat
Keeps helmet and user cool
Shade 5.0 side windows
Enhance peripheral
vision, amplifying sense of surroundings
Chiseled shell design
Provides optimal
skin coverage while easily accommodating a
Miller® half mask respirator
Convenient quick release
HDV One-piece cover lens changes are quick and easy.
Helmet locks
In upright position, allowing user
to keep helmet on for non-welding tasks
Digital Controls With Four Operating Modes -
- Weld Mode™ Shades #8 - 13
- Cut Mode™ Shades #5 - 8
- Grind Mode - Light State #3
- X-Mode™ Shades #8 - 13
X-Mode Electromagnetic Arc Sensing
For Sunlight interference outdoors, Low-Amperage TIG, Pipe/Curves, Obstructed Sensors & Hidden/Cavity Welds
Infotrac™ 2.0
Allows for monitoring of arc time and arc count
Half-Shade settings
Allows for precise lens adjustments based on the environment
Simplistic digital lens interface
Allows for easy adjustment with or without gloves.
Integrated mag lens holder
Lithium batteries with solar assist
Up to 3,000 hours of life
Meets ANSI Z87.1-2015 standard
Gen IV headgear
Features additional settings for better fit & comfort
*May not be suitable for some amperage/temperature extremes.
Comes complete with
5 outside cover lenses
2 inside cover lenses
2 side window covers
Helmet bag
This item ships Free via standard ground shipping within contiguous U.S.
