The Miller Multimatic™ 200 welder is Miller's first truly portable multi-process welder. The Multimatic™ 200 is an industrial MIG welder, Stick welder and DC TIG welder all-in-one.
Auto-Set™ Elite allows the Multimatic™ 200 to run on either 120 volt or 230 volt input power using Miller's exclusive multi-voltage plug (MVP™). The Auto-Set™ Elite feature also allows the user to fine tune voltage and wire feed speed manually, creating a custom, precision welding arc.
Processes MIG (GMAW)
Stick (SMAW)
Flux Cored (FCAW)
DC TIG (DC GTAW)
Features
The all-in-one, portable, multiprocess power source from Miller weighs only 29 pounds (13.2 kg) and running on either 120 or 230 V, the Multimatic 200 can go anywhere you need to MIG, TIG or Stick weld.
Auto-Set™ Elite can be used on multiple materials and multiple processes with the ability to fine-tune your settings. Simple to set up and use!
Impact-resistant case provides strength and durability, protecting the internal components and welding wire.
Excellent arc characteristics! Multimatic 200 offers positive arc starts and an extremely stable arc with minimal spatter on both mixed gases and straight CO2.
Multi-voltage plug (MVP™) allows you to connect to common 120 or 230 V power receptacles without the use of any tools and choose the plug that fits the receptacle and connect it to the power cord.
Miller's Auto-Line Technology Provides state-of-the-art flexibility, automatically connecting to 115 or 230 VAC, single-phase power without removing the cover to re-link the power source.

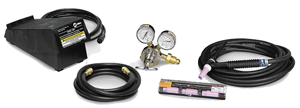

OPTIONAL TIG Kit - gives you everything you need for remote TIG welding with the Multimatic 200. Includes RFCS-6M remote foot control, Weldcraft® 150-amp WP17 TIG torch with 25-mm Dinse connector, AK-2 torch accessory kit, regulator and gas hose.
OPTIONAL Spoolmate™ 100 OR Spoolmate™ 150 direct-connect spool gun. The Spoolmate 100 is ideal for running 4043 aluminum and solid MIG wire sizes .023 to .035 diameter. The Spoolmate 150 runs both 5356 and 4043 aluminum and solid MIG wire sizes .030 to .035 diameters

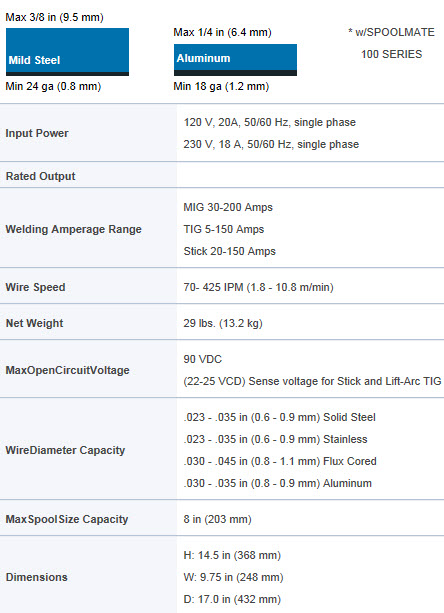

Specs
Comes complete with
Multimatic™ 200 Multi-Process Welder
Power cord and MVP plugs for 120 and 230 V
10-ft. (3 m) Miller® MDX™-250 MIG gun
13-ft. (4 m) lead with electrode holder and
25-mm Dinse connector
10-ft. (3 m) work lead with clamp and 25-mm
Dinse connector
Two contact tips for .030-in. (0.8 mm) wire, and two contact tips for .035-in. (0.9 mm) wire
Dual-groove quick-change drive rolls for .024-in. (0.6 mm) or .030/.035-in. (0.8/0.9 mm) wire
Smith® Argon and AR/CO2 mix regulator/flow gauge with 12-ft. (3.7 m) hose
Information/settings chart and quick setup guide
Material thickness gauge #229 895
FREE Miller® Classic VSi Black auto-darkening welding hood.
FREE Hobart® Fabshield® 21B 2 lb. spool .035 E71T-11 flux-cored welding wire.
Get a FREE Miller® Classic VSi Black auto-darkening welding helmet PLUS a FREE 2 lb. spool of Hobart® Fabshield® 21B .035 E71T-11 flux-cored welding wire with purchase of a Multimatic™ 200 multi-process welder. While supplies last. (No substitutions allowed.)The Miller® Classic Black VSi ClearLight™ welding helmet with integrated grinding shield features a four color variable shade 8-13 auto-darkening lens with Miller's innovative X-Mode™. ClearLight™ offers a bright, crisp, clear view of the weld puddle with more realistic color hues in both light and dark states. The X-Mode™ feature is excellent for welding outdoors or for low amperage welding. The Classic VSi ClearLight gives you the added convenience of a fully integrated grinding shield built right into the helmet.
The Classic Black VSi ClearLight lens also features Miller's replaceable battery/solar-assist Classic Series lens technology (no recharging required). It is one of the most versatile DIY and light industrial welding helmets you can buy. The VSi lens offers unsurpassed light-state clarity and exceptional battery life at an unbeatable price.
Classic Series The ideal welding helmet for DIY and light-duty industrial applications.
Classic VSi Features
ClearLight™ lens technology optimizes contrast and clarity in welding and light states - reducing eye strain and operator fatigue
Variable shade 8-13
X-Mode™ allows welding in bright sunlight without unwanted lens darkening. Also detects low amperage DC TIG arc and obstructed-view welding arcs
Manual On/Auto-Off circuitry
Three independent arc sensors
TIG rated down to 5 amps
Features magnifying lens holder
Flip up design with integrated grinding shield
Extra protective lens covers included
Classic Series Specs
Fabshield® 21B Features
E71T11 Self-Shielded Wire - no shielding gas needed
.035 wire diameter
Excellent for general purpose carbon steel welding applications.
Works well on galvanized steel.
All-position, single or multiple pass
