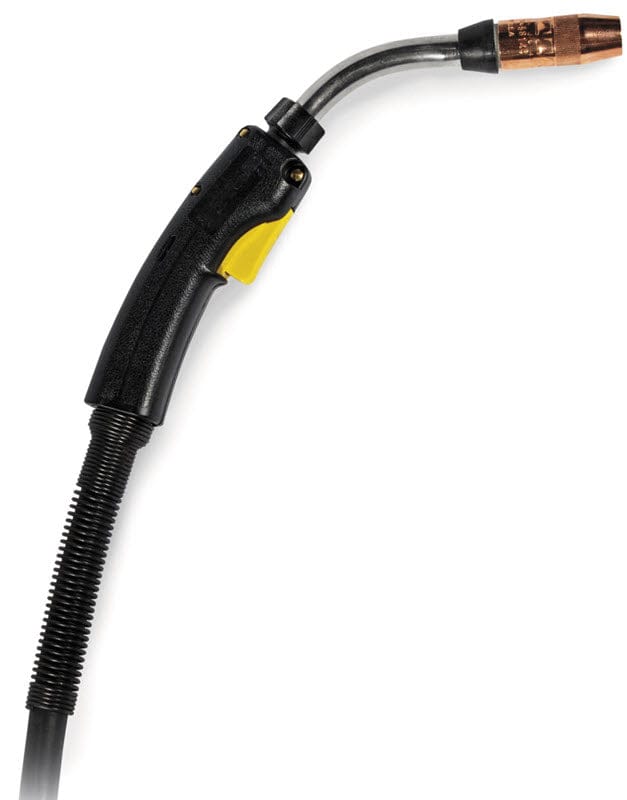

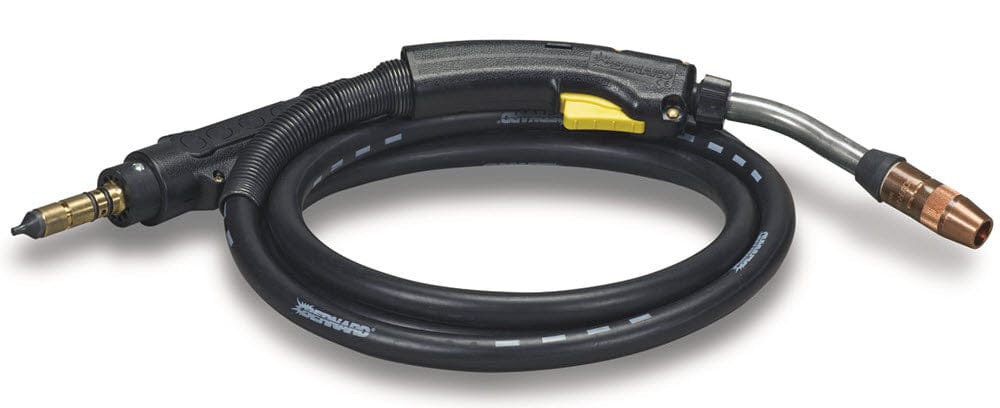

Bernard® BTB Q40 MIG Gun - 400 amp Q4015AE8IMC
Genuine Bernard® BTB Q4015AE8IMC MIG gun features Centerfire™ consumables and is configured for running 1/16 diameter solid and flux-cored welding wires. It has a length of 15 feet and comes complete with a 45 degree rotatable neck. This BTB Q40 MIG gun is equipped with a Miller® back end for a direct plug connection into Miller® MIG wire feeders.
Features
Rotatable neck offers quick-change without tools.
Patented Jump Liner technology can reduce replacement liner costs by 65%.
Fast and simple cable replacement; superior mechanical connections are benefits of Bernard's cone nut connector.
Interchangeable necks and front end consumables from 150 to 600 amps simplify set up and spare parts inventory.
Made with pride and without compromise in the USA.
Centerfire consumables include these significant benefits:
No tools required to replace tip or nozzle.
"Drop-In" tip with no threads means quick change after burnback, reducing down time.
Large diameter tip base and tapered seat provides better electrical conductivity and heat transfer.
Spatter shield within nozzle protects diffuser and gives smoother, less turbulent gas flow.
Solid, concentric relationship between tip and nozzle keeps tip centered even after hard use and abuse.
Threaded nozzle holds tip fixed at 1/4" or 1/8" recess, flush, or 1/8" stick out.
Compatible with all standard air-cooled Bernard guns and many non-Bernard MIG guns. (with proper adaptors)
Complete family of tips and nozzles is available to meet most of your welding needs.
Specs
400 amps @ 100% duty cycle with CO2 shielding gas
15' gun cable length
45 degree rotatable neck
Configured for 1/16 diameter welding wire
Conventional liner
Miller direct plug back end
