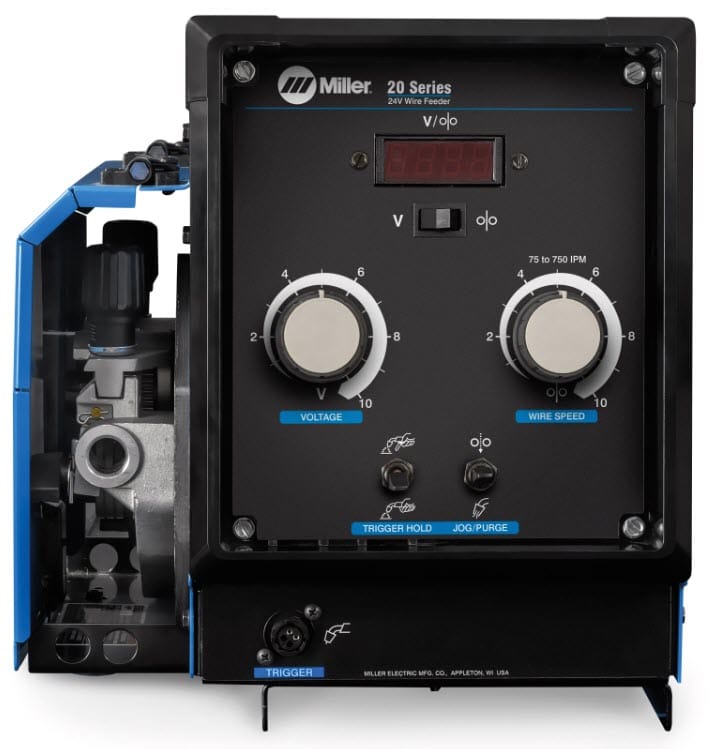

Miller 20 Series Digital Wire Feeder 951780001

Miller® 20 Series Digital Wire Feeder 951780001

The Miller® 20 Series Digital Wire Feeder comes standard with digital meter, remote voltage control capabilities and adjustable run-in control. It is a robust, industrial four drive roll wire feeder that comes complete with drive rolls and 400 amp MIG gun. The 20 Series features trigger hold, burn back control and has a 75-750 inches per minute wire feed speed capacity. It can feed MIG or flux-cored welding wire from .024 inch to 5/64 inch diameter.

With Miller's standard 14-pin interface connection, the 20 Series wire feeder is compatible with any Miller MIG welding power source that is equipped with a 14-pin receptacle. It is a direct replacement for Miller S-22A and S-24A wire feeders.



Processes

MIG (GMAW)

Flux Cored (FCAW) (gas and self-shielded)

Applications
Heavy or light-duty fabrication shops
Trailer manufacturers
Furniture manufacturers
Automotive products
Educational institutions

Features

Digital meter and remote voltage control are standard. Parameter adjustments can be made in weld cell or at a remote location.

Adjustable run-in control is standard for better arc-starting performance on a variety of wires.

Wire feed speed range is 75-750 ipm. This offers a wider operating range than the competition.

Trigger hold control allows operator to make long extended welds without having to hold gun trigger.

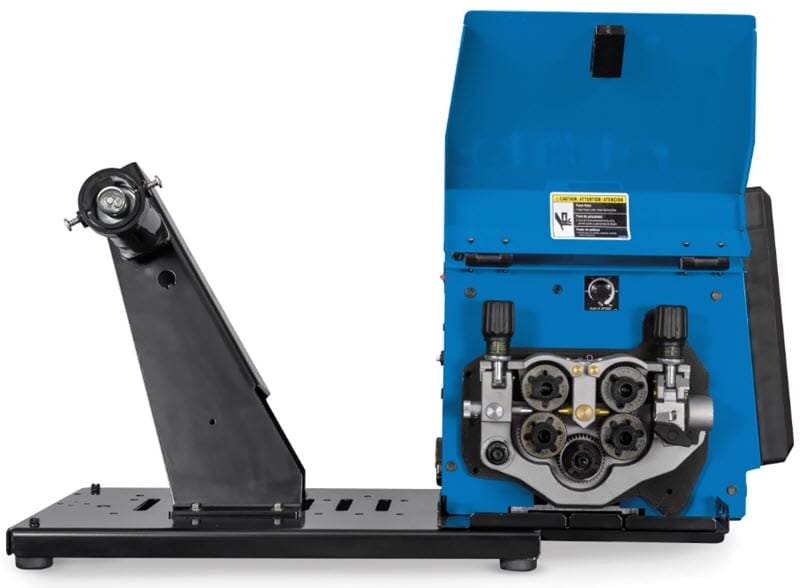

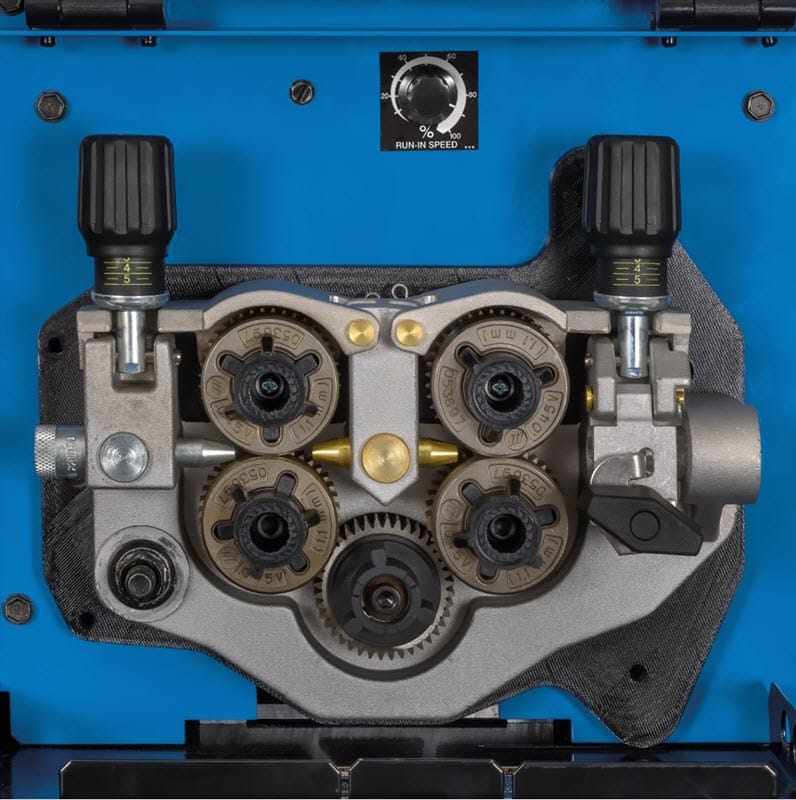

Four gear-driven drive rolls offer smooth, positive and accurate wire feed with long, uninterrupted service life.

On-board burnback and motor ramp control offers unmatched starting and stopping performance on a variety of power sources. This helps to ensure positive arc starting performance.

16-gauge sheet metal housing is robust in rough service applications and less prone to damage.





Comes Complete With:

20 Series Wire Feeder with Digital Meter, remote voltage and run-in control.

15 ft. Bernard® Q-400 MIG Welding Gun

1 - four roll set .035-.045 V-groove drive rolls

3 - .035 AccuLock™-S contact tips

2 - .045 AccuLock™-S contact tips

Standard 10 ft 14-pin interconnecting cord is included

FREE Miller® Digital Performance™ ClearLight™ black auto-darkening welding hood.

Get a FREE Miller® Digital Performance™ ClearLight™ Black auto-darkening welding helmet with the purchase of this Miller® Series 20 wire feeder. While supplies last. (No substitutions allowed.)

Digital Performance™ Features

ClearLight™ lens technology optimizes contrast and clarity in welding and light states - reducing eye strain and operator fatigue

Digital Controls With Three Operating Modes -

• Weld Mode™ Shades #8 - 13
• Cut Mode™ Shades #5 - 8
• Grind Mode - Light State #3

Improved headgear features additional adjust-ability settings for better fit & comfort

Quick-release front cover lens assembly



Comes complete with

5 outside cover lenses

2 inside cover lenses

Helmet bag

Three year warranty
