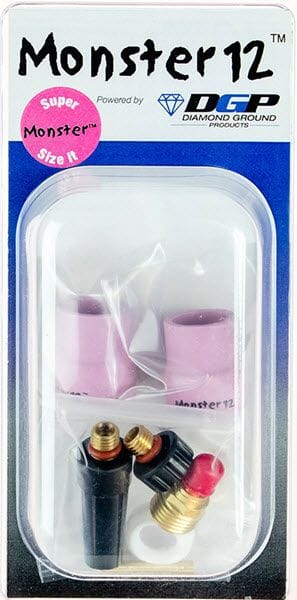

Diamond Ground Monster 12 TIG Nozzle Kit MN12-2-116D

Diamond Ground Monster 12™ TIG Nozzle Kit for 9 Series and 20 Series TIG Torches - For Use With 1/16" Diameter Tungsten Electrode MN12-2-116D

Diamond Ground Monster 12™ Series 2 TIG nozzle kit for 9 and 20 series TIG torches comes complete with two 3/4" size #12 nozzles that dramatically improve shielding gas coverage and allow for greater tungsten electrode stick out. The internal screen stacks installed within the Monster TIG nozzles work with your standard gas lens to virtually eliminate shielding gas turbulence and greatly increase shielding gas coverage area. Better gas coverage allows for longer tungsten stick out, providing an unobstructed view of the weld puddle.

The Monster 12 TIG nozzle kit includes two Monster 12 alumina nozzles with screen stacks and one each 45V44 gas lens, 1/16 stubby collet, nozzle insulator, short back cap and medium back cap.



Features

For 9 series air-cooled and 20 series water-cooled TIG torches

Improves shielding gas coverage for critical TIG welds

Virtually eliminates gas turbulence

Allows for longer tungsten electrode stick out, giving you a better view of the weld puddle

Uses industry standard gas lens and collet

For use with 1/16" diameter tungsten electrode (not included)

Comes Complete With
2 - Monster 12 nozzles with 3/4 inch, size #12 orifice with installed screen stacks
1 - 45V44 gas lens
1 - 1/16 stubby collet
1 - Nozzle Insulator
1 - Short back cap
1 - Medium back cap
