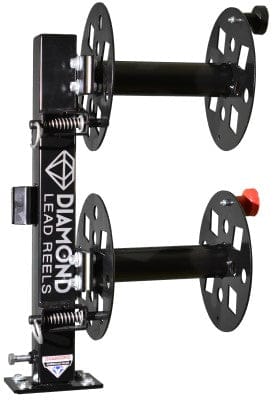

Diamond Welding Lead Reel - 12 Inch Swivel Base Double SBD12BLK
The Diamond SBD12BLK swivel base lead reel features two heavy duty 12 inch reels that are capable of holding up to 200 feet of welding cable each. Base swivels 360 degrees in 90 degree increments and features a locking bolt to secure lead reel in the desired position.
All Diamond lead reels are made in the USA of powder coated steel. Reels are fully electrically isolated up to 600 amps and come with heavy duty manual friction brakes to keep welding cable from becoming uncoiled.
Welding Cable Capacity
150 feet size 1/0 welding cable (each reel)
100 feet size 2/0 welding cable (each reel)
Features
Stays connected to the welder at all times.
Vented circle design allows for free air flow over your lead to aid in cooling.
Heavy-duty manual friction brake is adjustable, allows for adjustable tension and prevents free spooling of leads.
Locking pull pins secure cables while not in use.
Comes standard with 600 amp spool insulators.
Heavy-duty, all-steel construction
Ball bearing spools
Powder coated for a lasting finish
