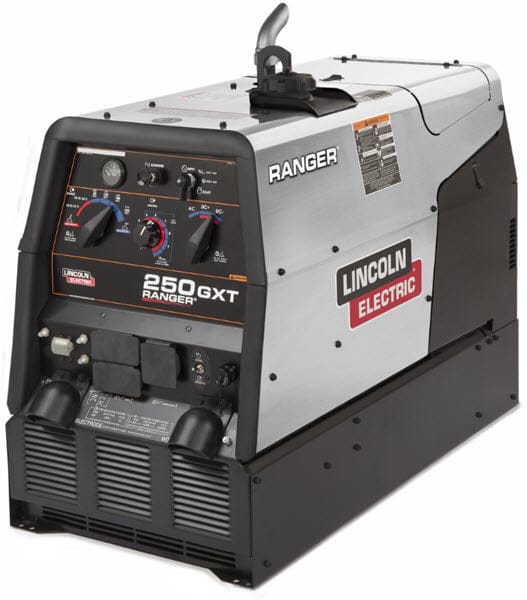

Lincoln® Ranger® 250 GXT with Stainless Steel Case Engine Driven Welder K2382-5
The Lincoln® Ranger® 250 GXT with Stainless Steel Case is a 250 amp AC/DC engine driven welder and 11,000 watt AC generator. Stainless steel sheet metal top, sides and engine doors resist corrosion for long life in the harshest welding conditions. The smooth welding output produces excellent results while welding with various types of stick welding electrodes. The Ranger 250 is also capable of DC scratch-start TIG welding or AC TIG with OPTIONAL TIG module. It can also perform MIG and Flux-Cored welding with OPTIONAL LN-25® series voltage sensing wire feeder.
The Ranger 250 GXT with stainless steel case produces up to 11,000 peak watts of single-phase AC auxiliary power. Its compact size makes it ideal for hauling in the back of your pickup truck. Three engine access panels and convenient battery access panel help make maintenance quick and easy. Fuel guage and hour meter are located on the front panel for quick viewing. The Kohler® CH730 two-cylinder gasoline engine produces 23 horsepower at 3,600 RPM.
Processes
Stick (SMAW)
MIG (GMAW)
Flux-cored (FCAW)
AC/DC TIG (GTAW)
Air Carbon Arc Gouging with 3/16" carbons
Applications
Construction
Farm & ranch
Maintenance welding
Features:
Totally Enclosed Stainless Steel Case -
Resists corrosion for longer life than painted steel case.
Engine is fully protected.
3 service access doors.
Low noise 76.4 dBA sound level at 23 ft. (7 m). 100.7 dB sound power (Lwa) at rated output.
Versatile AC/DC Welding
AC/DC welding output for a broad range of stick electrode types.
Excellent AC TIG welding with optional TIG Module and either a foot or hand Amptrol™ for aluminum and other alloy welding
MIG, flux-cored and TIG capable (with optional equipment).
Remote ready! 6-pin connector and local/remote switch for remote control operation
11,000 Watts Peak Single-Phase AC Generator Power
Peak for motor starting.
10,000 watts continuous power for generator, plasma cutter or inverter welder.
Lights, grinder, power tools.
23 HP Kohler Gasoline Engine
2 cylinder, 4 cycle overhead valve air-cooled design.
Oil drain extension for easy oil changes.
12 gallon tank for extended run times.
Delivers up to 42 amps from the single 120V/240V full-KVA receptacle. Standard circuit breakers protect the machine as well as your power tools.
Delivers up to 40 amps from two 120V duplex receptacles.
Rugged Reliability
Welding and AC generator outputs rated at 104 F (40 C).
Comes complete with
Ranger® 250 welder with Kohler® OHV Command CH730 gasoline engine.
Stainless steel top, side panels and engine doors.
