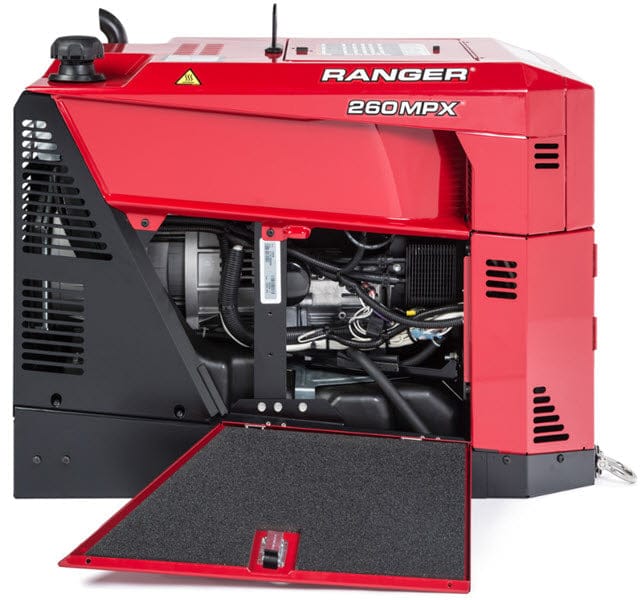

Lincoln® Ranger® 260MPX™ Engine Driven Welder K3458-1
The Lincoln® Ranger® 260MPX™ is a 260 amp DC engine driven welder and 10,500 watt AC generator. It is capable of Stick, DC touch-start TIG, plus MIG and Flux-Cored welding with OPTIONAL LN-25X® series voltage sensing wire feeder. Built-in CrossLinc® technology means the Ranger 260MPX communicates directly with your LN-25X wire feeder through your welding leads for full remote amperage and voltage control without the use of a separate remote-control cable.
The Ranger 260MPX produces up to 10,500 peak watts of single-phase AC auxiliary power. Its compact size is up to 20% smaller than similar welders in its class, leaving more room for tools and equipment in your truck bed. The Kohler® CH730 two-cylinder gasoline engine produces 25 horsepower at 3,600 RPM and yet is up to 60% quieter than other welders in its class.
Processes
Stick (SMAW)
MIG (GMAW)
Flux-cored (FCAW)
DC TIG (GTAW)
Applications
Construction
Maintenance & Repair
Service Truck
Features:
Smaller Size -
Up to 20% smaller footprint than other machines in its class
Up to 25% lighter making it easier to maneuver around the job site
Up to 31% smaller in volume than other machines in its class
Quiter Sound
Up to 60% quieter than other machines in its class
Engineered to enhance operator comfort and safety
Ready.Set.Weld® intuitive push-and-turn digital controls make setup a breeze
Maintenance Alerts keep track of engine functions and provide real-time data and notifications when service is required. The maintenance screen clearly displays hours remaining, and settings can be customized to issue alerts at preferred intervals
Chopper Technology® feature provides easy starts, a smooth and consistent arc, and low spatter for optimal bead appearance
CrossLinc® remote technology communicates voltage control to the welding power source through one common weld cable
HIGH QUALITY OPERATIONS
Clean AC generator with 9.5 kW of continuous, consistent power to keep tools running without interruptions
Plenty of power at 260A/26V for 100% duty cycle to weld 5/32 in. 7018 electrode
10,500 Watts Peak Single-Phase AC Generator Power
Peak for motor starting.
9,500 watts continuous power for generator, plasma cutter or inverter welder.
Lights, grinder, power tools.
Operate sensitive electronics, like laptops, without concern - this unit delivers clean generator power with 5% Total Harmonic Distortion
23 HP Kohler® Gasoline Engine
2 cylinder, 4 cycle overhead valve. air-cooled design.
Rugged Reliability
Welding and AC generator outputs rated at 104F (40C).
Comes complete with
Ranger® 260MPX™ welder with Kohler® OHV Command CH730 gasoline engine.
PLUS get a $500 VISA® gift card from Lincoln® with the purchase of this Ranger® 260MPX™ welder. Rebate form must be submitted online HERE no later than 30 days after purchase. While supplies last.
