Acetylene Inlet:CGA 510

-
+
FAST & FREE SHIPPING On All Orders Over $99

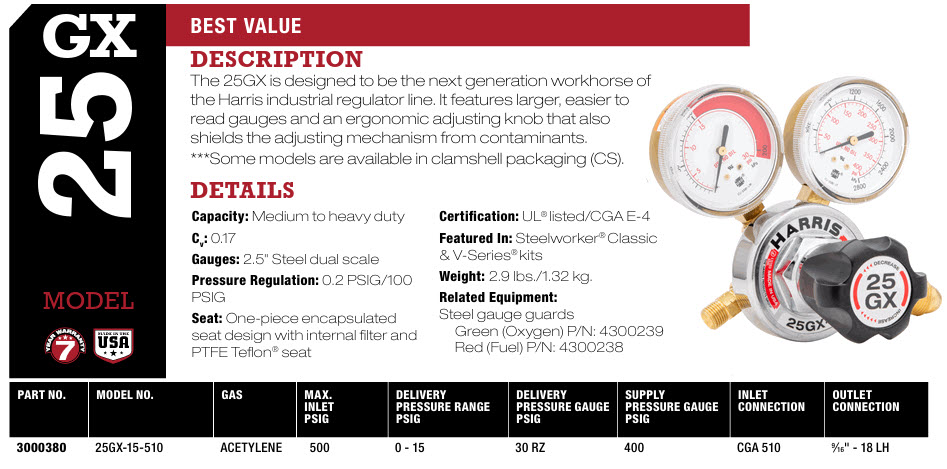

Harris® 25GX Model Acetylene Regulator (CGA 510) 25GX-15-510

Genuine Harris® 25GX Acetylene Regulator (CGA 510) is a single-stage, forged brass regulator designed for heavy to medium duty welding, cutting and brazing applications. The Harris 25GX acetylene regulator comes with dual 2.5 inch steel pressure gauges and has a max outlet pressure rating of 15 PSIG. The 25GX features a one-piece encapsulated seat design along with internal filter and PTFE Teflon. Ergonomic adjusting knob provides precise operation and longer service life. All Harris 25GX regulators are covered by Harris' industry-best 7 year warranty.

The 25GX-15-510 acetylene regulator comes with a CGA 510 inlet (left hand, male threads) and is designed to be used on acetylene cylinders equipped with a CGA 510 valve (left hand, female threads).



Features
  • Workhorse of Harris industrial regulator line
  • Brass body and nickel-plated zinc bonnet for longer service life
  • 2.5 in. gold painted steel dual scale easy-to-read gauges (psi/kPa)
  • Ergonomic ABS plastic knob for easy grip and precise adjustment
  • Neoprene diaphragm for greater sensitivity and improved pressure control
  • One-piece encapsulated seat design with an internal filter to protect the PTFE Teflon® seat from particulate contamination
  • Conforms to CGA E-4 standard for gas pressure regulators, UL® listed
