Harris HP 741 SS Nitrous Oxide Specialty Gas Regulator 741015326B

Code: 741015326B

Skip to product information
1 of 1

Cyberweld Price $541.30
Cyberweld Price $541.30
Mfg Industrial Price: $859.79
(You Save $318.49)
This item qualifies for free standard shipping.
Options

Inlet:CGA 326 Nitrous Oxide

Outlet:Stainless Steel Nipple with 1/4 inch MNPT

-
+
FAST & FREE SHIPPING On All Orders Over $99

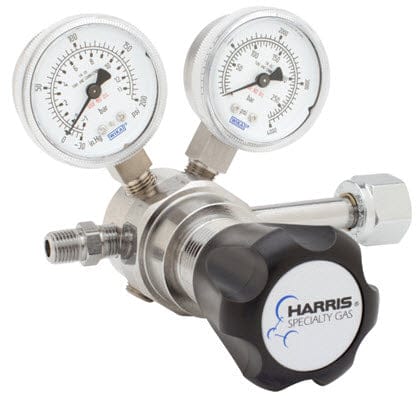

Harris® HP 741 Stainless Steel Specialty Gas Regulator - Nitrous Oxide 741015326B

The Harris® HP 741-015-326-B specialty gas regulator is a single stage, stainless steel, high purity nitrous oxide regulator with CGA 326 inlet and stainless steel 1/4 inch MNPT outlet. It features a 316L stainless steel diaphragm and a one piece encapsulated seat with sintered filter to prevent contamination. The HP 741 is recommended for gas purity levels of Grade 6.0 (99.9999%) and higher. It is ideal for laboratory and research applications where corrosive or ultra high purity gases are being used. Is is designed for use in gas chromatography, EPA protocol, laser gas and emission monitoring.



Features
  • Stainless Steel CGA 326 Nitrous Oxide inlet
  • Stainless Steel 1/4 inch male NPT outlet (installed)
  • 1-11/16 inch 316L stainless steel diaphragm eliminates contamination from diffusion or outgassing
  • 316L stainless steel body and fittings; chrome plated bonnet
  • One piece encapsulated seat design includes a sintered filter to protect the seat from particulate contamination
  • 2 inch dual scale stainless steel gauges (psi/bar)
  • Designed to 1 x 10-9 cc/sec. inboard helium leak rate to maintain gas purity levels
  • Front or back panel mountable
  • Maximum inlet 3000 PSIG
  • External relief valve standard
  • Available with delivery pressures up to 500 PSIG. (Please specify above)
