Hypertherm Powermax85 SYNC Plasma Cutter w/CPC & 180 Degree Machine Torch

Hypertherm® Powermax85 SYNC® Plasma Cutter with CPC Port, Voltage Divider and 180 Degree SmartSYNC™ Machine Torch

The Hypertherm® Powermax85 SYNC®, with CPC Port, Voltage Divider and 180 degree SmartSYNC™ machine torch, is an 85 amp CNC optized plasma cutter that is ideal for cutting mild steel up to 1 inch thick. The SmartSYNC™ plasma torch uses Hypertherm's proprietary one-piece consumable cartridge, for up to 5X longer consumable life and more consistent cuts. A single, color-coded cartridge contains all the necessary consumables for plasma cutting or gouging, in one convenient assembly.  The smart cartridge eliminates the need to individually replace the plasma nozzle, tip, electrode and swirl ring - saving time and reducing parts inventory.  RFID chips in both the consumable cartridge and SmartSYNC torch take the guesswork out of your machine set up by automatically setting the Powermax85 SYNC to the correct cut/gouge settings - no manual adjustments are necessary. The RFIDs also communicate the cartridge's end-of-life status back to the plasma cutter to ensure maximum performance and superior metal cuts.

The Powermax85 SYNC comes standard with Auto-Voltage™ detection and operates on single or 3-phase, 200V to 600V, 50/60 Hz input power. There is no need for manual voltage linking. It is available with 25 ft. or 50 ft. machine torch length and comes with Hypertherm's 3-year factory warranty. The CPC Port and voltage divider allow this model to communicate with your remote control or CNC mechanized cutting equipment.

Process

• Plasma Arc Cutting (PAC)
• Plasma Arc Gouging (PAG)

Features

• Easy to identify single-piece cartridge consumables
  Are color coded by process to eliminate parts mix-up and simplify consumable inventory management.
• New SmartSYNC™ torches with the Hypertherm® cartridge
  Automatically set the correct amperage and operating mode, eliminating setup errors.
• End of life detection
  Lets the operator know when it’s time to change the cartridge.
• Less operator fatigue
  When using hand torches with Hypertherm's new flexible lead. The lead has the same robustness of previous lead jacket material.
• Simplified operation
  Minimizes downtime, troubleshooting, waste and training time.
• Advanced cartridge consumable design
  Provides up to twice the life for hand cutting and improved quality over life in mechanized setups compared to standard consumables.
• Access cartridge data
  For performance tracking, analyzing usage patterns.

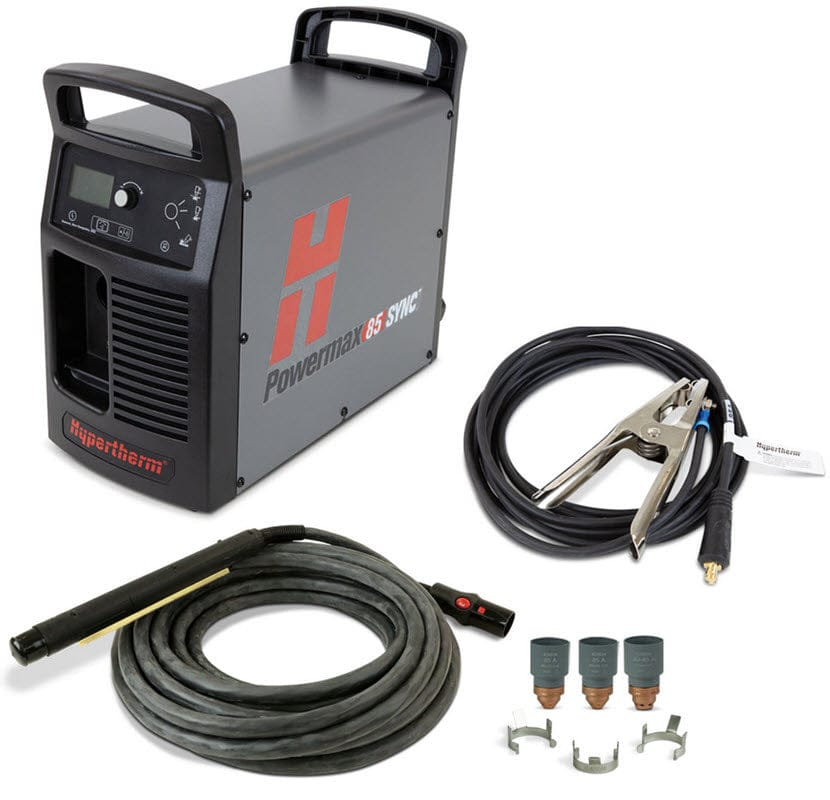

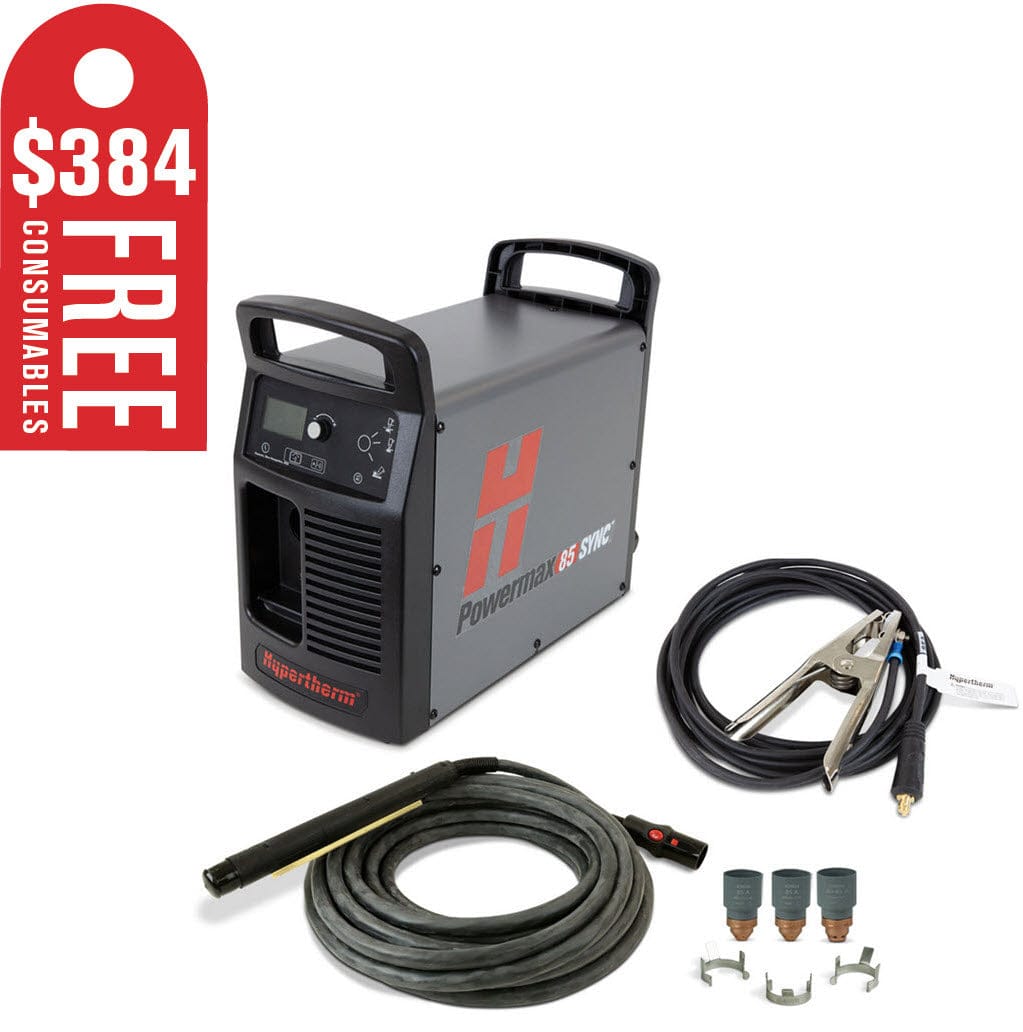

Comes Complete With:

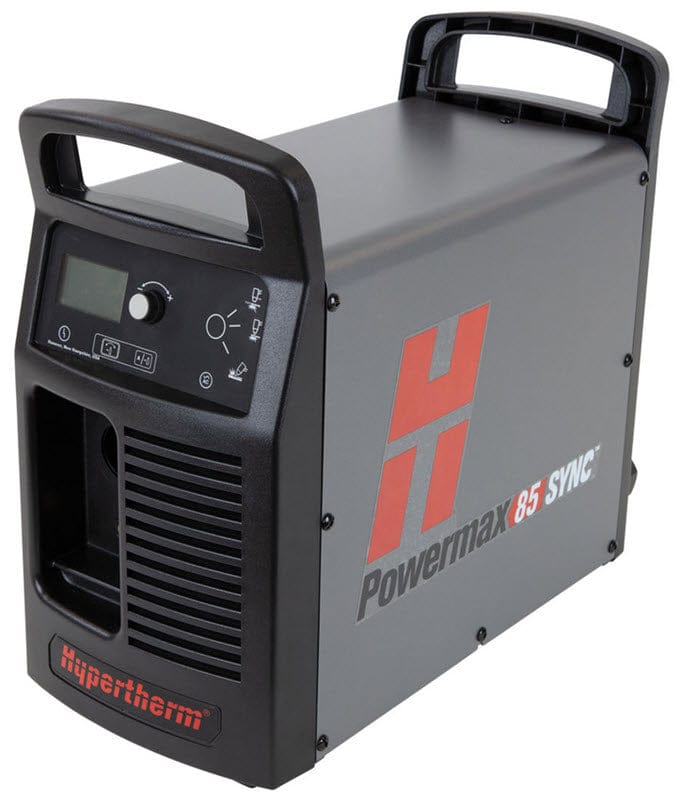

• Powermax85 SYNC® plasma cutter
• CPC Port with voltage divider

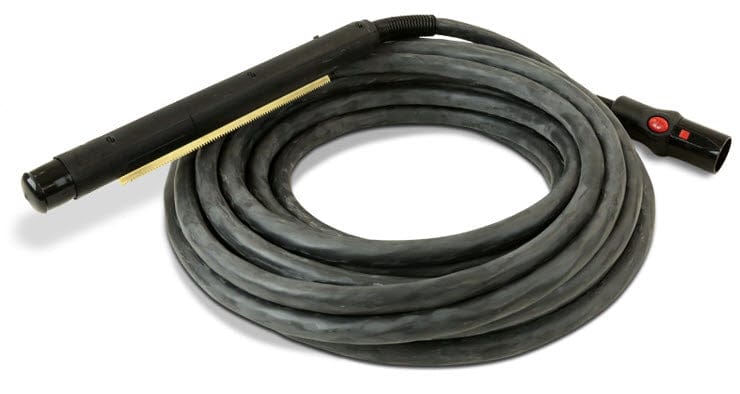

• SmartSYNC™ machine torch with 25 ft. or 50 ft. leads
• 1 - 30-45 amp FineCut® mechanized consuamble Smart Cartridge (#428926)
• 2 - 85 amp mechanized cutting consuamble Smart Cartridges (#428934)
• 3 - ohmic rings (#420580)
• 10 ft. input power cable
• Work lead with ground clamp
