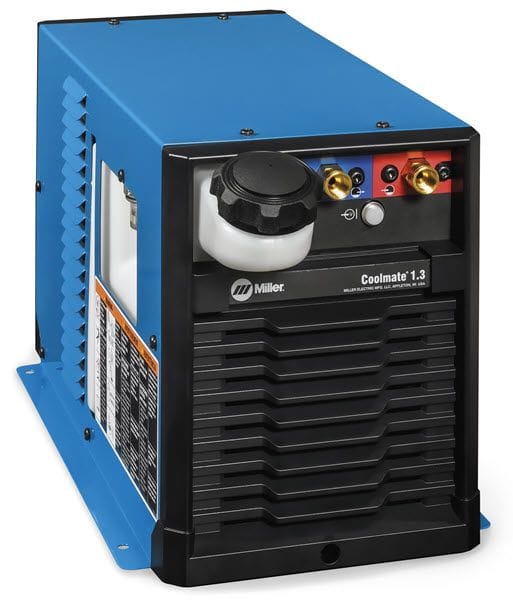

Miller Coolmate™ 1.3 Coolant System 301616

The Miller® Coolmate™ 1.3 is a light industrial 1.3 gallon capacity cooler designed for water-cooled TIG torches up to 280 amps. The Coolmate's design allows stacking and convenient mounting and is specifically designed for use with the Miller Maxstar® 210, Maxstar® 280, Dynasty® 210, Dynasty® 280 and Dynasty® 300 TIG welders.

Direct replacement for the 300972 Coolmate™ 1.3.

Applications
Light/Heavy Industrial Applications
Manufacturing
Aerospace
Automotive
Tube mills
Automation

Features
  • Closed-loop design with radiator
    Reduces coolant temperatures and prevents the system from overheating.
    Closed-loop design also recirculates the coolant through a fan-cooled heat exchanger.
  • Rustproof coolant reservoir
    Molded of poly ethylene for durability and corrosion resistance.
  • Standard inlet/outlet torch fittings
    Compatible with TIG and MIG torches having standard 5/8-inch 18 left-hand fittings.
  • 10-foot (3 m) power cord with plug
    Longer than most power cords in the industry providing the extra length when required.
  • Compatible with Miller® coolants
    Which are ideal for warm and cold weather conditions, while providing HF or corrosion protection.
  • Designed to integrate
    With Dynasty 210/280/300 and Maxstar 210/280 models
  • Compact horizontal design
    Allows stacking and convenient mounting
  • Weighs 46 pounds (21 kg) dry
  • Equipped with power-on indicator light
    Located on front panel
  • Filter and coolant filling spout are conveniently located
    For easy access
  • Fluid level sight window
  • Polyethylene-molded coolant tank and filler spout
    Are both rustproof
  • Factory-set pressure-relief valve (55 psi)
    Maintains consistent pressure during operation
  • Thermally protected 1/4 hp motor
    Guards against overheating
  • Efficient fin-and-tube heat exchanger
  • Brass-body positive-displacement rotary vane pump
    Provides consistent coolant flow and pressure rating with long pump-life expectancy



    Comes complete with
  • 115 volt input power cable and plug
  • CPS adapter for Dynasty and Maxstar TIG welders equipped with CPS (Cooler Power Supply)

    • Miller Low Conductivity Antifreeze/Coolant 043810

    Miller Low Conductivity Antifreeze/Coolant 043810 for MIG & TIG Welding

    4.8
    Rated 4.8 out of 5 stars
    13 Reviews
    $54.00
    Lowest Internet Price
    Mfg Industrial Price: $59.64
    $54.00
    You Save $5.64

    1 Gallon Plastic Bottle - Genuine Miller® low conductivity antifreeze/coolant for use in TIG and MIG welding applications.

    Miller Aluminum Protecting Antifreeze/Coolant 043809

    Miller Aluminum Protecting Antifreeze/Coolant 043809

    5.0
    Rated 5.0 out of 5 stars
    1 Review
    $54.00
    Lowest Internet Price
    Mfg Industrial Price: $59.64
    $54.00
    You Save $5.64

    1 Gallon Plastic Bottle - Genuine Miller® aluminum protecting antifreeze/coolant for use in aluminum push-pull MIG welding systems.

    3.0
    Rated 3.0 out of 5 stars
    Based on 1 review
    Total 5 star reviews: 0 Total 4 star reviews: 0 Total 3 star reviews: 1 Total 2 star reviews: 0 Total 1 star reviews: 0
    Write a Review (Opens in a new window)
    1 review
    • JH
      JOHN H.
      Verified Buyer
      Rated 3 out of 5 stars
      1 month ago
      Shipment

      Cooler works well as any Miller product does. Provides the proper cooling to torch CK-20. Unit has a tolerable sound level when in operation. Without measuring the decibel level, the comparison to my Dynasty 200dx when cooling fan comes on is about the same sound level.

      The reason for the low score is due to how the shipment arrived. The coolant tank lid was protruding through the wall of the cardboard box. When opening the box the unit had come lose from all its packing supports and apparently was bouncing lose around inside the cardboard container. Luckily the coolant tank has not shone to have a crack. (no leaks) Miller needs to improve the shipping container to prevent possible damage in the future. Shipping companies don't give a flip if you get a serviceable product as long as it got shipped.

      Could be a testament to the durability of Miller products however. The unit so far is working fine.
