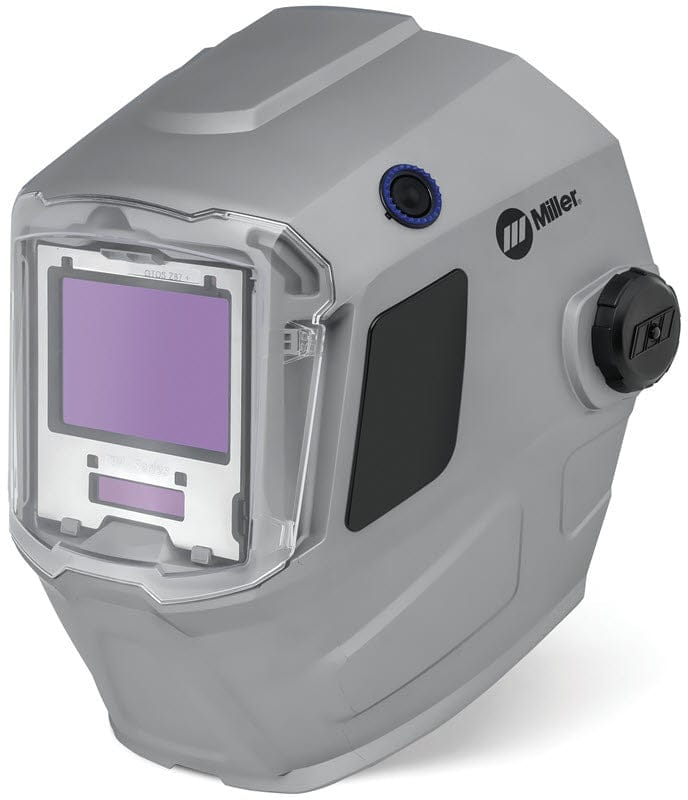

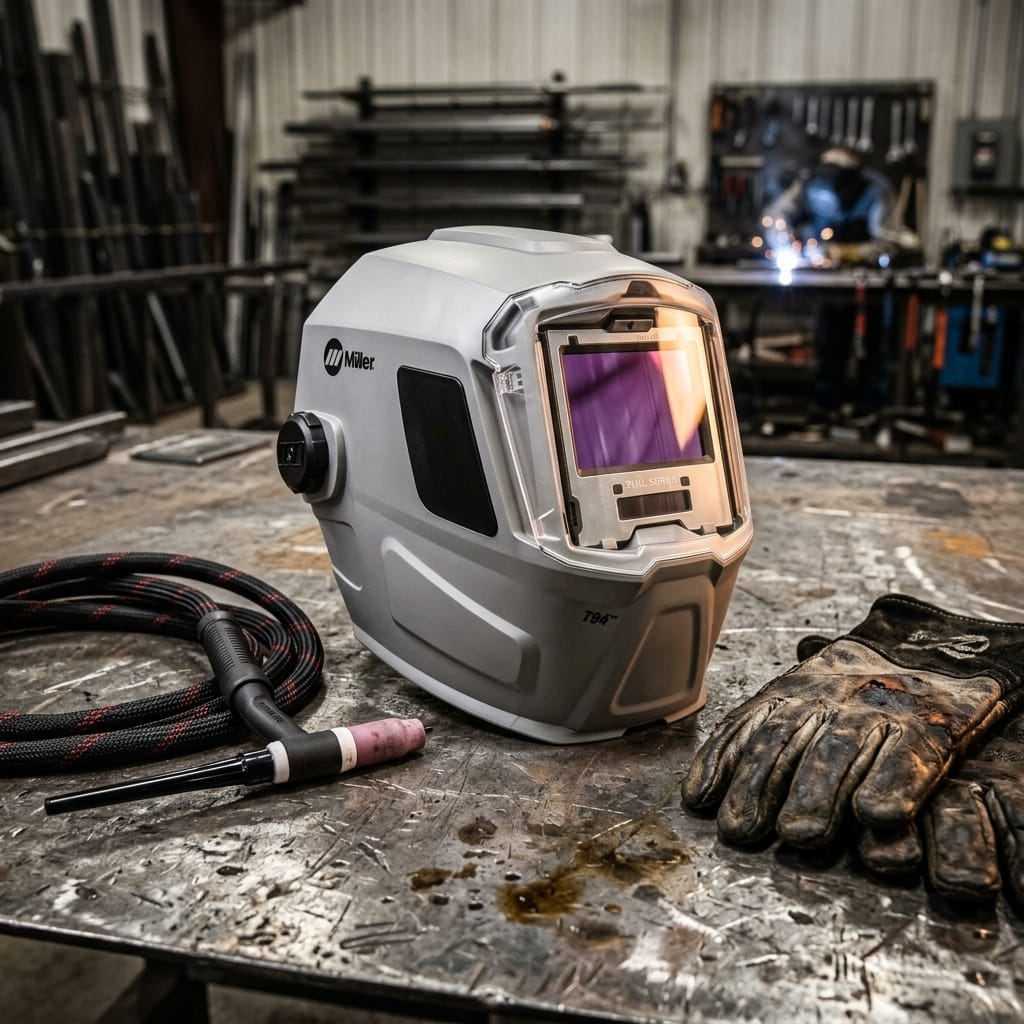

Miller® T94™ ClearLight™ 4x Auto-Darkening Welding Helmet 296791
Genuine Miller® T94™ welding helmet, with ClearLight™ 4x lens technology, features 9.0 square inches of viewing area and offers visual quality that is up to four times better than the minimum USA ANSI standard for 1/1/1/1 rated auto-darkening welding lenses. The stunningly clear views, in both light and dark states, are superior in quality and color to virtually every other auto-darkening lens in the world. High-definition optics and a bright shade 2.5 grind/light state allow you to view your work before, during and after welding - like never before.
The T94™ ClearLight™ 4x lens has four arc sensors and operates in weld, cut, grind and Miller's X-Mode™, which eliminates sunlight interference and low-amp lens flashing from obstructed arc sensors. It is rated for low amperage TIG welding down to 3 amps. Switching speed is a lightning fast 1/25,000 of a second. The Miller T94 ClearLight 4x auto darkening welding hood features shade 8-13 weld mode, shade 8-13 X-Mode™, shade 5-8 cut mode and shade 2.5 grind mode. It comes complete with Miller's Gen. 4 headgear, InfoTrack™ 2.0, external grind control, easy-to-use digital controls, shade 5.0 side windows and a four year True Blue® lens warranty.
Miller T94™ ClearLight 4x Welding Helmet Features
ClearLight™ 4x lens technology
Provides up to four times the visual quality of the minimum USA ANSI standard for 1/1/1/1 rated auto-darkening welding lenses. Advanced, high-definition optics and a shade 2.5 light state combine for a view that's clearer and brighter - before, during and after every weld.Aluminum Heat Shield
Protects the lens by reflecting the heat of higher amperage welding applications.
Quick-release one-piece cover lens with HDV
Simplifies lens changes, reducing downtime. HDV Technology provides a sharp detailed view at any angle with minimal distortion.
Digital Controls With Four Arc Sensors and Four Operating Modes -
Weld Mode™ Shades #8 - 13
Cut Mode™ Shades #5 - 8
Grind Mode - Light State Shade #2.5
X-Mode™ Shades #8 - 13
X-Mode™
Electromagnetic Arc Sensing for: Sunlight interference outdoors, Low-Amperage TIG, Pipe/Curves, Obstructed Sensors & Hidden/Cavity Welds
Memory Function
For ease of switching between two preset memory settings.
Half-shade settings
For precise lens adjustment.
InfoTrak™ 2.0
Exclusive arc tracking technology that monitors arc time and arc count for quoting and worker safety metrics.
External grind control
Allows for seamless transitions from welding to grinding.
Auto-on/off
Power control triggers lens at the strike of an arc.
Gen. 4 Headgear
Features ergonomic design that provides extensive adjustment settings, and enhanced support.
T94™ Specs
Comes complete with
5 HDV outside cover lenses
2 inside cover lenses
Helmet bag
Four year warranty
