Miller Shadow Adjustable Beam Anchor - Fits Flange 4" to 12" 8814-12

Miller® Shadow™ Adjustable Beam Anchor - Fits Flange 4" to 12" 8814-12

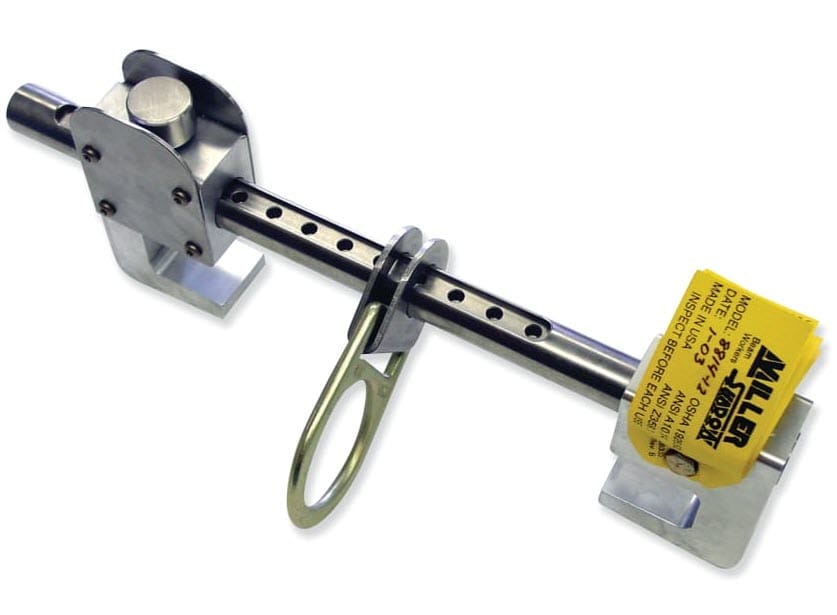

Genuine Miller® Fall Protection Shadow™ 8814-12 is an aluminum and stainless steel adjustable beam anchor that fits flange sizes from 4" to 12" and flange thickness up to 1 1/4". The Shadow adjustable beam anchor attaches horizontally to both "I" and "H" beams. Once attached, the beam anchor slides with your movement. It has a minimum tensile strength of 5,000 PSI and a maximum working load of 310 pounds. The heavy duty "D" ring for lanyard and SLR attachement is made of drop-forged steel and stainless steel. The entire assembly meets ASTM 50-hour salt spray test requirements.



Features

• STANDARDS
  Meets requirements OSHA 1926.502 and ANSI A10.14, Z359.1
• ADJUSTABLE BEAM ANCHORS
  Miller Shadow™ Adjustable Beam Anchors connect horizontally to a wide range of I and H beam flanges.
• Maximum Productivity
  The adjustable beam anchor slides smoothly the beam to provide the worker with effortless range of motion.
• Wide Range
  Connects horizontally to a wide range of beam langes from 4 inches to 24 inches wide and up to 1-1/4 inches thick.
• Quick-click adjustment
  That is easy to use and requires no loose pins.
• Stainless steel and aluminum construction
  For longer service life.
• Unique positive-locking engagement system
  For I-beam fall protection safety.
• Accommodates both snap-hooks and carabiners
  For ease of use.
