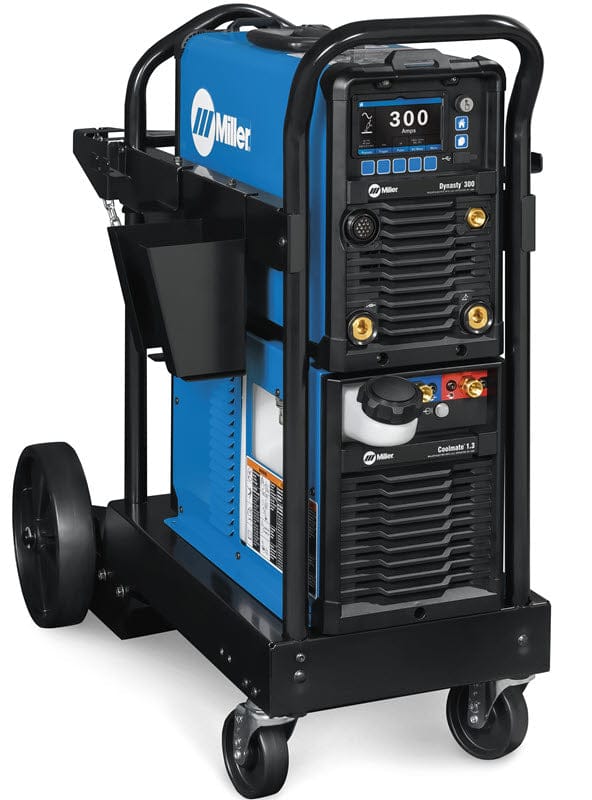

Miller® Dynasty® 300 TIGRunner® 907818002

The Miller® Dynasty® 300 TIGRunner® is an advanced 300 amp TIG welder package that comes complete with Coolmate™ 1.3 water cooler and Small Runner® cart. Adjustable TIG pulse can be set from 0.1 to 500 pulses per second (pps). AC TIG frequency adjustment has a range from 20-400 Hz. Extremely low amperage TIG output allows you to go down to as low as 2 amps on AC and 1 amp on DC. Wave forms are adjustable in both AC and DC pulsed TIG welding modes for a truly customized welding arc.

The Dynasty 300 welds material up to 3/8" thick. It can go just about anywhere and run on just about any input power, single-phase or three-phase. Auto-Line™ senses input voltage and phase and instantly adjusts the welder to the optimal operational settings without manual linking. The simplified user interface with large 4.5 inch LCD display helps ensure proper weld parameters for your job. The Pro-Set™ mode eliminates the guesswork from set up by automatically choosing the most common weld settings for your application.

When using a water-cooled TIG torch, the 300 utilizes Cooler-On-Demand™ technology to save energy and prolong the life of your optional TIG torch and Miller Coolmate™ 1.3 cooler. It also comes standard with CPS (Coolant Power Supply), an integrated 120V dedicated outlet for running your Coolmate water circulator.

IP23 rating This equipment is designed for outdoor use. It may be stored, but is not intended to be used outside during precipitation unless sheltered.

  • Pulsed TIG (GTAW-P)
  • Stick (SMAW)
  • Air carbon arc (CAC-A)

    Heavy fabrication
    Precision fabrication
    Aluminum ship repair
    Pipe and tube fabrication
    Anodized aluminum fabrication

  • Easy-to-understand interface with 4.5-inch LCD display
    Ensures proper machine setup and parameter selection
    Informative on-screen explanations and dynamic images enhance the parameter selection process
  • Full AC features
    Including advanced waveforms and wide ranges of balance and frequency.
  • Built-in pulser
    Reduces heat input; adds arc stability.
  • USB Front panel port
    Provides the ability to easily update software, back-up settings and transfer saved weld programs from one unit to the next.
  • Program memory
    Allows easy naming, saving and recalling of favorite weld settings.
    Deliver more productivity by eliminating the need to manually set the parameters
    Deliver consistent quality by welders of all skills
  • Locks and limits
    Provides control of weld parameter ranges minimizing deviation from the welding procedure specification (WPS).
  • Pro-Set™ feature (professional settings)
    Eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse, and DIG parameters.
  • Auto-Line™
    Provides state-of-the-art flexibility by automatically connecting to 208-575 VAC, single- or three- phase power without removing the covers to relink the power source. No longer is there a concern if you have the correct machine for the shop or the job site.
  • Cooler Power Supply (CPS).
    Integrated 120-volt dedicated-use receptacle to power the Coolmate™ 1.3. The power switch on the Dynasty also activates the receptacle to help prevent torch failure.
  • Lift-Arc™ TIG
    Arc starting provides x-ray clean welds without the use of high frequency.
  • Blue Lightning™ TIG
    High-frequency arc starter for non-contact arc initiation. Provides more consistent arc starts and greater reliability compared to traditional HF arc starters. Easy to set and increases productivity.
  • Cooler-On-Demand™
    Operates the auxiliary cooling system only when needed, reducing noise, energy use, and airborne contaminants pulled through the cooler.
  • Wireless remote compatible
    Fully compatible with Miller wireless remote control solutions
  • IP23 rating -
    This equipment is designed for outdoor use. It may be stored, but is not intended to be used outside during precipitation unless sheltered.

    AC TIG Features
  • AC Pulsed TIG (0.1 to 500 pps)
    Controls the amount of heat going into the weld to minimize warping or distortion, especially on thin material.
  • AC Balance (30-99%)
    Controls the amount of oxide cleaning (amperage time in EN) which is essential for high quality welds on aluminum.
  • AC frequency (20-400 hz)
    Controls the width of the arc cone and the force of the arc.
  • Advanced AC Waveforms

    DC TIG Features
  • DC Pulsed TIG (0.1 to 500 pps)
    Controls the amount of heat going into the weld to minimize warping or distortion, especially on thin material
  • Exceptionally smooth and precise arc
    For welding exotic materials.
  • Pulse Waveforms
    Square provides a fast freezing puddle for ultimate arc control.
    Sine produces a reduced audible sound and provides a more fluid puddle that is good for overlaying applications.
    Triangular provides a quick-forming puddle while further reducing heat for thin materials.

    Stick Features (AC/DC)
  • Tailored arc control (DIG)
    Allows the arc characteristic to be changed for specific applications and electrodes.
    Smooth running 7018 or stiffer, more penetrating 6010.
  • Hot Start™
    Adaptive control provides positive arc starts without sticking.
  • AC frequency control
    Adds stability for smoother welds when AC Stick welding.
  • Stick-Stuck
    Detects if the electrode is stuck to the part and turns the welding output off to safely and easily remove the electrode.

    Comes complete with
  • Dynasty® 300 TIG Welder with CPS (Cooler Power Supply)
  • Adjustable shoulder strap
  • 8 ft (2.4 m) primary cord
  • Coolmate™ 1.3 water cooler
  • Small Runner® cart
  • FREE Miller® T94i™ ClearLight™ 2.0 auto-darkening welding helmet
  • Miller Protective Cover - Maxstar/Dynasty 210/280/300 301382
