Optrel® e3000x PAPR With Sphere X CLT Black Welding Helmet 4530.055
The Optrel® e3000x PAPR (Powered Air Purifying Respirator) with Sphere X CLT Black Fresh Air welding helmet filters 99.8% of welding particulates, smoke, aerosols and dust to create a cleaner, healthier work environment under the hood. The e3000x HEPA filter carries a TH3 rating, which means you are getting the highest class of protection available in a PAPR system. The blower unit itself weighs less than 3.5 pounds and comes complete with lithium ion battery that provides up to 18 hours of operation between charges.
Certified to the highest level of respiratory protection in its class, TH3 (HEPA), the e3000X filters and removes 99.8% of harmful solid and liquid airborne particles to deliver clean, filtered breathing air. With the e3000X PAPR system, you complement your optrel PAPR welding helmet with a respiratory protection system, which makes no compromises in matters of safety, health and comfort. Compared to the best in class filter mask (class FFP3), this increases the safety of the user by a factor of ten or even by a factor of 40 when using FFP2 masks.

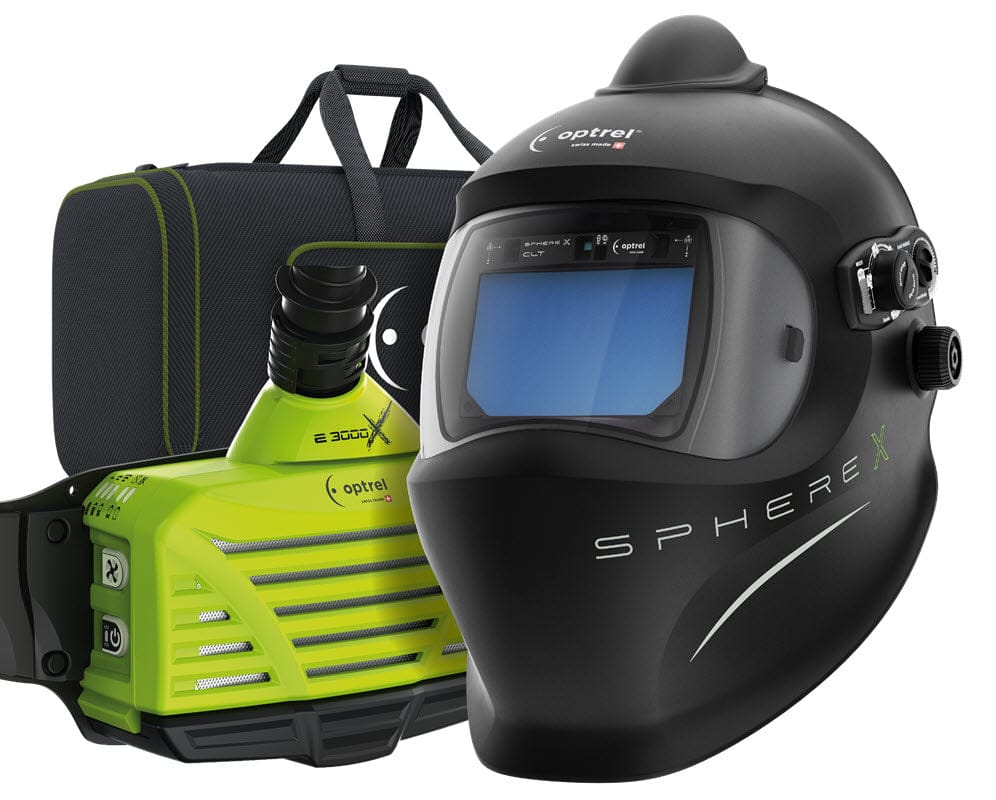

Complete system comes with e3000x blower motor with hose, TH3 HEPA filter, pre-filter, spark arrestor, battery with charger, belt, and Sphere X CLT welding helmet with face seal.
Features
NIOSH approved
The highest class of protection (TH3/HEPA) from respirable particles (smoke, aerosol, and dust), including Hexavalent Chromium, most commonly present during welding operations.
Up to 18 hours of operation with included lithium ion battery.
Breathing air becomes cleaner by a factor of up to 500.
Even air distribution in the fresh air helmet.
Automatic air flow control.
Additional cooling effect for keeping a cool head about you.

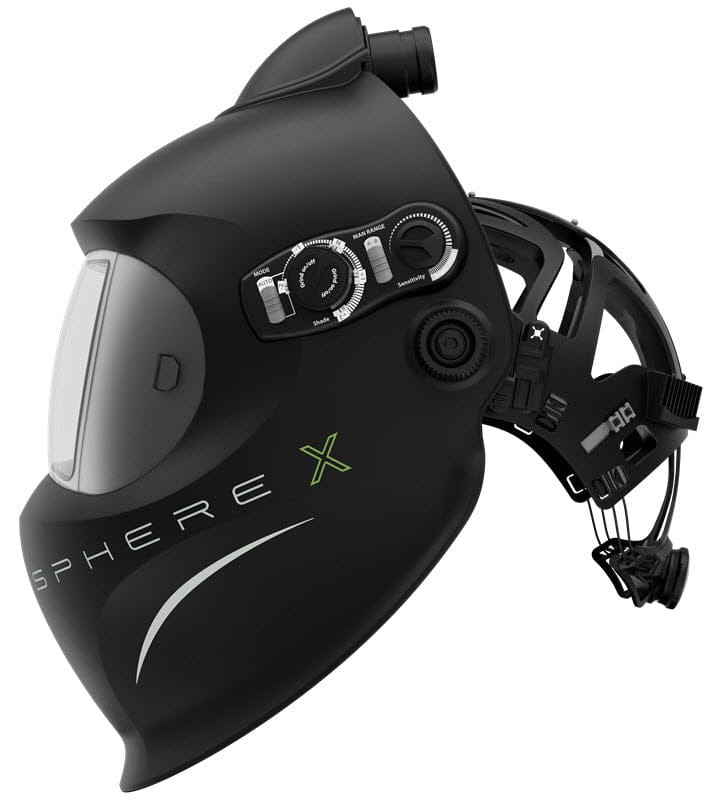

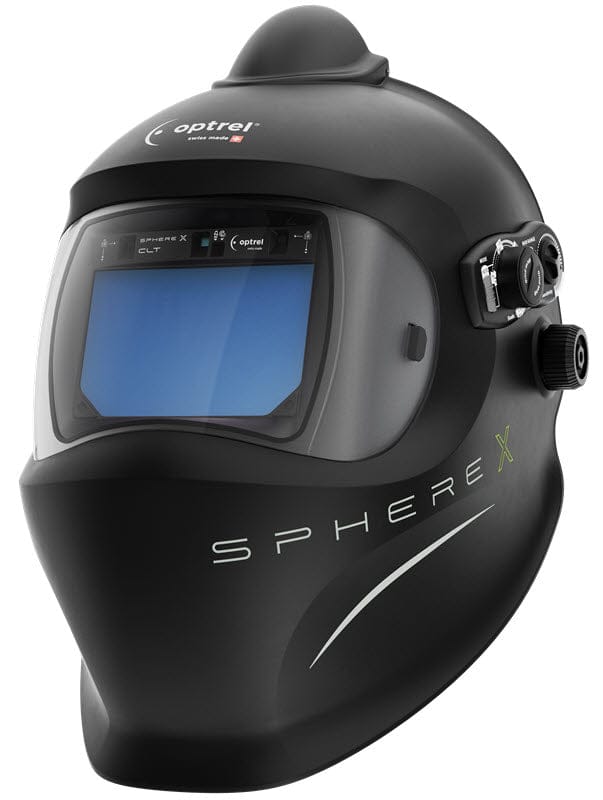

The Optrel® Sphere X CLT Black auto-darkening welding hood features Crystal shade 2.0 light state that is unmatched in the world for color and clarity, and provides over 30% more viewing area than previous Crystal 2.0 welding hood models. The Sphere X has advanced features like SHADETRONIC®, which automatically adjusts the shade level between shades 5 to 12, based on the brightness of the arc - and True Color, which allows for realistic color perception in light or dark states.
All Sphere X welding helmets come with the revolutionary IsoFit® headgear. IsoFit is the only welding headgear in the world that wraps the entire crown of the head with multiple touch points to provide a custom fit like never before. Independent "three dimensional" size, width and height adjustments ensure all day comfort with a secure hold. The Isofit's Position Locker keeps your Sphere X welding hood securely in place, whether in the up or down position.
The Sphere X CLT has five arc sensors, for the ultimate in welding arc detection. It scores a perfect 1 rating for optical class, scattered light and homogeneity. The Sphere X CLT has external controls to switch quickly and easily from weld to grind mode and back again. Delay and sensitivity can also be controlled using the external knobs.
Features
Over 30% Larger Field of Vision
A full 10.2 square inches of viewing area. This larger view is combined with Crystal Lens Technology (CLT)
for a perfect viewing experience in every situation.
CRYSTAL LENS TECHNOLOGY 2.0
Shade 2.0 light state provides the brightest view of your working environment available anywhere. The natural color and clear optics supplied by CLT increases both safety and efficiency in the workplace.
SHADETRONIC®
Detection of the arc brightness and fully automated shade level adjustment from 5 to 12. Adjusts automatically to the changing light conditions of the current welding method. A sophisticated SHADETRONIC® sensor continuously measures the light intensity of the welding arc and regulates the glare protection progressively and fully automatically. Shade adjustments can also be made manually between shades 4-8 and 8-12.
FADETRONIC
Patented Optrel FadeTronic technology gradually lightens the auto darkening filter after the welding arc is extinguished. The unpleasant afterglow is faded out especially for high amperage applications. Eye fatigue is significantly reduced, enhancing worker safety. FADETRONIC can be adjusted for a custom user experience.
TRUE COLOR
A specially developed UV/IR filter allows the realistic color perception typical of Optrel®, bringing color to the welder's world. TRUE COLOR passes more colors of the spectrum through compared to standard "green" spectrum welding lenses.
Intelligent sensor control with five arc sensors.
Sophisticated software and clever positioning of four arc sensors at the corners and one sensor in the upper center ensures the lens is switched on and off perfectly, even in the most difficult lighting conditions or in awkward positions.
IsoFit® headgear sets a new standard of wearing comfort. It is the only product worldwide that can be adjusted in width, length and height i.e. three-dimensionally to any head shape, so that the helmet really fits "like a glove."
Sensitivity Adjustment
Allows operator to change lens switching sensitivity for varying ambient light conditions or outdoor welding in sunlight.
Grinding Mode
External grind control allows user to switch between welding mode and shade 2 grinding mode quickly and easily.
The smoke-repellent helmet shell design
Protects your health even better against harmful
substances and always gives you a clear view. For higher quality work with fewer errors.
Comes complete with
Helmet bag
2+1 warranty
