Smith B Acetylene Regulator 30-15-520

Smith® B Acetylene Regulator 30-15-520

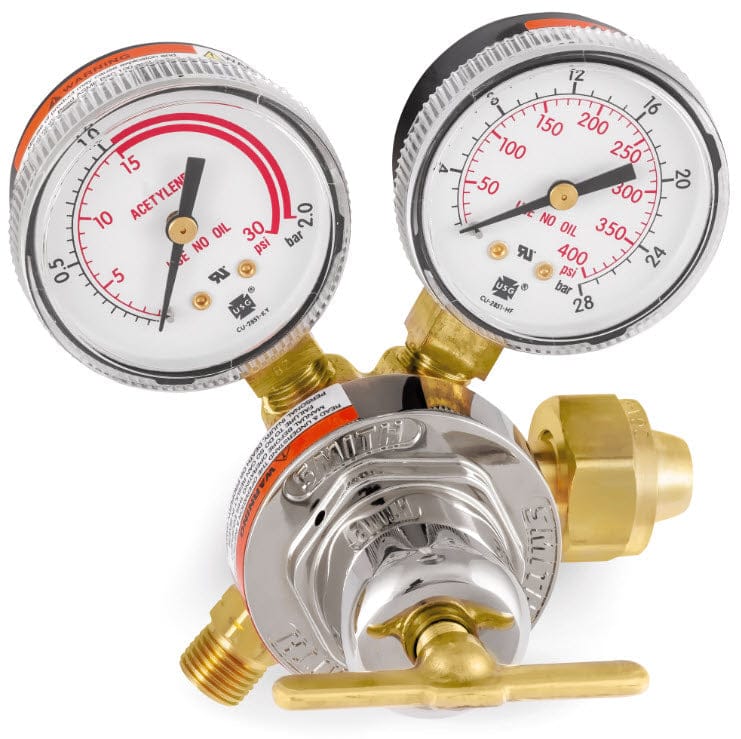

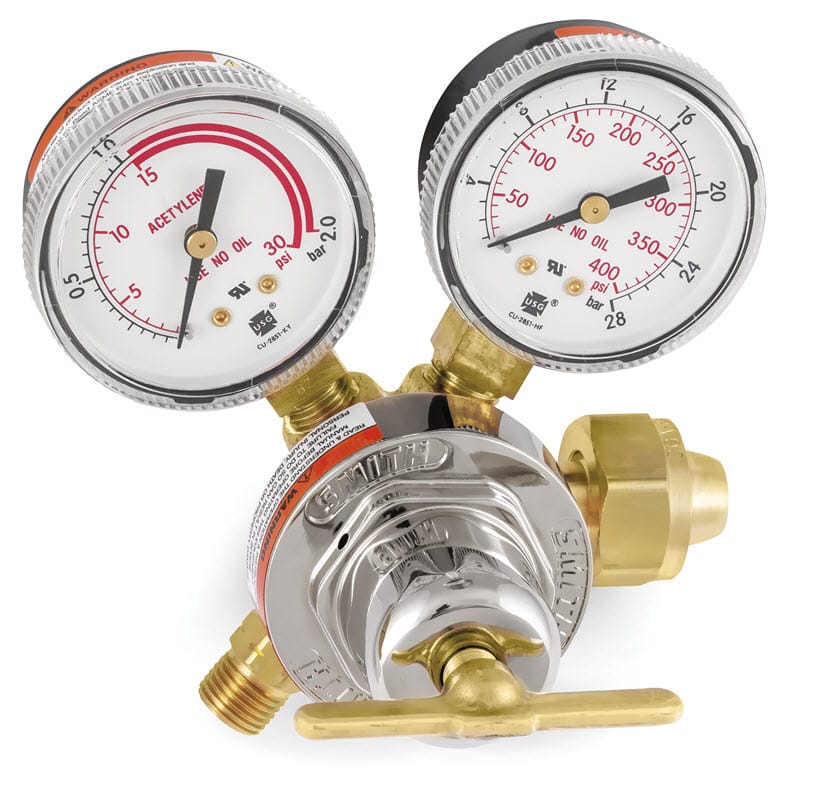

Smith® 30-15-520 Acetylene Regulator is specifically designed to fit a B (40 cubic ft.) acetylene tank. It has a 15 PSIG max outlet pressure and is ideal for plumbing and HVAC soldering or brazing applications. It is also suitable for jewelry manufacture and repair where acetylene is being used as the fuel gas.

Like all Smith 30 series regulators, the 30-15-520 is a rugged, medium duty, single stage acetylene regulator that features a nickel-plated bonnet, shatter resistant 2 inch gauges and Sure Seat™ filtered seat. It comes with Smith's True Blue™ 3 year warranty. Made in USA



Features

Sure-Seat™ filtered high-pressure seat assembly extends regulator life by preventing contamination from entering the seating area.

Neoprene Composite Diaphragm - Highly durable neoprene composite diaphragm offers precise adjustment of outlet pressure and extended service life.

Color-Coded Labels - Identifies supply performance capabilities, easy gas service identification and technical information.

Nickel-Plated Bonnet - The nickel-plated bonnet, along with brass body, protects against corrosion.

Shatter-Resistant Gauge Lenses - 2.0 inch corrosion-resistant polished brass gauges with shatter-resistant polycarbonate lenses.

External Relief Valve - Protects regulator from damage do to inadvertent high-pressure surge. Relief valve will release excessive pressure and automatically reset.
