Smith Oxygen Heavy-Duty Station Regulator 46-175

Smith™ Oxygen Heavy-Duty Station Regulator 46-175

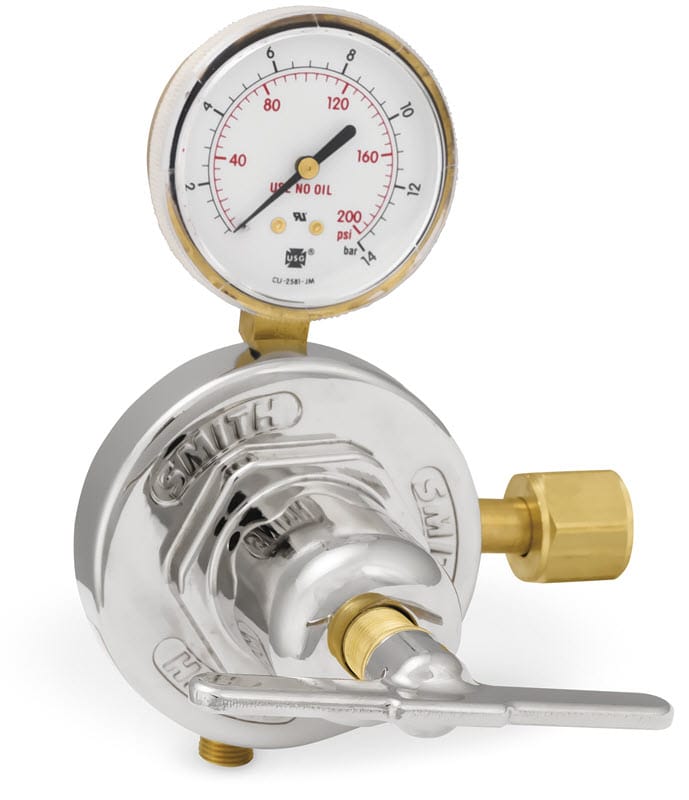

Genuine Smith™ 46-175 is a heavy-duty oxygen station regulator that provides high gas flows at up to 175 PSIG maximum delivery pressure. The CGA 024 inlet has 7/8"-14 RH thread connection and is intended for pipeline installations. Smith 46 Series station regulators are designed for high-flow applications. Their stainless steel diaphragm allows for use with gaseous or liquid oxygen.

The 46-175 oxygen station regulator features rugged brass construction and a single 2.5 inch outlet pressure gauge. It comes complete with Smith's 3 year regulator warranty.



Features

External Relief Valve
Protects regulator from damage due to inadvertent high pressure surge.

Stainless Steel Diaphragm
Resists damage and freeze-up if used with liquid gases for extended service life.

Die-Cast "T" Bar Adjusting Screw
Provides comfort and durability.

Delrin™ Bonnet Insert
Allows smooth, easy adjustment even at high pressure levels.

Nickel Plated Bonnet
Along with brass body, protect against corrosion.

Dual Filters Including Sure Seat™
Protects high pressure seat from debris for reliable operation and long service life.

Shatter Resistant Gauge Lens -
2-1/2" Brass gauge with Polycarbonate lenses resists damage and corrosion.

Specs
