Smith Welding & Cutting Outfit - Heavy Duty HBA-40300

5.0
Rated 5.0 out of 5 stars
2 Reviews

Code: HBA-40300

1 1

Cyberweld Price $784.95
Cyberweld Price $784.95
Mfg Industrial Price: $1,667.96
(You Save $883.01)

This item qualifies for free standard shipping.
Earn 785 rewards points for this item!  (Start Earning Rewards!)

Acetylene Inlet:CGA 300 (Female)

-
+
FAST & FREE SHIPPING On All Orders Over $99


Smith® Welding & Cutting Outfit - Heavy Duty HBA-40300

The Smith® HBA-40300 welding and cutting kit is a premium heavy duty torch outfit featuring Smith's proven in-tip gas mixing technology. This greatly improves operator safety and increases torch life.Regulators, cutting attachment and torch handle are covered by Smith's True Blue® 3 year warranty. The Smith® 40 series heavy duty brass regulators have large 2.5 inch gauges.

Outfits are complete with safety and operations manual. All outfits include 2 cutting tips, welding tip, heating tip, tip cleaner.

Applications
HEAVY DUTY CUTTING, WELDING & HEATING OUTFIT CUTS UP TO 8 inches (203mm) WELDS UP TO 1/2 inch (13mm) (With optional tips)



Features
  • Graf-Tite soft seats - Resilient Graf-Tite seat material protects tip seating areas from nicking to maintain positive seating. Requires less replacement than metal-to-metal seat designs. Compressible soft seats are practically indestructible and withstand extremely high temperatures, resulting in longer tip life.
  • In-tip mix - Each tip is a precision engineered mixer for combining preheat oxygen and fuel gas to attain maximum efficiency. Adds resistance to flashback.
  • Slip-in tip design just hand tighten After the first tightening with a wrench, only hand tightening is required to seat the tip, saving time when changing tips. Quick and easy tip changes encourage use of right tip for the job.
  • Removable high-pressure seat - Allows cleaning from back of tip.
  • Three-tube construction - Gases are kept separated, eliminating mixing tube burnout. Our thick-wall, high-capacity stainless steel tubes provide high gas flow and superior strength.
  • Ease-on oxygen cutting valve - Allows smooth piercing and keyhole free starts and restarts.
  • Triple o-ring seal - Provides positive gas seal, and allows rotation.
  • Internal threads - Threads are protected from damage if the torch is dropped, eliminating costly torch repair, replacement or downtime.
  • Double-tube handle - Tube-within-a-tube design provides strength while reducing weight. Internal tube is silver brazed for extra protection, strength and leak resistance.
  • Adjustable valve resistance - Special PTFE packing provides a gas-tight seal while allowing the drag to be adjusted to the individual preference.
  • Stainless steel ball-style valves - Corrosion-resistant balls and brass seating surfaces provide gall resistance and positive, chatter-free seating.
  • Replaceable hose connections - Hose connections are easily replaced if damaged.

    Specs





    Comes complete with:
  • 40 Series heavy duty oxy/acetylene regulators
  • WH200A heavy duty torch handle
  • SC209 heavy duty cutting attachment
  • 1 each SC12-1 & SC12-2 cutting tips
  • SW205 welding tip
  • ST602 heating tip
  • 25-ft. (7.6 m) 1/4-in. (6 mm) grade R twin hose
  • Spark lighter
  • Safety glasses
  • Tip cleaner
  • H743 torch-mount flashback arrestors
  • Operations manual

    Know your acetylene inlet
  • If your tank valve has male threads, you should choose this CGA 300 (female) torch kit. Note: will not fit "B" or "MC" acetylene cylinder.

    • Smith Circle Cutting Guide 16229

    Smith Circle Cutting Guide 16229

    $133.75
    Lowest Internet Price
    Mfg Industrial Price: $152.81
    $133.75
    You Save $19.06

    Smith® Circle Cutting Guide - Universal circle cutting guide fits all major brands of oxy/fuel cutting torches/cutting attachments.

    Smith "Hard Hat" Gauge Guard - Heavy Duty HB190

    Smith "Hard Hat" Gauge Guard - Heavy Duty HB190

    $56.20
    Lowest Internet Price
    Mfg Industrial Price: $112.32
    $56.20
    You Save $56.12

    Smith® "Hard Hat" Gauge Guard - Heavy Duty HB190

    Atlas Cylinder Wrench - 10 Way W1013

    Atlas Cylinder Wrench - 10 Way W1013

    3.3
    Rated 3.3 out of 5 stars
    4 Reviews
    $6.25
    Lowest Internet Price
    Mfg Industrial Price: $6.92
    $6.25
    You Save $0.67

    Atlas Cylinder Wrench - 10 Way W1013

    Smith Flashback Arrestor (set) - Torch Mount H743

    Smith Flashback Arrestor (set) - Torch Mount H743

    5.0
    Rated 5.0 out of 5 stars
    3 Reviews
    $72.60
    Lowest Internet Price
    Mfg Industrial Price: $116.09
    $72.60
    You Save $43.49

    Smith® Torch Mount H743 Flashback Arrestor set consists of one oxygen and one fuel gas flashback arrestor.

    Smith Flashback Arrestor (set) - Regulator Mount H753

    Smith Flashback Arrestor (set) - Regulator Mount H753

    4.6
    Rated 4.6 out of 5 stars
    8 Reviews
    $72.60
    Lowest Internet Price
    Mfg Industrial Price: $116.09
    $72.60
    You Save $43.49

    Smith® Flashback Arrestor (set) - Regulator Mount H753

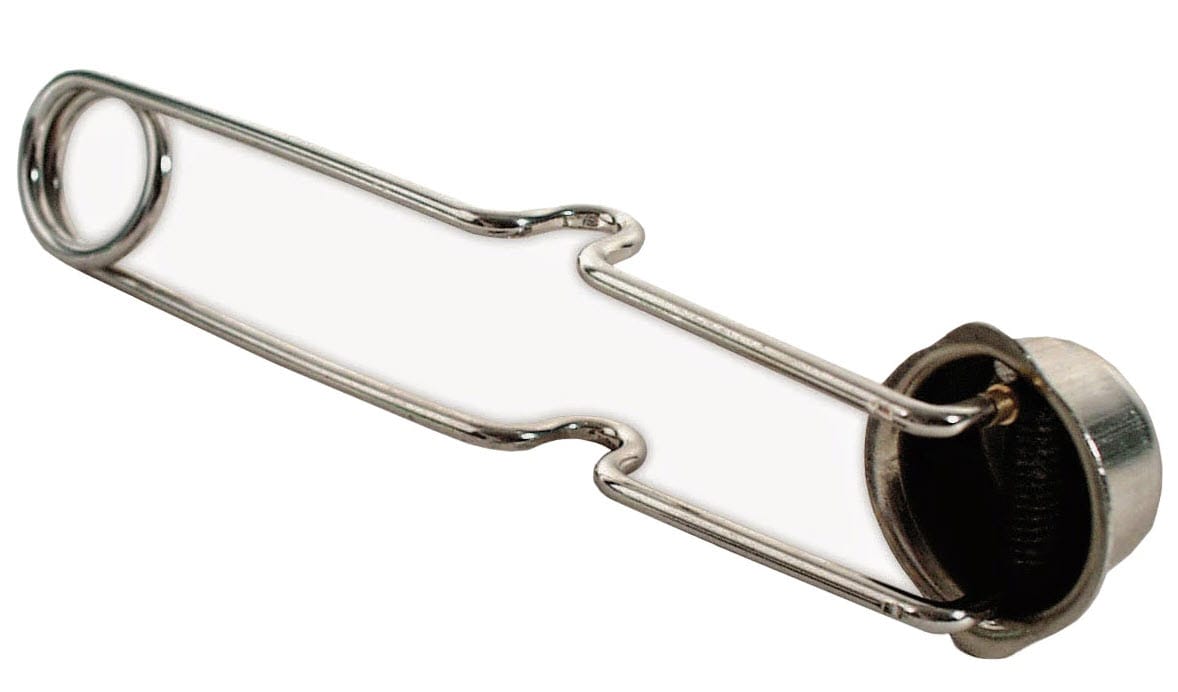

    Hobart Single Flint Striker 770080

    Hobart Single Flint Striker 770080

    3.0
    Rated 3.0 out of 5 stars
    2 Reviews
    $2.20
    Lowest Internet Price
    Mfg Industrial Price: $3.05
    $2.20
    You Save $0.85

    Hobart® single flint torch lighter delivers a good spark on demand and features high tensile wire frame, nickel-plated hood and rotating cylindrical file.

    Smith Cutting Tip SC12 Series (Acetylene) - SC12-0

    Smith Cutting Tip SC12 Series (Acetylene) - SC12-0

    $18.80
    Lowest Internet Price
    Mfg Industrial Price: $37.58
    $18.80
    You Save $18.78

    Genuine Smith® SC12 series replacement cutting tip, size 0.

    Smith Cutting Tip SC12 Series (Acetylene) - SC12-1

    Smith Cutting Tip SC12 Series (Acetylene) - SC12-1

    $18.80
    Lowest Internet Price
    Mfg Industrial Price: $37.58
    $18.80
    You Save $18.78

    Genuine Smith® SC12 series replacement cutting tip, size 1.

    Smith Cutting Tip SC12 Series (Acetylene) - SC12-2

    Smith Cutting Tip SC12 Series (Acetylene) - SC12-2

    $18.80
    Lowest Internet Price
    Mfg Industrial Price: $37.58
    $18.80
    You Save $18.78

    Genuine Smith® SC12 series replacement cutting tip, size 2.

    Smith Cutting Tip SC12 Series (Acetylene) - SC12-3

    Smith Cutting Tip SC12 Series (Acetylene) - SC12-3

    $18.80
    Lowest Internet Price
    Mfg Industrial Price: $37.58
    $18.80
    You Save $18.78

    Genuine Smith® SC12 series replacement cutting tip, size 3.

    Smith Cutting Tip SC12 Series (Acetylene) - SC12-4

    Smith Cutting Tip SC12 Series (Acetylene) - SC12-4

    $18.80
    Lowest Internet Price
    Mfg Industrial Price: $37.58
    $18.80
    You Save $18.78

    Genuine Smith® SC12 series replacement cutting tip, size 4.

    Smith Welding - SW Series (Acetylene) SW205

    Smith Welding - SW Series (Acetylene) SW205

    $58.85
    Lowest Internet Price
    Mfg Industrial Price: $117.65
    $58.85
    You Save $58.80

    Genuine Smith® Welding Tip - SW Series (Acetylene), size SW205, for use with SW1, SW2 and WH200 torch handles.

    Smith Welding - SW Series (Acetylene) SW207

    Smith Welding - SW Series (Acetylene) SW207

    $63.99
    Lowest Internet Price
    Mfg Industrial Price: $127.94
    $63.99
    You Save $63.95

    Genuine Smith® Welding Tip - SW Series (Acetylene), size SW207, for use with SW1, SW2 and WH200 torch handles.

    Smith Heating Tip - ST Series (Acetylene) ST602

    Smith Heating Tip - ST Series (Acetylene) ST602

    5.0
    Rated 5.0 out of 5 stars
    3 Reviews
    $105.75
    Lowest Internet Price
    Mfg Industrial Price: $211.42
    $105.75
    You Save $105.67

    Smith's® ST Series, multi-flame heating tip, size ST602, is suitable for use with Smith WH200, SW1A and SW1B torch handles.

    Smith Heating Tip - ST Series (Acetylene) ST603

    Smith Heating Tip - ST Series (Acetylene) ST603

    $105.75
    Lowest Internet Price
    Mfg Industrial Price: $211.42
    $105.75
    You Save $105.67

    Smith's® ST Series, multi-flame heating tip, size ST603, is suitable for use with Smith WH200, SW1A and SW1B torch handles.

    Smith Heating Tip - ST Series (Acetylene) ST605

    Smith Heating Tip - ST Series (Acetylene) ST605

    $123.60
    Lowest Internet Price
    Mfg Industrial Price: $247.12
    $123.60
    You Save $123.52

    Smith's® ST Series, multi-flame heating tip, size ST605, is suitable for use with Smith WH200, SW1A and SW1B torch handles.

    5.0
    Rated 5.0 out of 5 stars
    Based on 2 reviews
    Total 5 star reviews: 2 Total 4 star reviews: 0 Total 3 star reviews: 0 Total 2 star reviews: 0 Total 1 star reviews: 0
    Write a Review (Opens in a new window)
    2 reviews
    • T
      tim
      Verified Buyer
      I recommend this product
      Rated 5 out of 5 stars
      6 years ago
      pleased

      Good quality, clear gauges, does what it's supposed to. Heavy torch, but balanced in the hand. Can just cut 9" joist the long way from a single bottle with the big tip.

      Was this helpful?
    • G
      Greg
      Verified Buyer
      I recommend this product
      Rated 5 out of 5 stars
      9 years ago
      Excellent Setup

      This Smith oxygen/acetylene torch setup is truly a winner. I mess with all types of torches in my field and this one honestly takes the cake. The torch by itself is a bit on the heavy side but for a heavy duty combination torch it should be expected. As far as usability goes i have no complaints. The dual oxygen adjustment helps you control your oxygen outlet with precision. I can't stress enough how important having this feature is. With the flashback arrestors it comes with and that you have a very safe piece of equipment. My favorite part of this setup is the Regulators. They are extremely robust and have the highest control rate over your gas flow i have seen so far in any regulator i've used. I recommend this setup for the professional cause of the control and cutting power but also recommend this outfit to beginners because it is so safe to use.

      Was this helpful?
    Reviews LoadedReviews Added
