Smith Propane Cutting and Heating Outfit MBA-30510LP

Code: MBA-30510LP

1 1

Cyberweld Price $673.00
Cyberweld Price $673.00
Mfg Industrial Price: $1,370.24
(You Save $697.24)

This item qualifies for free standard shipping.
Earn 673 rewards points for this item!  (Start Earning Rewards!)
-
+
prop65 warning icon CA Warning
WARNING: Cancer and Reproductive Harm - P65Warnings.ca.gov
FAST & FREE SHIPPING On All Orders Over $99

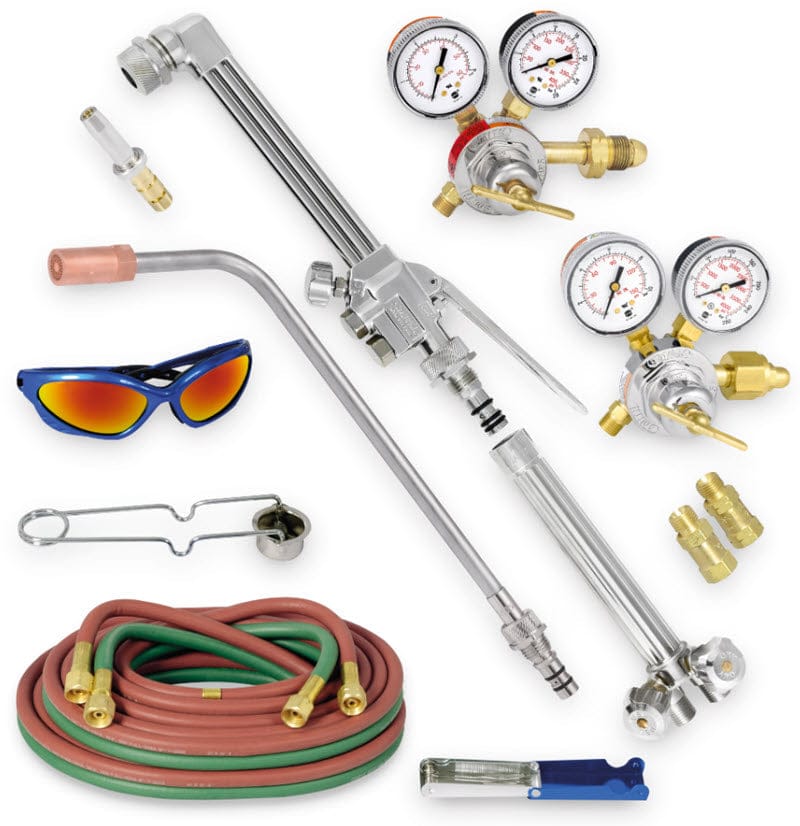

Smith™ Propane Cutting and Heating Outfit MBA-30510LP

Genuine Smith™ MBA-30510LP cutting and heating outfit is a medium duty oxy/fuel kit that uses propane (LP) as the fuel gas. It comes complete with MC40-1 propane cutting tip and MT-805 "rosebud" heating tip.

The MBA-30510LP oxy/propane torch kit comes with Smith's proven in-tip gas mixing technology, which helps eliminate flash backs increases torch life. The outfit features rugged, highly accurate 30 series regulators. Outfit comes complete with safety and operations manual.

Covered by Smith's 25-year warranty on torch handle and cutting attachment. Regulators are covered by a 3-year warranty. NOTE: Use of tips not manufactured by Smith or repairs made with other than genuine Smith parts will void the warranty.



Features
  • Graf-Tite™ soft seats - Resilient Graf-Tite™ seat material protects tip seating areas from nicking to maintain positive seating. Requires less replacement than metal-to-metal seat designs. Compressible soft seats are practically indestructible and withstand extremely high temperatures, resulting in longer tip life.
  • In-tip mix - Each tip is a precision engineered mixer for combining preheat oxygen and fuel gas to attain maximum efficiency. Adds resistance to flashback.
  • Slip-in tip design - just hand tighten After the first tightening with a wrench, only hand tightening is required to seat the tip, saving time when changing tips. Quick and easy tip changes encourage use of right tip for the job.
  • Removable high-pressure seat - Allows cleaning from back of tip.
  • Three-tube construction - Gases are kept separated, eliminating mixing tube burnout. Our thick-wall, high-capacity stainless steel tubes provide high gas flow and superior strength.
  • Ease-on oxygen cutting valve - Allows smooth piercing and keyhole free starts and restarts.
  • Triple o-ring seal - Provides positive gas seal, and allows rotation.
  • Internal threads - Threads are protected from damage if the torch is dropped, eliminating costly torch repair, replacement or downtime.
  • Double-tube handle - Tube-within-a-tube design provides strength while reducing weight. Internal tube is silver brazed for extra protection, strength and leak resistance.
  • Adjustable valve resistance - Special PTFE packing provides a gas-tight seal while allowing the drag to be adjusted to the individual preference.
  • Stainless steel ball-style valves - Corrosion-resistant balls and brass seating surfaces provide gall resistance and positive, chatter-free seating.
  • Replaceable hose connections - Hose connections are easily replaced if damaged.





    • Comes complete with
  • Torch handle (WH100)
  • Cutting attachment (MC509)
  • Oxygen Regulator(30-100-540)
  • LPG Regulator (30-50-510)
  • Cutting Tip (MC40-1)
  • Heating Tip (MT805)
  • 20-ft 1/4" Twin Hose
  • Friction Lighter
  • Safety Glasses
  • Tip cleaner
  • Regulator Mount Check Valves
  • Operations Manual

    • Specs Download
    Download MBA Series Torch Outfit Specs
    Smith Circle Cutting Guide 16229

    Smith Circle Cutting Guide 16229

    $151.10
    Lowest Internet Price
    Mfg Industrial Price: $166.22
    $151.10
    You Save $15.12

    Smith® Circle Cutting Guide - Universal circle cutting guide fits all major brands of oxy/fuel cutting torches/cutting attachments.

    Atlas Cylinder Wrench - 10 Way W1013

    Atlas Cylinder Wrench - 10 Way W1013

    3.3
    Rated 3.3 out of 5 stars
    4 Reviews
    $7.65
    Lowest Internet Price
    Mfg Industrial Price: $8.67
    $7.65
    You Save $1.02

    Atlas Cylinder Wrench - 10 Way W1013

    Smith Flashback Arrestor (set) - Torch Mount H743

    Smith Flashback Arrestor (set) - Torch Mount H743

    5.0
    Rated 5.0 out of 5 stars
    4 Reviews
    $82.00
    Lowest Internet Price
    Mfg Industrial Price: $126.28
    $82.00
    You Save $44.28

    1 Set - Genuine Smith™ Torch Mount H743 Flashback Arrestor set consists of one oxygen and one fuel gas flashback arrestor/check-valve.

    Smith Flashback Arrestor (set) - Regulator Mount H753

    Smith Flashback Arrestor (set) - Regulator Mount H753

    4.6
    Rated 4.6 out of 5 stars
    8 Reviews
    $82.00
    Lowest Internet Price
    Mfg Industrial Price: $126.28
    $82.00
    You Save $44.28

    1 Set - Genuine Smith™ Regulator Mount H753 Flashback Arrestor set consists of one oxygen and one fuel gas flashback arrestor/check-valve.

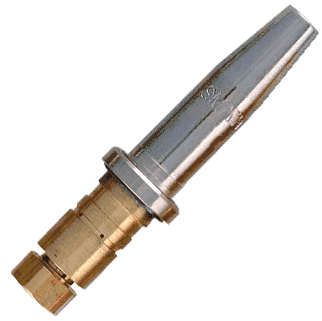

    Smith Cutting Tip MC40 Series (Propane) - MC40-1
