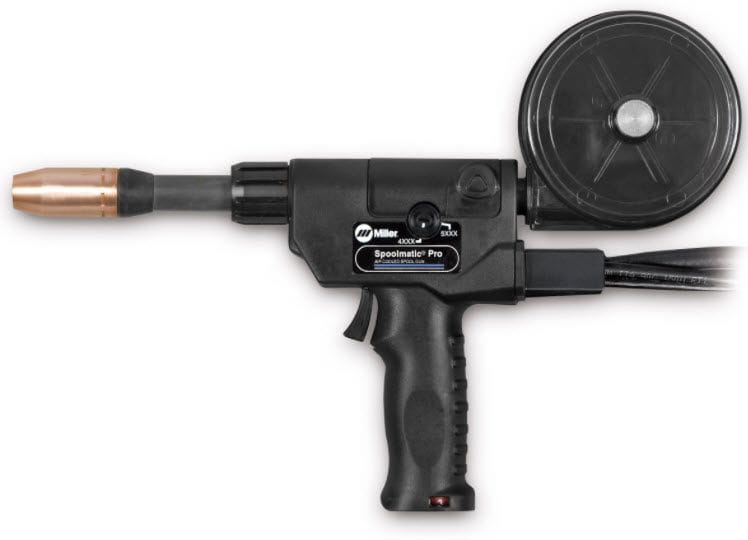

Miller® Spoolmatic® Pro 30A Spoolgun 301148

The Miller® Spoolmatic® Pro 30A Spoolgun is an enhanced version of the industry-standard Miller Spoolmatic 30A. The Spoolmatic Pro is a 200 amp, 100% duty cycle MIG spoolgun that is ideal for feeding one pound spools of aluminum or two pound spools of steel, stainless steel or silicon bronze MIG welding wire.

The Spoolmatic Pro 30A features improved motor drive design and has individual wire tension settings for both 4000 and 5000 series aluminum MIG wires. It also comes with a rotatable toolless head tube that can be easily changed out for any of a new offering of Miller head tube designs to fit special welding applications



Process
  • MIG welding (GMAW) with Aluminum and other soft alloy wires
  • Pulsed MIG (GMAW-P) with pulsing power source

    Applications
    Heavy industrial applications
    Emergency Vehicles
    Recreational Vehicles
    Trucks and Trailers
    Boat/Yacht Building
    Sign Manufacturers
    Shipbuilding
    Tool Boxes
    Railcars
    Fabrication

    Features
  • 30-foot (9 m) cable length
  • Built-in gas valve, rotatable canister, and isolated common knurled drive roll.
  • Easy access to drive assembly and removable toolless head tube reduces service time by allowing a simple means of changing drive rolls and head tube or performing routine maintenance without disassembling gun.
  • Improved motor and drive design for better feedability and arc consistency while helping reduce downtime and maintenance costs associated with complex drive systems.
  • Aluminum-series-specific tension settings ensure smooth wire feeding performance with 4000 or 5000 series aluminum wires.
  • Direct-connect (no adapters needed), easy-to-rotate, self-seating head tube options in several different lengths and bend configurations



    Comes complete with
  • Eighteen FREE 1 lb. spools (1 case) of Hobart® 4043 .035 diameter aluminum MIG welding wire.




  • Get eighteen FREE 1 lb. spools (1 case) of Hobart® MaxalMig® 4043 .035 diameter aluminum MIG welding wire with the purchase of this Spoolmatic® Pro 30A spool gun. While supplies last. (No substitutions allowed.)

    Hobart® ER4043 .035 Aluminum MIG Welding Wire - 1# Spool H381808-R18

    1 lb. Spool - Genuine Hobart® ER4043 .035 diameter Aluminum MIG Welding Wire is a general purpose wire that is well-suited for welding 6XXX series aluminum. It is classified as AWS A5.10 ER4043 and is an all-position solid MIG wire with a low melting temperature and excellent corrosion resistance.

    Applications
    Welding 6xxx alloys
    Automotive/motorcycle frames
    Sports products - scooters/bicycles
    General repair and maintenance

    Features
  • Moderate strength (28 ksi typical)
  • Low melting temperature/high fluidity
  • Low welding smut and discoloration
  • Low ductility, formability, and lower toughness
  • Moderate electrical conductivity and thermal conductivity
  • Excellent corrosion resistance
  • Low shrinkage rate/reduced distortion
  • Low hot cracking sensitivity in most applications

    Shielding Gas:
    Argon 100%
    Argon/Helium mixes for 1 inch + thick plate
