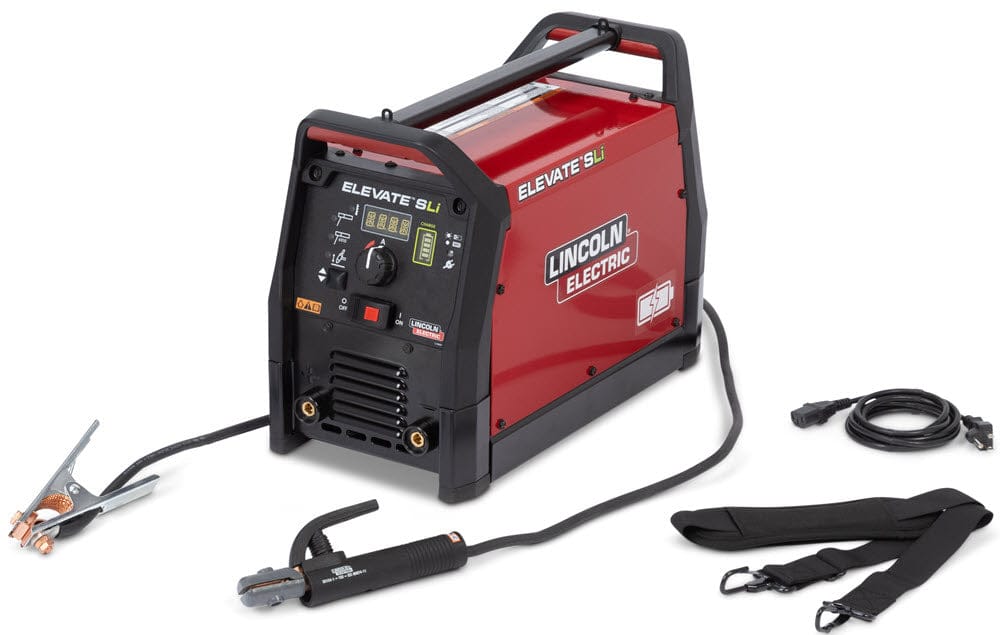

Lincoln® Elevate™ SLi Battery Powered Welder K4706-1
The Lincoln® Elevate™ SLi is a 145 amp battery powered DC Stick/TIG welder that operates on a fully integrated lithium iron phosphate battery. Weighing in at just 33 pounds, the Elevate SLi is up to 39% lighter than competitve battery welders. It burns up to twenty-one 3/32" diameter stick electrodes, nine 1/8" diameter or six 5/32" diameter welding electrodes. The built-in battery reaches full charge in just one hour.
The Elevate SLi has an output range of 20 to 145 amps in stick welding mode, and 4 to 145 amps while TIG welding. Stick welding features include a dedicated E6010 mode, Arc Force and Hot Start control, and superior arc performance on both E7018 and E6010 electrodes. It features lift-arc TIG starts with OPTIONAL TIG torch. It is ideal for maintenance and repair jobs where electrical power is not readily available.
The Lincoln Elevate SLi battery welder comes complete with stick electrode holder with cable, work cable with ground clamp, 120 volt adapter cord and shoulder strap.
Processes
Stick (GMAW)
DC TIG (GTAW) - with OPTIONAL TIG torch
ApplicationsConstruction
Fabrication
Maintenance
Repair
Features
Portability
Welcome to the world of convenience with ELEVATE™ SLi. This cordless design with internal rechargeable battery
technology is designed to be lightweight and portable,
allowing you to take it on a construction site or repair
equipment in the field. The ELEVATE™ SLi is always there
to help you get the job done.
Arc Performance
Thanks to its premium performance utilizing Lincoln Electrics’ proven Chopper Technology®, ELEVATE™ SLi delivers superior DC arc welding performance for both Stick and Touch Start
TIG® welding. Featuring cellulosic capability with the ability
to handle up to a 5/32 in. (4.0 mm) diameter electrodes, this
welding machine allows both whip and drag techniques for
a wider range of construction and fabrication applications
Straightforward & Simple
ELEVATE™ SLi has an impressive all-in-one internal charging system that eliminates the need for an external charger, multiple battery packs, or custom power cords. This charging
system is designed to regulate the charging process and prevent the battery from being overcharged while continuously monitoring its status.
Durability
Not all lithium-ion battery technologies are the same.
ELEVATE™ SLi uses lithium iron phosphate battery technology, which offers a longer lifespan, improved discharge and charge efficiency, and increased safety. Built to withstand challenging
welding environments with an IP23S rating and fan-as-needed
circuitry, ensuring long-lasting performance
Hot Start
Adjust the amperage during arc initialization to improve electrode starting. After the arc is established, the welding
current will decrease to the output current set. Increasing
from 0 to 10 will increase the additional current (relative to
the preset current) added at arc initiation.
Arc Force
Controls penetration profile from soft arc to crisp arc. A high
arc force value creates a crisp arc, while a low arc force value
creates a soft arc. Full range is from -10 (Soft) to +10 (Crisp) PLEASE NOTE: This is a DC welder ONLY. It CANNOT TIG weld aluminum. Comes complete with
Elevate™ SLi battery powered DC Stick/TIG welder
Stick electrode holder and cable, 10 ft. (3.0 m) with Twist Mate™ plug
Work clamp and cable, 10 ft. (3.0 m) with Twist Mate™ plug
120V charging cord
Shoulder strap
