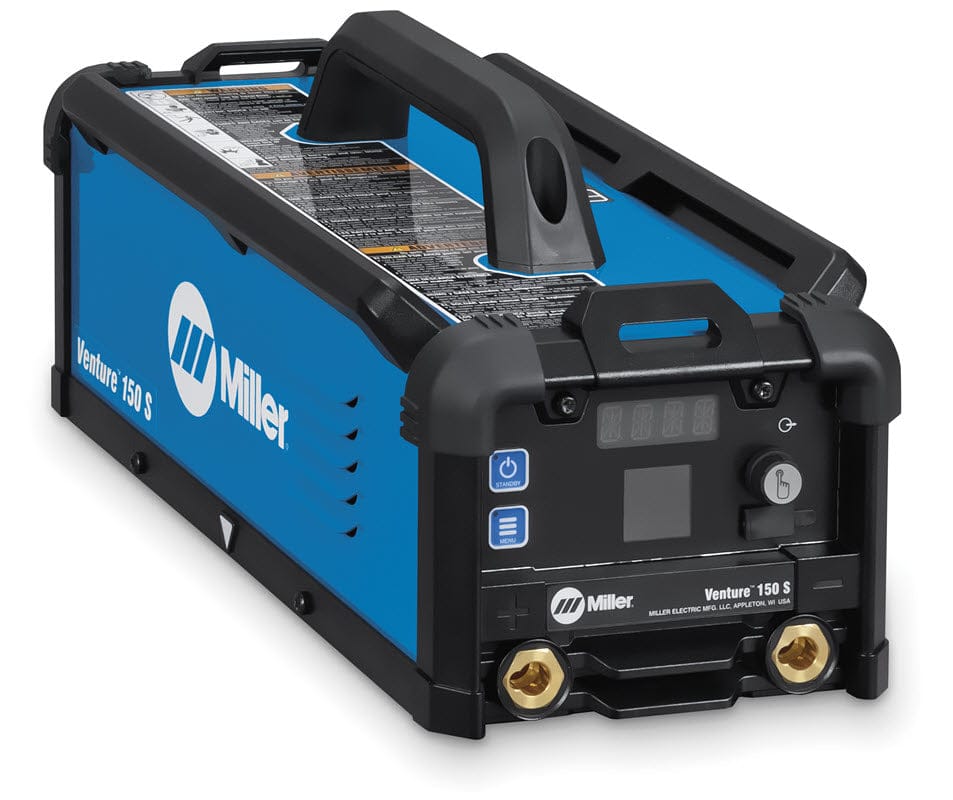

Miller Venture 150 S Power Source ONLY 907888

Miller® Venture™ 150 S Power Source ONLY 907888

The Miller® Venture™ 150 S Power Source ONLY is capable of up to 150 amps of stick welding output, when paired with an OPTIONAL Miller 400Wh battery pack #301756. It is also capable of up to 160 amps of DC TIG output (with OPTIONAL TIG torch). Stick welding features include Miller's Hot Start™, which provides better arc starts and helps prevent your electrode from sticking to the workpiece. The Venture also handles E6010 stick electrodes with ease. For DC TIG, built-in Lift-Arc™ initiates the TIG welding arc without using high frequency. The TIG arc is struck when the tungsten electrode is lifted off of the weld piece, reducing tungsten contamination.

The Venture 150 S weighs only 27 pounds, with OPTIONAL battery attached - making it the lightest battery welder in its class. It comes complete Miller's True Blue® 3 year warranty.



Process

Stick (SMAW)

Lift-Arc™ DC TIG (GTAW) - with OPTIONAL TIG torch

Applications
Mechanical contractors
Maintenance and repair
Construction
Mobile welding

Features

6010 stick electrode capability
Superior stick arc performance even on the difficult-to-run electrodes like E6010.

Hot Start™
Adaptive control provides positive arc starts without sticking.

Lift-Arc™
Provides arc starting that minimizes contamination of the tungsten electrode without the use of high-frequency.

Fan-On-Demand™
Power source cooling system operates only when needed, reducing noise, energy use, and the amount of contaminants pulled through the machine.

Thermal overload protection
Helps prevent machine damage in light industrial applications.

Low OCV Stick
A simple design that reduces the open-circuit voltage to 12-16 volts when the welding power source is not in use. Can be enabled or disabled. Some jobs require this.

Stick-Stuck
detects if the electrode is stuck to the work piece and turns the welding output off to safely and easily remove the electrode.



NOTE: This is a DC welder ONLY. It CANNOT weld aluminum.



Comes complete with

Venture™ 150 S Power Source ONLY

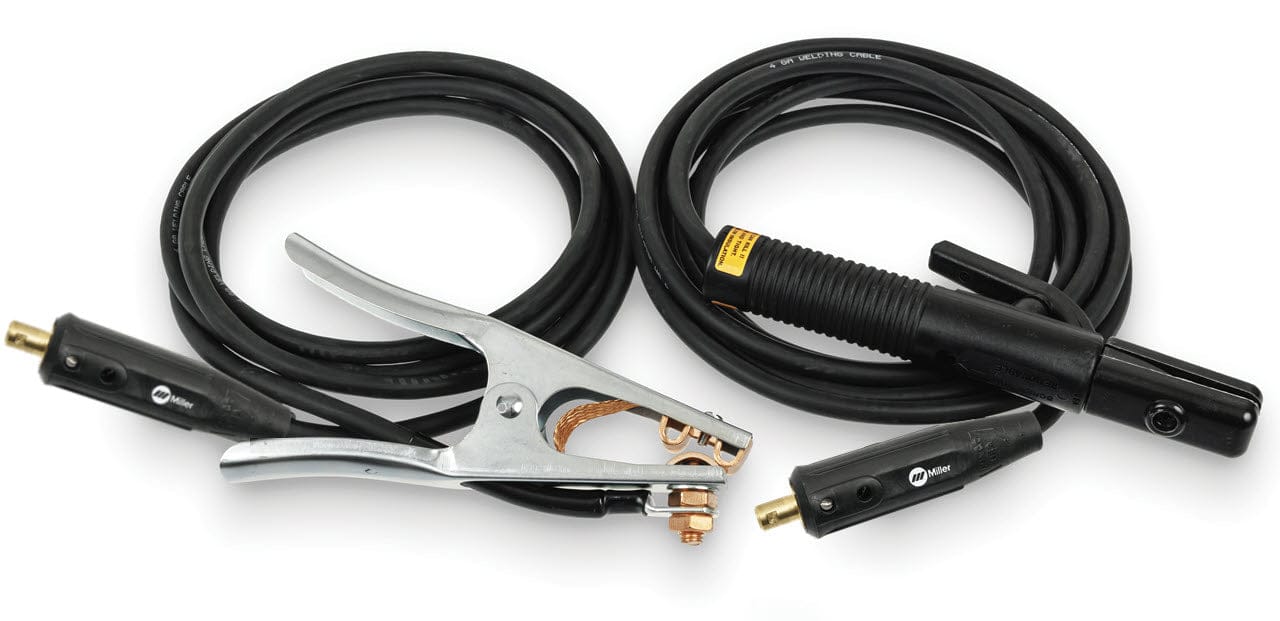

10 ft. (3 m) #4 work cable with clamp and 50 mm Dinse-style connector

10 ft. (3 m) #4 lead cable with stick electrode holder and 50 mm Dinse-style connector

Shoulder strap with pad

4 Rubber bumpers/feet
