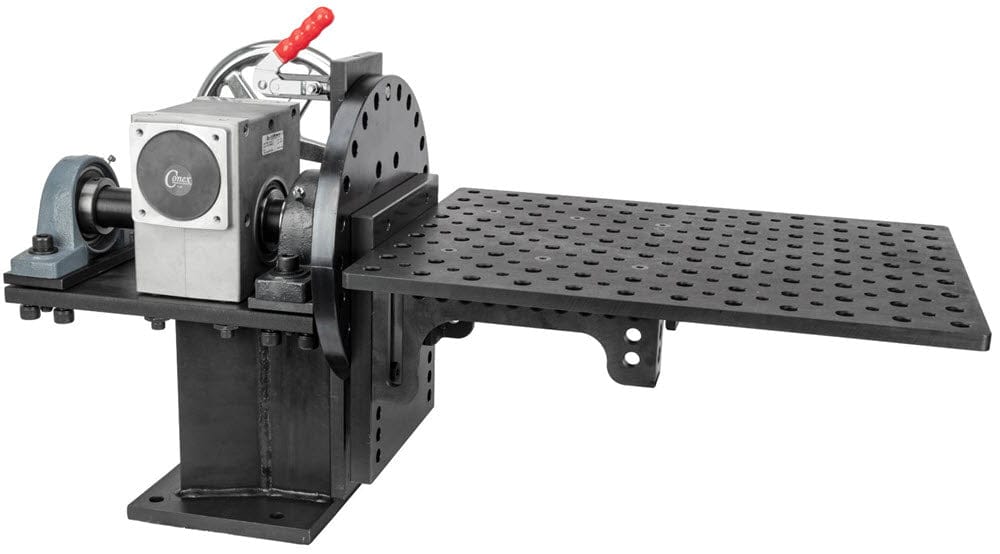

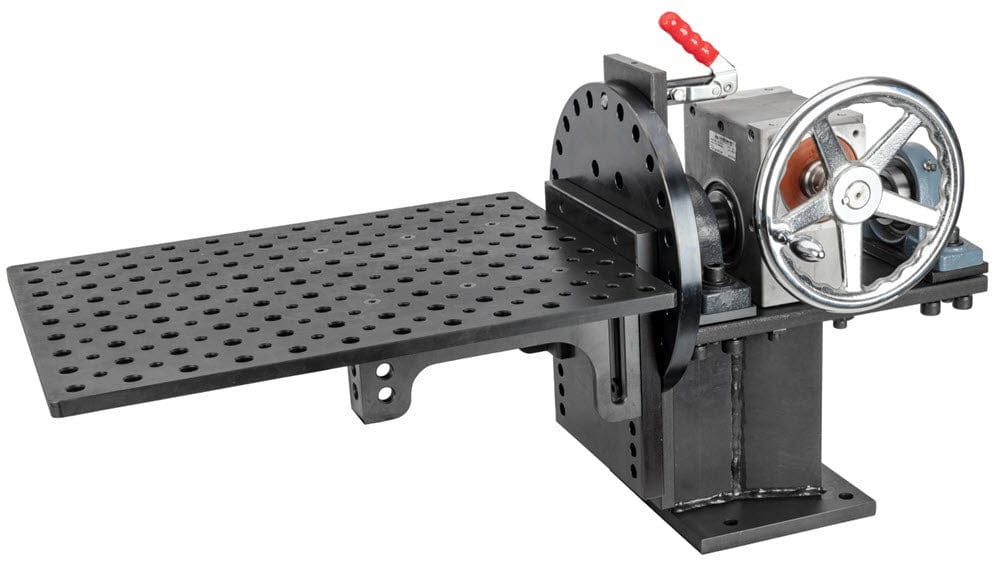

BUILDPRO® Mini Rotary Positioner with Tomb Stone Sub Assembly & Fixturing Plate TMP52418

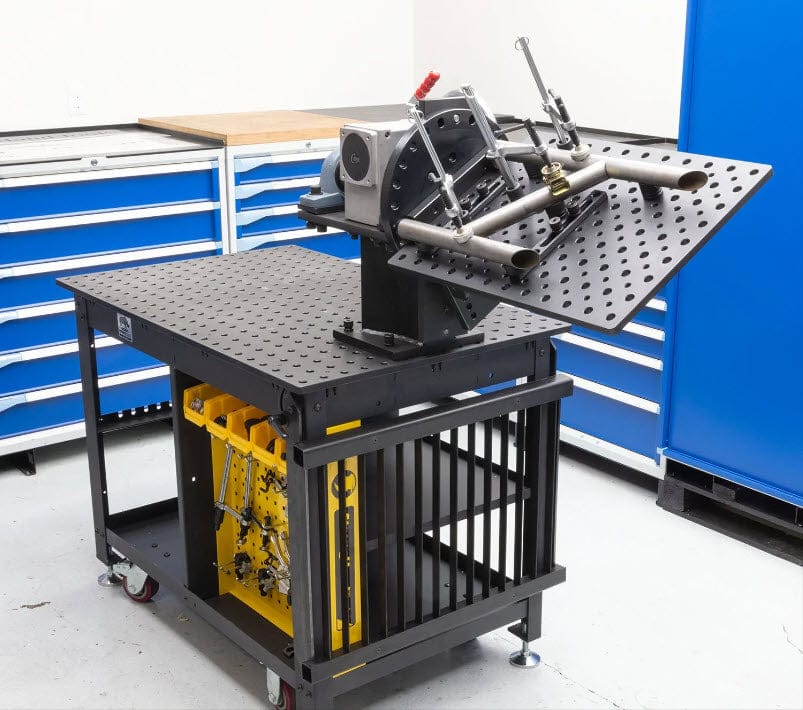

Genuine BuildPro® Mini Rotary Positioner, with Tomb Stone Sub Assembly and Fixturing Plate, fits on top of any BuildPro Rhino Cart, Alpha 5/8 or MAX welding table, and allows you to rotate your weld fixture to the most comfortable welding angle. The TMP52418 includes a 24" x 18" fixturing plate. The low backlash worm gear provides smooth plane rotation with minimal operator effort.

The BuildPro Mini Rotary Positioner has a 300 lb. capacity and a universal mounting bolt pattern for 5/8 welding table tops.

Features

  • Fixturing Plate
    Approx. 24" x 18" x 0.6" Included
  • Capacity:
    300 lb.
  • Mini Rotary Positioners are Universal
    Mounting bolt pattern accommodates Alpha 5/8, MAX and Rhino Cart Welding Tabletops.
  • Worm gear combined with center of gravity positioning
    Reduces the effort required for rotation, while preventing free rotation of the table from gravity.
  • Faceplate with 15° increments
    Provides positive manual locking.
  • Axis point to mounting base
    13-1/2"
