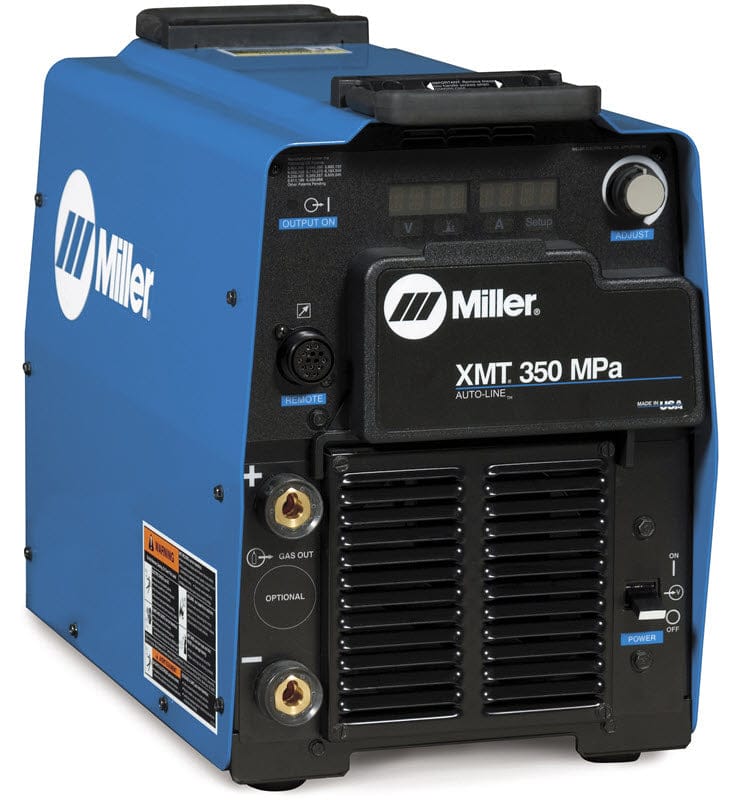

Miller XMT 350 MPa Multiprocess Welder 907366

Miller® XMT® 350 MPa Multiprocess Welder 907366

The Miller® XMT® 350 MPa is a 350 amp multiprocess welder with built-in Pulsed MIG programs for steel, high tensile steels and aluminum. Miller's exclusive SharpArc® give you total control of the arc cone shape, puddle fluidity and bead profile, while in the pulsed MIG welding mode. Auto-Line™ power management automatically detects 208 to 575 volts, single or three-phase input power and adjusts the XMT 350 MPa to optimize performance.



Processes

MIG (GMAW)/Pulsed MIG (GMAW-P)

Stick (SMAW)

Flux Cored (FCAW)

Air Carbon Arc (CAC-A) Cutting and Gouging

Applications
Manufacturing Industrial
Construction
Shipbuilding
Railroad
Truck and Trailer Manufacturing
Fabrication
Repair Shops
Rental Fleets

Features

XMT® 350 MPa expands the process capability of the XMT® Series, with built-in Pulsed MIG operation. MPa stands for MIG, Pulse, advanced arc control. The advanced arc control provides:
Improved pulsed MIG welding.
More control over the puddle and weld bead using SharpArc®.
More robust and stable arc at very low arc lengths.
Reduces heat input
Welds on a wider range of material thicknesses.

Sharp Arc® on the XMT® 350 MPa:
Can handle virtually any welding job, including those hard-to-weld alloys found at power generation plants and shipbuilding facilities.
A low setting gives a more fluid puddle and a flatter bead appearance.
A high setting gives a less fluid puddle and a ropier bead appearance.
Can be adjusted to help customize the arc for the type of shielding gas being used.

Auto-Line™ Power Management technology allows for any input voltage hook-up (208-575V) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or unreliable input power.

350 amps of welding output at 60% duty cycle enables improved deposition through using larger diameter electrodes common in construction applications.

Available with Dinse or Tweco-style output connectors .

Power factor of .95 enables smaller fuses/breakers and primary wiring. Primary amperage draw at rated output is 25% less than the competition.

Exceptional electrical efficiency. At 400 amps, efficiency is 87.24%, this helps to reduce the utility bill or fuel supply required to weld.

Inverter arc control technology provides greater puddle control for superior 6010 Stick electrode performance.

Auto Remote Sense enables unit to automatically use remote control if connected to remote control receptacle.

Reduced OCV operation - an internal dip switch enables reduced open-circuit voltage Stick welding capability. OCV is typically below 15 volts.

Process selector switch reduces the number of control setup combinations without reducing any features.

Large, dual digital meters are easy to view and presettable to ease setting weld output.

Lightweight, aerospace-grade aluminum case offers protection with the benefit of reduced weight.

Wind Tunnel Technology™ Internal air flow that protects electrical components and PC boards from dirt, dust, debris... greatly improving reliability.

LVC™ Line Voltage Compensation Keeps output of the power source constant regardless of fluctuation in input power +/- 10%.

Fan-On-Demand™ Internal power source cooling system that only works when needed, keeping internal components cleaner.

Adaptive Hot Start™ for Stick Automatically increases output amperage at the start of a weld should the start require it and prevents the electrode from sticking and creating an inclusion.

Lift-Arc™ Simply touch the tungsten to the work piece and the arc is initiated instantly and automatically without the use of high frequency.

Optional 115 VAC auxiliary power provides 10 amps of circuit-breaker-protected power for water circulators, etc.





Comes complete with

Dinse cable connectors (2)

FREE Miller® T94i™ auto-darkening welding helmet
