Lincoln® Outback® 185 Engine Driven Welder K2706-2
The Lincoln® Outback® 185 is a 185 amp DC engine driven welder and 5,700 watt AC generator. The smooth DC welding output produces excellent results while welding with various types of DC stick welding electrodes. Plug in Lincoln® POWER MIG® 140C or POWER MIG 180C welder directly to the Outback® 185 for high productivity wire welding. Plug in Lincoln® Tomahawk® 375 Air plasma cutter to cut metal. No adaptors needed.
The Outback 185 produces up to 5,700 peak watts of single-phase AC auxiliary power. Its compact size makes it ideal for hauling in the back of your pickup truck. Low-Lift™ grab bars allow for more leverage while lifting machine on and off your truck. The Kohler® CH440 four-cylinder gasoline engine produces 14 horsepower at 3,600 RPM.Processes
Farm & ranch
Low-Lift™ Grab Bars -
More leverage when lifting on and off truck.
Extra protection against machine damage.
Smooth DC Welding Output
For a broad range of stick electrode types.
MIG, and flux-cored capable (with
5,700 Watts Peak Single-Phase AC
Peak for motor starting.
5,200 watts continuous power for
generator, plasma cutter or inverter welder.
Lights, grinder, power tools.
14 HP Kohler® Gasoline Engine
1 cylinder, 4 cycle overhead valve
air-cooled design with electric & recoil start
6.8 gallon tank for extended run times.
Only 1.09 gallons/hour at 100 amps DC, 25V,
100% duty cycle.
Comes complete with
Outback® 185 with Kohler® CH440 gasoline engine with electric start

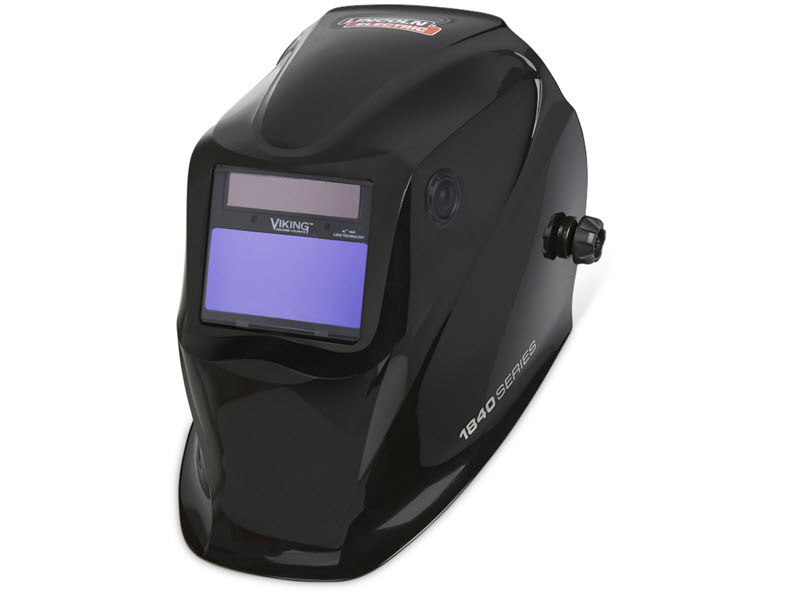

FREE Lincoln® Viking™ 1840 Black auto-darkening welding helmet.
Get a FREE Viking™ 1840 Black auto-darkening welding helmet with the purchase of this Outback® 185 welder. Expires 6/30/23. (No substitutions allowed.)
Genuine Lincoln® Viking™ 1840 Black auto darkening welding helmet now features fully digital controls with true color optics and a 7.0 square inch viewing area. The 1840 digital comes with Lincoln's exclusive 4C® lens technology. Proprietary 4C liquid crystal display passes more true color through the lens in both light and dark states to create the clearest view of your work piece. The Viking 1840 digital welding hood has a perfect 1/1/1/1 optical clarity rating, meaning lens distortion and blurriness are completely eliminated, shade is consistent through every square inch of the lens and the welding arc looks crisp and clear at any angle.
Product enhancements also include an expanded range variable shade 7-13 dark state, four arc sensors and DC TIG weld rating down to 2 amps. The Lincoln Viking 1840 digital auto darkening welding hood comes complete with Lincoln's pivot-style headgear, for even weight distribution, and has a three year lens warranty.
Viking™ 1840 Features
4C™ lens technology
and clarity in welding and light states - reducing eye strain and operator fatigue
Wide Viewing Area -
The 7.0 square inch auto darkening lens provides a up to a 16% larger field of view when compared to other helmets in its class
Perfect 1/1/1/1 Optical Clarity
This rating is determined by measuring blurriness, distortion, shade consistency and angle uniformity of the auto-darkening welding lens
Four arc sensors
For improved welding arc detection from any angle
Gen. 3 Pivot-style headgear
Four points of contact help reduce fatigue
Two adjustable top head supports
distribute weight and improve
Orientation adjustment pin for
optimal resting position
Soft front headband reduces
pressure and absorbs moisture
Polymer backpad increases comfort
and stabilizes helmet position
Simple ratchet tightening
mechanism for comfortable,
DC TIG rated to 2 amps -
Outstanding performance on low amperage DC TIG welding applications.
Low-Profile External Grind control -
Conveniently switch between welding mode and grinding shade 3.5 without removing helmet
Fully Digital Internal Controls
Moisture and abrasion resistant push button LED IU controls
Simple, intuitive adjustments for precise and consistent performance
Comes complete with
5 outside cover lenses
2 inside cover lenses
Mag lens holder
Three year lens warranty
This item ships Free via standard ground shipping within contiguous U.S.
