Description
Lincoln® Ranger® Engine Driven Welder K2857-1
The Lincoln® Ranger® 225 is a 225 amp DC welder and 10,500 watt AC generator. The smooth DC welding output produces excellent results while welding with various types of DC stick welding electrodes. The Ranger 225 is also capable of DC scratch-start TIG welding, as well as MIG and Flux-Cored welding with OPTIONAL LN-25® series voltage sensing wire feeder.
The Ranger 225 produces up to 10,500 peak watts of single-phase AC auxiliary power. Its compact size makes it ideal for hauling in the back of your pickup truck. Three engine access panels and convenient battery access panel help make maintenance quick and easy. A large fuel level indicator is located on both sides of the welder. The Kohler® CH730 two-cylinder gasoline engine produces 23 horsepower at 3,600 RPM.
Processes
Stick (SMAW)
MIG (GMAW)
Flux-cored (FCAW)
DC TIG (GTAW)
Applications
Construction
Farm & ranch
Maintenance welding
Features:
Totally Enclosed Case -
Engine is fully protected.
3 service access doors.
Low noise – 76.4 dBA sound level at 23 ft.
(7 m). 100.7 dB sound power (Lwa) at
rated output.
Versatile DC Welding
Smooth DC welding output for a broad
range of stick electrode types.
MIG, flux-cored and TIG capable (with
optional equipment).
10,500 Watts Peak Single-Phase AC
Generator Power
Peak for motor starting.
9,000 watts continuous power for
generator, plasma cutter or inverter welder.
Lights, grinder, power tools.
23 HP Kohler® Gasoline Engine
2 cylinder, 4 cycle overhead valve
air-cooled design.
Oil drain extension for easy oil changes.
12 gallon tank for extended run times.
Only 1.5 gallons/hour at 210 amps DC, 25V,
100% duty cycle. Visual fuel level gauge on
both sides of unit.
Rugged Reliability
Welding and AC generator outputs rated
at 104°F (40°C).
Comes complete with
Ranger® 225 welder with Kohler® OHV Command CH730 gasoline engine.

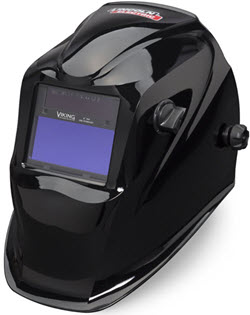

FREE Lincoln® Viking™ 1840 Black auto-darkening welding helmet.
Get a FREE Viking™ 1840 Black auto-darkening welding helmet with the purchase of this Ranger® 225 welder. Expires 3/31/23. (No substitutions allowed.)
Genuine Lincoln® Viking™ 1840 Black auto darkening welding helmet now features fully digital controls with true color optics and a 7.0 square inch viewing area. The 1840 digital comes with Lincoln's exclusive 4C® lens technology. Proprietary 4C liquid crystal display passes more true color through the lens in both light and dark states to create the clearest view of your work piece. The Viking 1840 digital welding hood has a perfect 1/1/1/1 optical clarity rating, meaning lens distortion and blurriness are completely eliminated, shade is consistent through every square inch of the lens and the welding arc looks crisp and clear at any angle.
Product enhancements also include an expanded range variable shade 7-13 dark state, four arc sensors and DC TIG weld rating down to 2 amps. The Lincoln Viking 1840 digital auto darkening welding hood comes complete with Lincoln's pivot-style headgear, for even weight distribution, and has a three year lens warranty.
Viking™ 1840 Features
4C™ lens technology
Optimizes contrast
and clarity in welding and light states - reducing eye strain and operator fatigue
Wide Viewing Area -
The 7.0 square inch auto darkening lens provides a up to a 16% larger field of view when compared to other helmets in its class
Perfect 1/1/1/1 Optical Clarity
This rating is determined by measuring blurriness, distortion, shade consistency and angle uniformity of the auto-darkening welding lens
Four arc sensors
For improved welding arc detection from any angle
Gen. 3 Pivot-style headgear
Four points of contact help reduce fatigue
Two adjustable top head supports
distribute weight and improve
balance
Orientation adjustment pin for
optimal resting position
Soft front headband reduces
pressure and absorbs moisture
Polymer backpad increases comfort
and stabilizes helmet position
Simple ratchet tightening
mechanism for comfortable,
secure fit
DC TIG rated to 2 amps -
Outstanding performance on low amperage DC TIG welding applications.
Low-Profile External Grind control -
Conveniently switch between welding mode and grinding shade 3.5 without removing helmet
Fully Digital Internal Controls
Moisture and abrasion resistant push button LED IU controls
Simple, intuitive adjustments for precise and consistent performance
Comes complete with
Helmet bag
5 outside cover lenses
2 inside cover lenses
Mag lens holder
Three year lens warranty
PLUS get a $700 VISA® gift card from Lincoln® with the purchase of this Ranger® 225 welder. Rebate form must be submitted online HERE no later than 30 days after purchase. While supplies last.
This item ships Free via standard ground shipping within contiguous U.S.
