BUILDPRO Alpha 5/8 Adjustable Welding Table 10' x 5' TA5-12060Q-B1

BUILDPRO® Alpha 5/8" Adjustable Welding Table 10' X 5' TA5-12060Q-B1

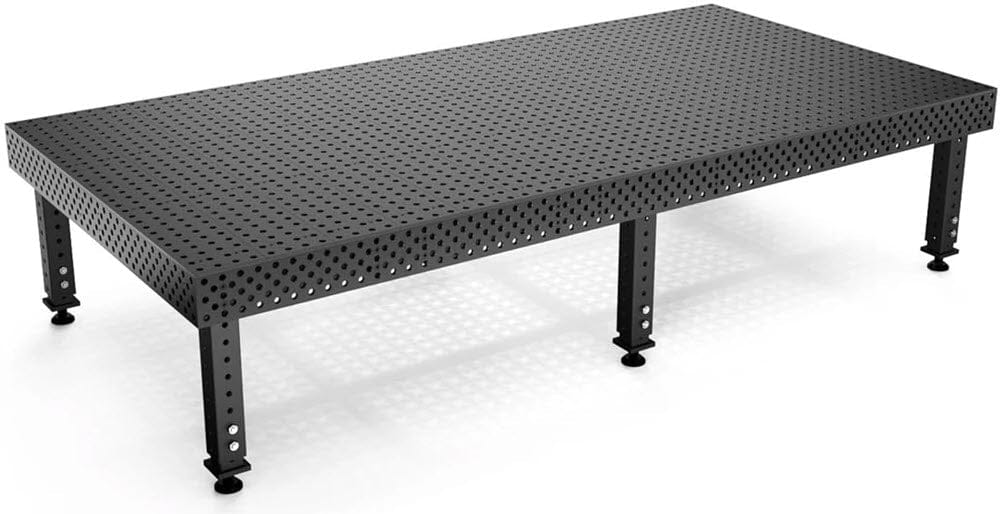

Genuine BuildPro® Alpha 5/8" 10' X 5' Welding Table with adjustable legs is a heavy duty welding table, complete with side plates, that is equipped with 5/8" diameter boreholes for maximum versatility and accuracy. The Alpha 5/8 table sets the standard for flatness, squareness, and dimensional accuracy. All BuildPro welding tables come with precision machined, self-locating steel plates and reversible top plates; allowing each table plate to be removed and flipped 180 degrees to expose a new working surface. This five-sided table features a 5-1/2" side plate on all four sides. When combined with the top plate, total side height is 6 inches. Side plates feature an extended 5 borehole pattern for even more precision and flexibility. Adjustable legs, with boreholes, hold up to 1,500 lbs. per leg and allow you to adjust your table height to fit your job or preference. Table height can be set between 28.3 to 38.3 inches, with one inch increments.



Features

• Reversible Self-Locating Top and Side Plates allows each table plate to be removed and flipped 180 degrees to expose a new working surface.
• Nitrided (Heat-Treated) Tabletop is weld spatter, rust and scratch resistant.
• CNC Hole Pattern accurately position parts in CNC precision bored 5/8 dia. holes in 2 x 2 spacing pattern.
• Adjustable Legs adjust table surface height between 28.3 and 38.3 inches, depending on your job or preference. Table height can be adjusted in one inch increments
• Side Plates Feature an extended 5 borehole pattern for added precision and adjustability.
• Compatible with 5/8" fixturing elements compatible with all MAX Clamps, Components, and Modular Fixturing Kits EXCEPT Sliding Channel Clamps, Sliding Channel Bases, Slot filler Kit and T-Slot Adapter.
