BUILDPRO MAX Slotted Adjustable Leg Welding Table 4' x 3' (Nitrided) TMQR54738

BUILDPRO® MAX Adjustable Leg Slotted Welding Table 4' X 3' (Nitrided) TMQR54738

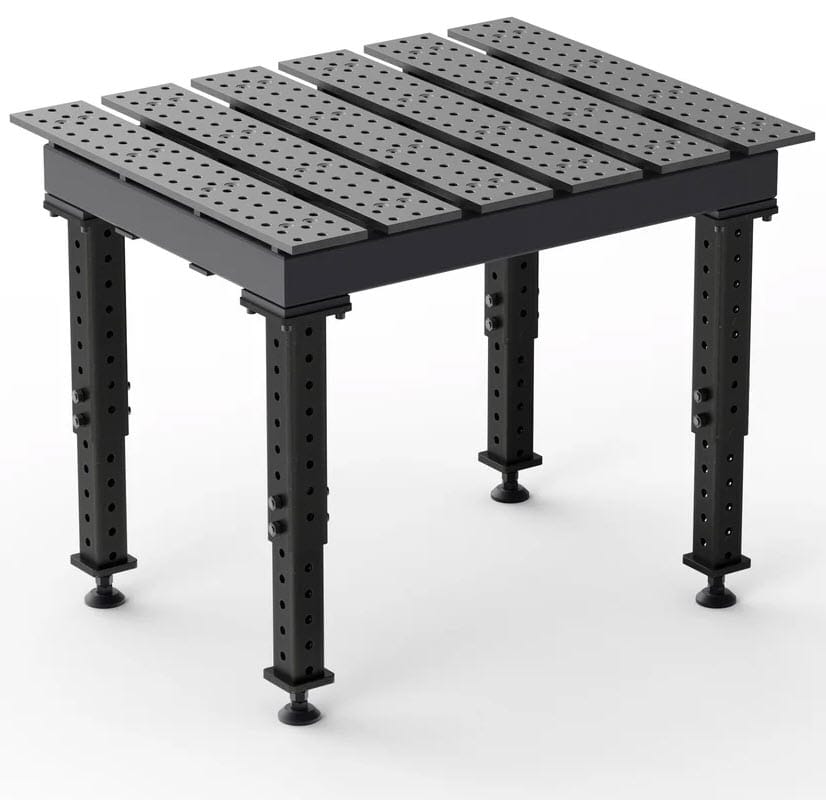

Genuine BuildPro® MAX Adjustable Leg 4' X 3' Slotted Welding Table, with a nitrided (heat-treated) tabletop finish, is an adjustable height, heavy-duty welding table that comes complete with 5/8" diameter boreholes.  Adjustable leg models are available with or without mobility casters. Heavy-duty adjustable legs (no casters) feature leveling feet and have a variable table height between 28.5 inches and 44.75 inches (22.25-38.5 inch legs). Each heavy-duty adjustable leg has a static load capacity of 1,500 pounds.

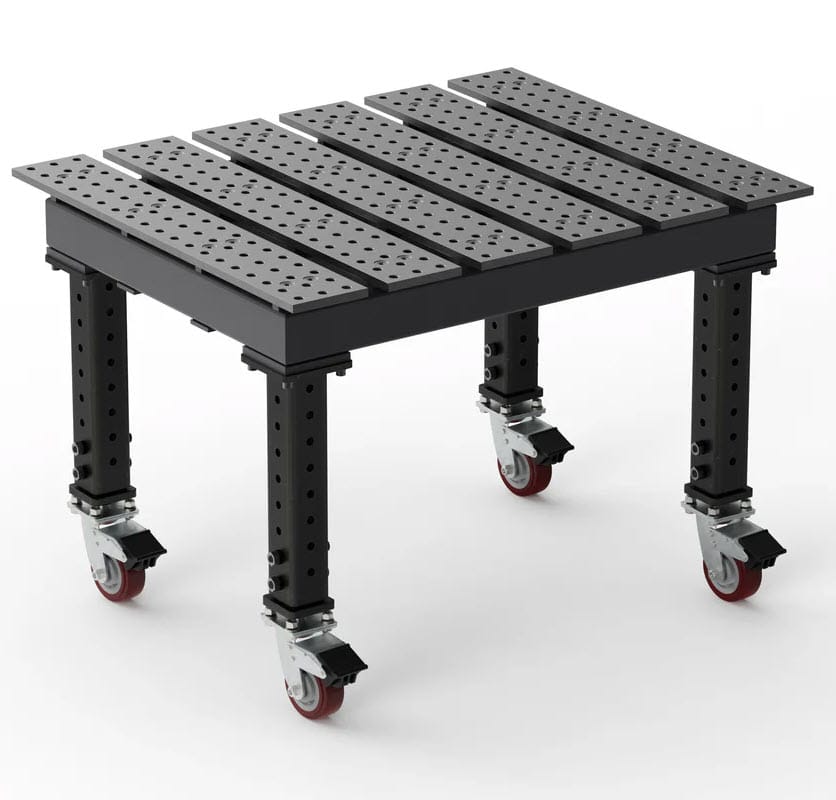

Legs with mobility casters have a variable table height between 33.25 inches and 43.25 inches (27-37 inch legs + Casters). Each adjustable leg with mobility caster has a static load capacity of 650 pounds. The heavy duty casters are made from non-marring nylon polymer, and allow your table to be moved around the shop quickly and easily.

All BuildPro MAX welding tables come with precision machined, self-locating steel plates and reversible top plates.  Each table plate can be removed and flipped 180 degrees to expose a new working surface, extending the life of the table.  They have been nitrided (heat-treated) to increase hardness and corrosion resistance. Surface plates are 5/8" thick and have a 1.7" slot between them for T-Slot adapters or Sliding Channel, and are suitable for use with all BuildPro MAX clamps, components and fixturing kits. All adjustable-height legs include boreholes.



Features

Adjustable Legs
Allow the tabletop height to be adjusted between 28.5 and 43.25 inches high (depending on model) in one-inch increments

Available Heavy Duty Casters
Durable casters roll smoothly on precision ball bearings, with non-marking, non-marring nylon polymer wheels. Dual toe-step braking system can be set for "no-swivel + no-roll".

Reversible Self-Locating Top Plates
Allows each table plate to be removed and flipped 180 degrees to expose a new working surface.

Nitrided (Heat-Treated) Tabletop
Is 5/8" thick and holds static load weights up to 1,500 pounds per leg (with leveling feet) or 650 pounds per leg (with mobility casters).

CNC Hole Pattern
Accurately position parts in CNC precision bored 5/8" diameter holes in 2 x 2 spacing pattern.

Compatible with 5/8" fixturing elements
Compatible with all MAX Clamps, Components, and Modular Fixturing Kits.

Gross Table Weight
515 lbs.
