BuildPro Rhino Plate Connecting Bridge Kit - 30" X 48" TDPK311

BUILDPRO® Rhino Plate Connecting Bridge Kit - 30" X 48" TDPK311

Genuine BuildPro® Rhino Plate Connecting Bridge Kit comes complete with a 30" X 48" Rhino Plate and all necessary mounting hardware to connect two Rhino Carts® together. The Rhino connecting plate can be used with two 48" X 30" Rhino Carts to form a 90" X 48" work surface. It can also be used to connect two 48" X 48" Rhino Carts to form a 126" X 90" work surface. The heat treated Rhino connecting plate is resistant to wear, weld spatter and rust. It is also reversible. Simply flip the connecting plate over to expose a new work surface. The CNC hole 2 x 2 spacing pattern allows for accurate and repeatable setups. All clamps and fixturing elements are designed to be placed and easily adjusted at the top of the plate.



Features

RhinoConnecting Bridge Kit
Forms a 90" X 48" work surface when fully connected to two 48" X 30" Rhino Carts. (NOT INCLUDED)
Forms a 126" X 48" work surface when fully connected to two 48" X 48" Rhino Carts. (NOT INCLUDED)
The 30" X 48" Rhino Bridge Plate comes with all the necessary hardware to connect two Rhino Carts together.

Reversible Connecting Plate
Nitrided and black oxide connecting plate is reversible, as well as weld spatter, rust and scratch resistant.

CNC Hole Pattern
Accurately position parts in CNC precision bored 5/8 dia. holes in 2 x 2 spacing pattern.

Compatible with 5/8" fixturing elements
Compatible with all MAX Clamps, Components, and Modular Fixturing Kits except Sliding Channel Clamps, Sliding Channel Bases, Slot filler Kit and T-Slot Adapter.

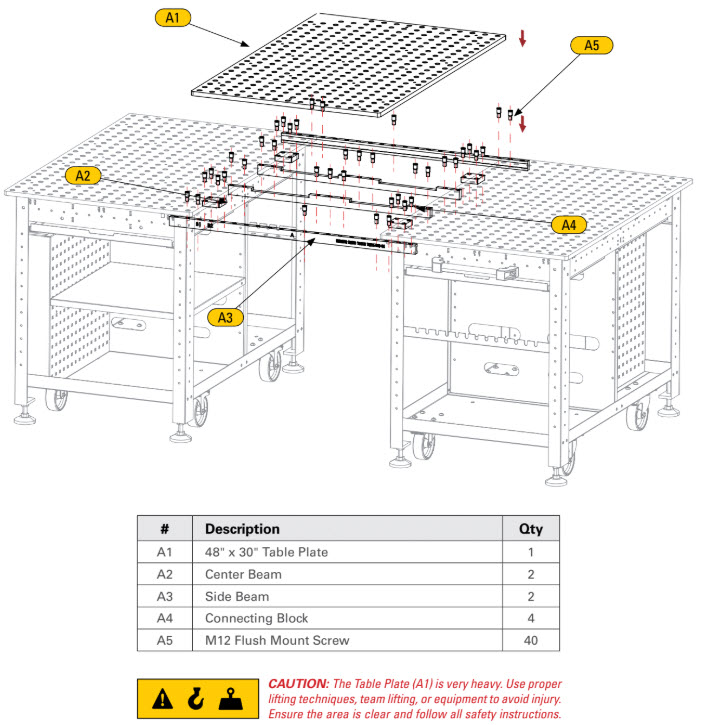

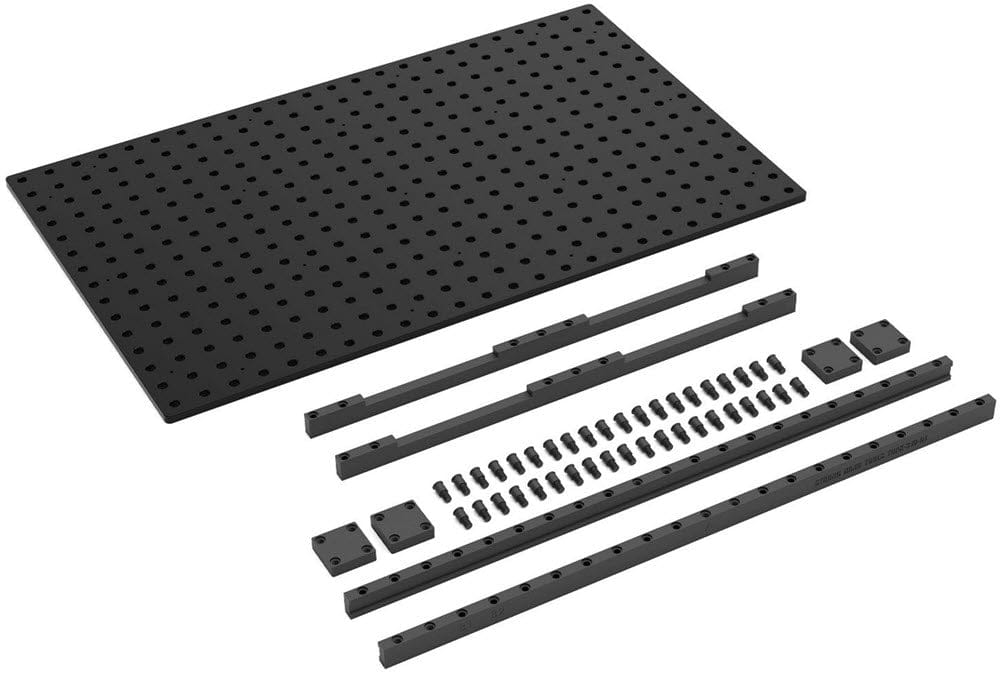

Comes Complete With

1 Rhino Plate 30" X 48"

2 Center beams

2 Side beams

4 Connecting blocks

40 M12 flush mount screws
