Contour® #1 Marker 14771
The Contour® #1 Marker is an excellent all-around tool for laying out pipe and structural steel members up to 18 inches.Features
Compact, time-saving tool used to lay out pipe and structural steel joints.
Ideal for quick, precise layout of laterals at any angle, tees, wyes, crosses, elbows -- any type or size of joint.
Eliminates complicated mathematical formulas, cut and try, and need less material waste.
Can be used to lay out pipe from 1-1/2 to 18 in diameter, or structural steel members up to 18 inches in a right side up or upside down position.

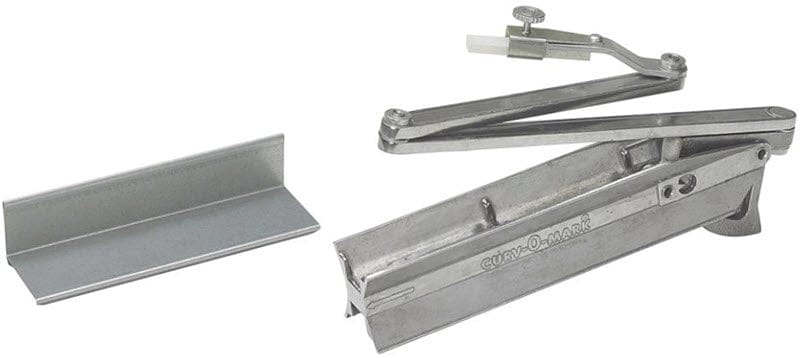

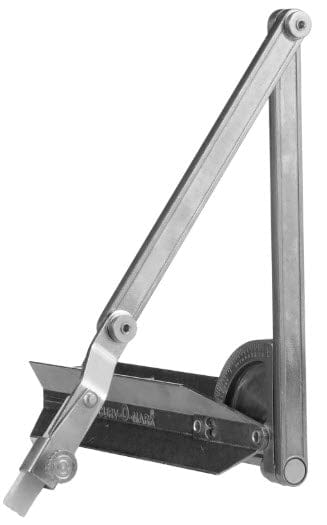

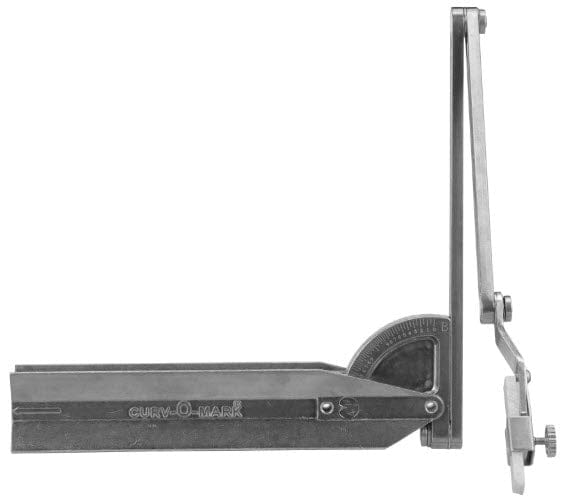

Consists of an X-shaped frame, calibrated protractor, and a triple-jointed marking arm and holder.
Holder accepts a soapstone crayon (included), felt pen or pencil.
Protractor is calibrated on both sides -- one in degrees, the other in rise-inches-per-foot -- to service any type of measurement need.
