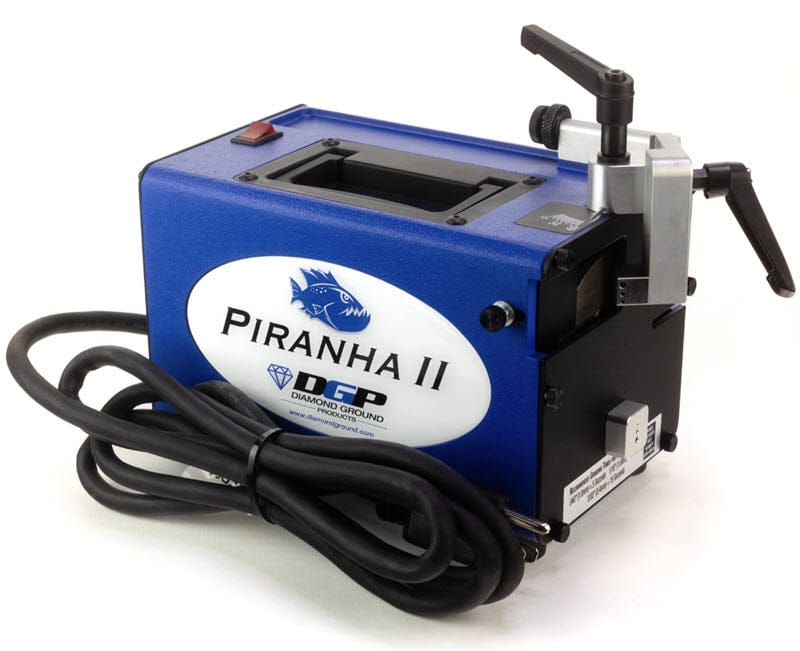

Diamond Ground Piranha II Tungsten Grinder DGP-PG2-A
The Diamond Ground Piranha II tungsten grinder provides safe tungsten electrode grinding in a compact, affordable package. It is designed to safely cut and precision grind .040" through 3/32" diameter tungsten. A properly ground tungsten welding electrode ensures a clean, consistent TIG welding arc that does not "wander."
Why use a dedicated tungsten grinder?
Safety: Enclosed grinding area captures Tungsten dust
for easy disposal.
Weld Quality: 20 Ra surface finish improves Tungsten
life, arc starting, arc stability and produces consistent
weld penetration.
Productivity: Longitudinally Diamond grind your
Tungsten electrode in less than 30 seconds correctly and
consistently.
Value: The PIRANHA II Diamond grinds, flats and
notches your Tungsten economically.
Features
Sliding dust shield for 100% dust containment
Integrated receptacle area for ease of handling electrodes
Recessed handle for better form & function
On/off switch with LED light for improved display of unit operation
Lightened chassis for reduced weight
Signature blue powdercoat
Easy set-up, optimal consistency and near-perfect
repeatability.
Compact, durable and solid design with no vibration.
Longitudinal 20 RA grinding for maximum arc starting,
arc stability, electrode life and weld penetration.
Universal collet arm for 3 electrode sizes - 040"
(1.0mm), 1/16" (1.6mm), 3/32" (2.4mm) - with no
equipment changes.
Precision tip flat gauge & depth adjustment stop ensures
exact tungsten points every time - enabling consistent,
repeatable arc performance and welding output.
Containment baffle to keep dust inside the grinder
housing, for safety and easy disposal.
Tip flat block for square end grinding and removing
bad tips.
Electrode notching station for simple cut-off.
Double-sided grinding wheel for maximum wheel
life and value.
Detailed manual for valuable engineering data and welding recommendations.
