Diamond Welding Lead Reel - Fixed Base Set - Black

Code: FBS-SET10BLK

1 3

Cyberweld Price $365.00
Cyberweld Price $365.00
Mfg Industrial Price: $389.00
(You Save $24.00)

This item qualifies for free standard shipping.
Earn 365 rewards points for this item!  (Start Earning Rewards!)
Reel Size
-
+
FAST & FREE SHIPPING On All Orders Over $99

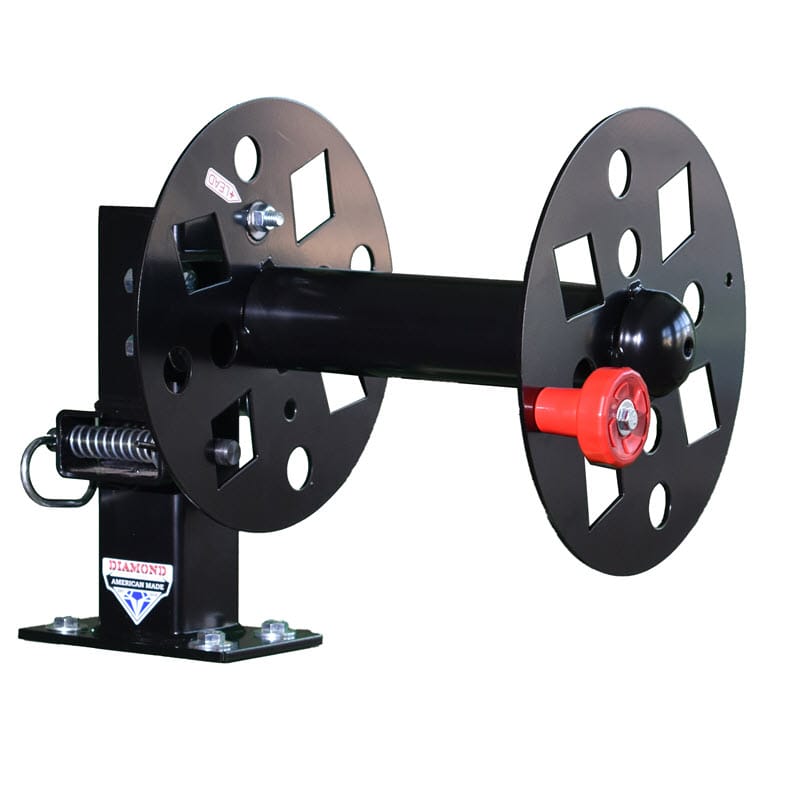

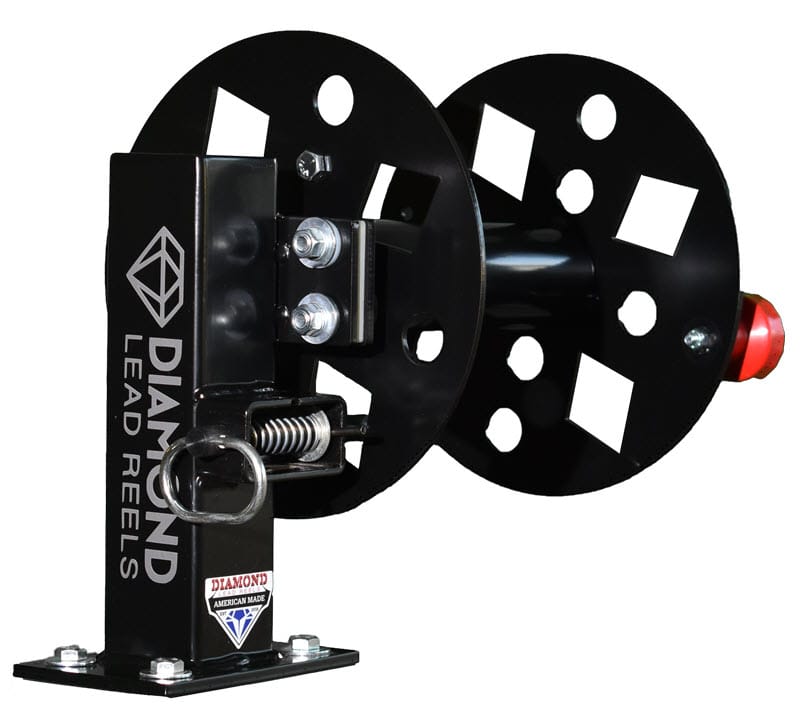

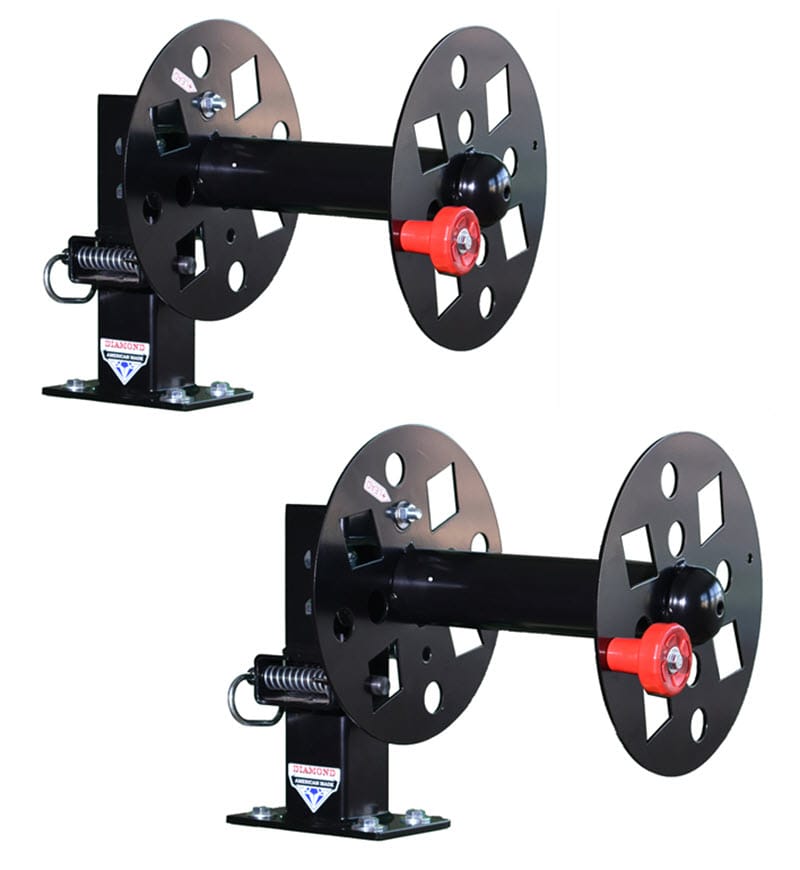

Diamond Welding Lead Reel - Fixed Base Set Black

The Diamond Fixed Base lead reel set features two single heavy duty reels that are capable of holding up to 125 - 200 feet of welding cable each (see below for size specifics). All Diamond lead reels are made in the USA of powder coated steel. Reels are fully electrically isolated up to 600 amps and come with heavy duty manual friction brakes to keep welding cable from becoming uncoiled.

Welding Cable Capacity

  • 10 inch: 150 ft 1/0 welding cable, or 125 feet 2/0 welding cable (each reel)
  • 12 inch: 200 ft 1/0 welding cable, or 150 ft 2/0 welding cable (each reel)


Features

  • Stays connected to the welder at all times.
  • Vented circle design allows for free air flow over your lead to aid in cooling.
  • Heavy-duty manual friction brake is adjustable, allows for adjustable tension and prevents free spooling of leads.
  • Locking pull pins secure cables while not in use.
  • Comes standard with 600 amp spool insulators.
  • Heavy-duty, all-steel construction
  • Ball bearing spools
  • Powder coated for a lasting finish
