Diamond Welding Lead Reel - 10 Inch Fixed Base Side x Side FBSS10BLK

Rated 4.0 out of 5 stars
1 Review


Skip to product information
1 of 1

Cyberweld Price $346.35
Cyberweld Price $346.35
Mfg Industrial Price: $379.00
(You Save $32.65)
This item qualifies for free standard shipping.

Reel Size:2 X 10 inches

WARNING: Cancer and Reproductive Harm - P65Warnings.ca.gov
FAST & FREE SHIPPING On All Orders Over $99

Diamond Welding Lead Reel - 10 Inch Fixed Base Side x Side FBSS10BLK

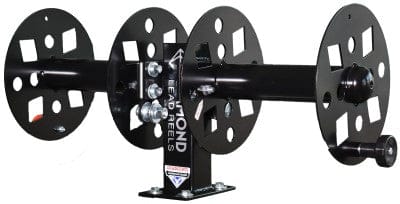

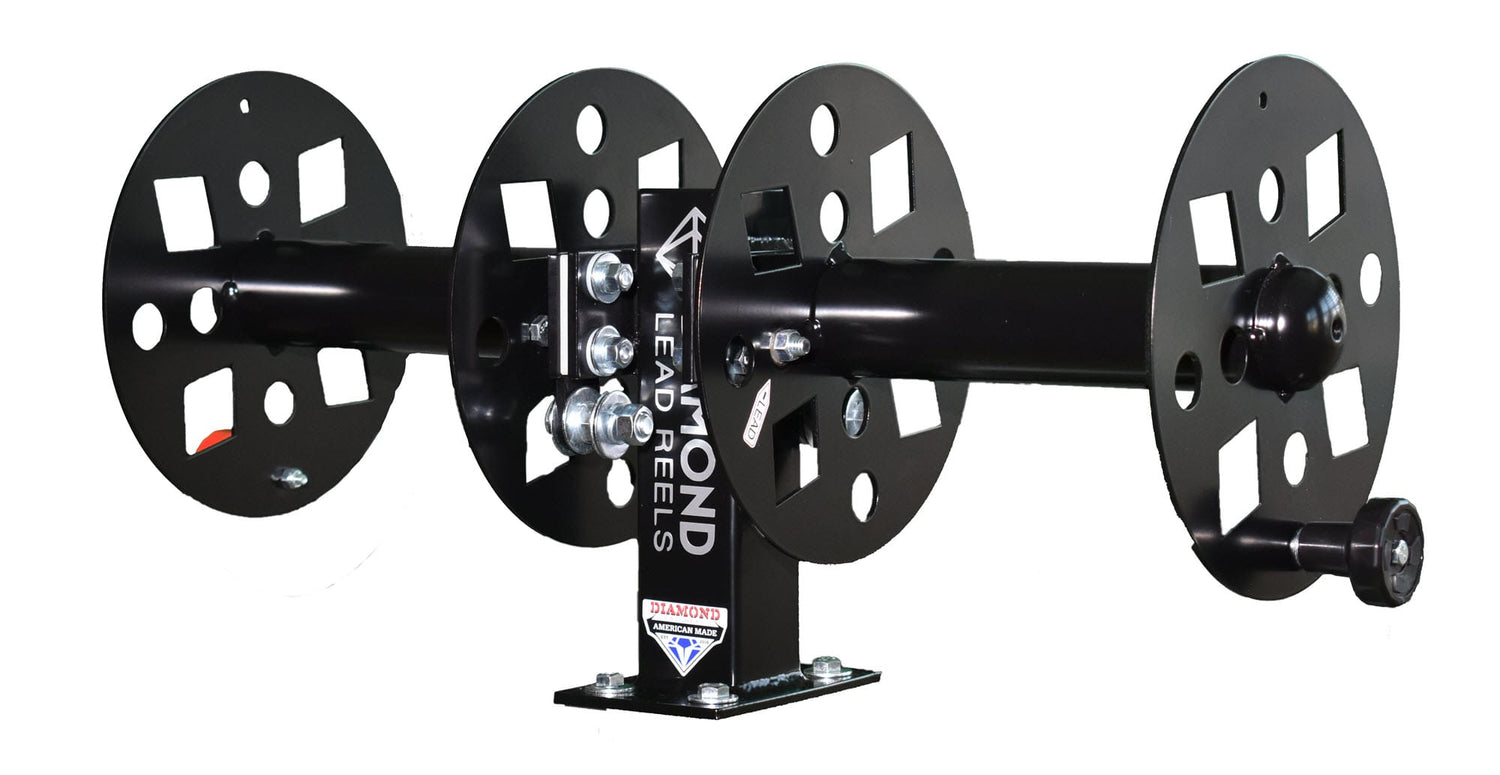

The Diamond FBSS10BLK fixed base lead reel features two side by side heavy duty 10 inch reels that are capable of holding up to 150 feet of welding cable each. All Diamond lead reels are made in the USA of powder coated steel. Reels are fully electrically isolated up to 600 amps and come with heavy duty manual friction brakes to keep welding cable from becoming uncoiled.

Welding Cable Capacity
150 feet size 1/0 welding cable (each reel)
100 feet size 2/0 welding cable (each reel)

  • Stays connected to the welder at all times.
  • Vented circle design allows for free air flow over your lead to aid in cooling.
  • Heavy-duty manual friction brake is adjustable, allows for adjustable tension and prevents free spooling of leads.
  • Comes standard with 600 amp spool insulators.
  • Heavy-duty, all-steel construction
  • Ball bearing spools
  • Powder coated for a lasting finish

  • 4.0
    Rated 4.0 out of 5 stars
    Based on 1 review
    Total 5 star reviews: 0 Total 4 star reviews: 1 Total 3 star reviews: 0 Total 2 star reviews: 0 Total 1 star reviews: 0
    1 review
    • M
      I recommend this product
      Rated 4 out of 5 stars
      2 years ago
      No locking pin when traveling

      Looks well built, but I noticed on some models there a lock pin when traveling or rolled up, this one only has a friction brake, haven't used it yet but would have gave 5 stars if it had a locking pin like all the others I have seen.
