ESAB Rogue EM 190 PRO MIG Welder 0700301083

ESAB® Rogue EM 190 PRO MIG Welder 0700301083

The ESAB® Rogue EM 190 PRO is a 190 amp portable MIG welding package that operates on 230 volt input power ONLY. The Rogue 190 PRO boasts a robust industrial design at a DIY price.  Weighing in at just under 38 lbs., the EM 190 is lightweight but is capable of MIG welding 3/8" thick material in a single pass.  Its rigid molded housing will withstand abuse that would destroy lesser welders.  It features Arc Dynamics, which allows you to fine tune your arc based on the metal you're joining.  The Rogue also comes standard with 27 pre-programmed welding parameters for welding gauge material all the way up to 3/8" thick mild steel. This welder is spool gun ready, which means you can tackle aluminum MIG welding jobs with OPTIONAL Tweco® 160 amp spool gun.  There are no additional adapters needed.

The Rogue EM PRO 190 comes complete with a five-inch TFT digital display, ten foot Tweco® Fusion® 180 MIG gun, shielding gas flow regulator with hose, work cable with clamp, input power and ESAB's 3-year warranty.  It is rated for IP23S for outdoor use.

Process

MIG (GMAW)

Flux-cored (FCAW)

Applications
Automotive
Automotive Bodies
Civil Construction
Mechanical Contractors
Repair and Maintenance
Light Fabrication
Agricultural Equipment
Hobbyist



Features

Full feature MIG machine for Synergic MIG/MAG, Manual MIG/MAG, MIG Brazing, Flux-Cored

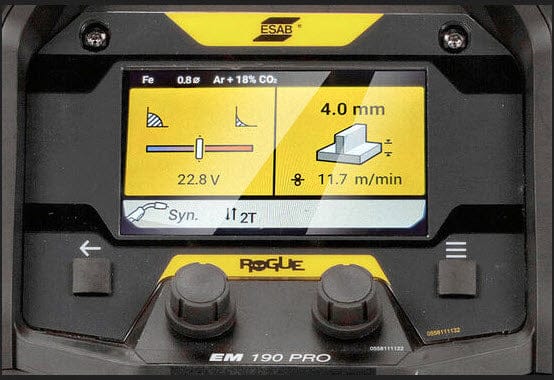

Intuitive 5.0 in TFT screen offers clear views with direct interaction

Synergic Weld Programs (27) – full range of welding parameters, 0.5 – 10.0 mm (0.020 – 0. 375 in) with single knob control

Power Factor Correction (PFC) – ensures a stable arc, resistant to power fluctuations even while working on long extension cables up to 100 m (328 ft)

Unique rugged industrial design – supporting multiple lift points and cable management

Arc Dynamics – fine tune arc characteristics for a crisp/stiff arc for carbon steel or a smooth/soft arc for stainless steel

Jobs – 10 memory save/recall function

Spool Gun Ready – Rogue automatically configures set up when spool gun is connected

Multi-language display – configure the display to 1 of 29 languages

Energy Save Mode – after 2 minutes of inactivity the unit will enter this state to reduce power consumption.

IP23S rated for indoor/outdoor use

ESAB's industry-leading service and support means that if you do need help with your welder, you will be protected. 100% SATISFACTION GUARANTEE means that if there's anything you're not completely satisfied with in your first 100 days with your new welder, ESAB will make it right, even if it means giving you your money back. It's all part of ESAB's Iron Clad Pledge to its customers.

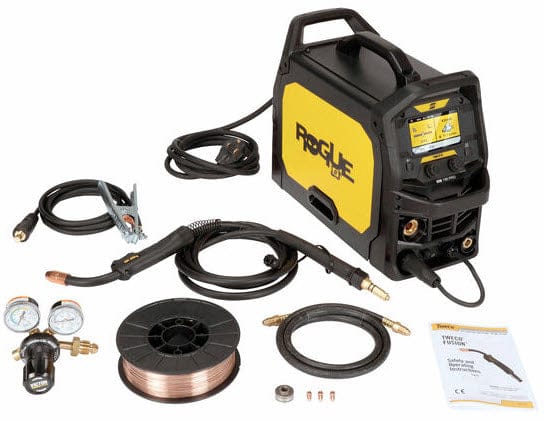

Comes Complete With:

Rogue EM 190 PRO MIG welder

10 ft. Tweco® Fusion® 180 MIG gun with Velocity®consumables

Victor® Argon/CO2regulator with hose

10 ft. ground cable with clamp with OKC 35-50 connection

Sample wire spool of ESAB OK AristoRod 12.50 mild steel MIG wire (2#)

.023/.030 and .030/.035 drive rolls.
