Everlast Cyclone 262 MIG Welder CLN-262

Everlast CYCLONE 262 MIG Welder CLN-262

The Everlast CYCLONE 262 is a 250 amp MIG welder that is also capable of stick welding. The CYCLONE 262 operates on single-phase, 240 volt input power and comes complete with everything you need to MIG weld or stick weld - except the shielding gas and filler metals. The CYCLONES's PowerSet feature removes the guesswork in setting the right welding parameters for your job. A large color display guides you through your specific welding application to ensure a great weld every time. There are also no hidden menus. Simply select your welding process, and all process-specific settings are displayed on a single screen.

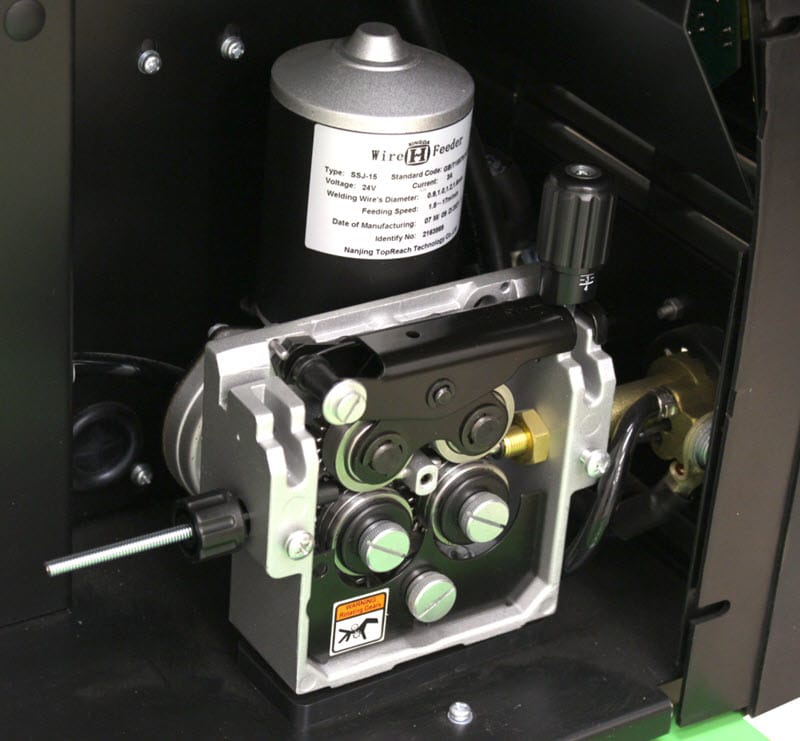

The CYCLONE 262 performs MIG, Flux-Cored and stick welding. It has an integrated undercarriage with cylinder rack, and a 4 drive roll wire feed system that is designed for industrial welding applications. It has built in spoolgun circuitry, for quality aluminum MIG welds using an OPTIONAL DSP 360 spoolgun. The 262 produces up to 275 amps of MIG welding output and 200 amps of stick welding output. It comes standard with pre-flow, post-flow, arc force and burn back control. The CYCLONE 262 has an industry best five year factory warranty.

Processes

• MIG (GMAW)
• Flux-Cored (FCAW)
• Stick (SMAW)


Applications
Metal Fabrication
Maintenance and Repair
Farm/Hobby
Light Industrial Applications

MIG Rating Steel
24 gauge - 7/16"
MIG Rating Aluminum
14 gauge - 1/4"
Stick Rating
1/16" - 5/32" diameter stick electrode

Features

• Digital IGBT Inverter MIG Power
  The Cyclone 262 has a digitally controlled inverter. The inverter design makes it one of the most powerful and smallest machines in its class to have a self– contained undercarriage with cylinder carrying capacity. Duty Cycle weighs in at a substantial 35% at max output, another best-in-class feature.

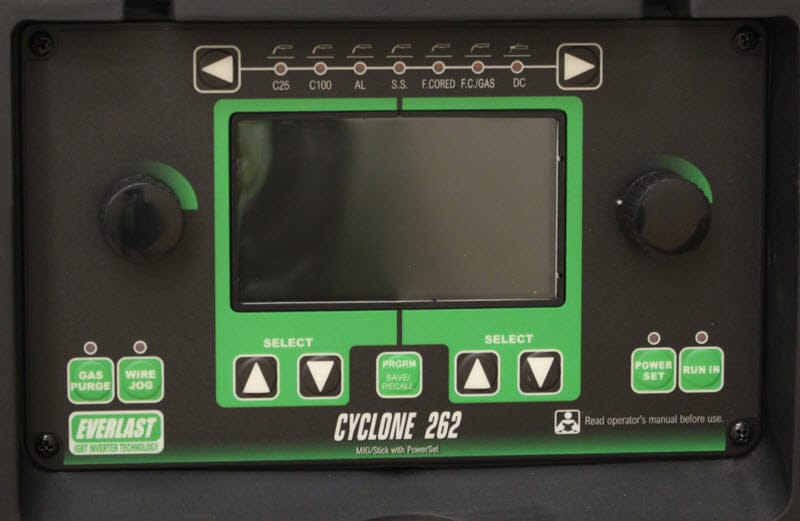

• Large Digital Color Display
  The large display makes the main settings stand out so you can always see them from a distance. Color coding and graphics help you quickly identify and set parameters.


• Spool Gun Ready
  Cyclone 262 is ready to weld aluminum with the optional DSP 360 Spool Gun. Select the function, plug the gun in, and you are ready to weld.
• Functions That Make Sense
  Functionality and ease of use is improved by having features like wire jog and gas test buttons for loading wire and setting gas flow. The Run-in function controls initial wire feed speed for better starts.
• Euro-Quick Type MIG Gun Connection
  This “universal” connection has been around for years, making quick work of changing guns, whether it be the 9.5 ft 36 series MIG gun, or any optional gun Everlast has to offer.
• Stick Weld Connections on the Front
  The unit features the smoothest Stick arc you’ll find. With E6010, users rave about the arc stability and smoothness that the unit delivers. In fact, it’s been ranked among the best in E6010 and E7018 by industry pros.
• Full Undercarriage
  This unit is easily moved around the shop thanks to its smooth rolling undercarriage with built-in cylinder rack.
• Choose From Multiple Processes
  The Cyclone 262 allows you to choose from Standard MIG with 75/25 Ar/CO2, MIG with CO2, Self-Shielded Flux-Cored, Gas Shielded Flux-Cored, Stainless MIG, Aluminum MIG, and Stick output settings. In each of these processes, the output can be fine tuned for optimal operation.
• Save Favorite Settings For Multiple Users
  The unit allows you to save all your favorite settings and easily recall them as needed. This is a great feature when you need to control settings in a work environment, or when you have multiple users.
• PowerSet Function Facilitates Setup
  No need to rely on complicated charts and menus to set up your machine. When you select powerset, all you need to do is input the wire size and metal thickness. The unit does the rest.
• Push-Pull or Spool Gun Ready
  The optional Parker DSP-360 spool gun is the perfect choice to match the output and duty cycle of the welder for light to medium Aluminum welding chores. For volume or full time use, the optional Parker DSP 360A Push-Pull gun works tirelessly to handle heavy-duty welding chores.
• 5 Year Parts and Labor Warranty
  Simply the best warranty in the business. Who else offers this without paying extra, or giving you a long list of exclusions?

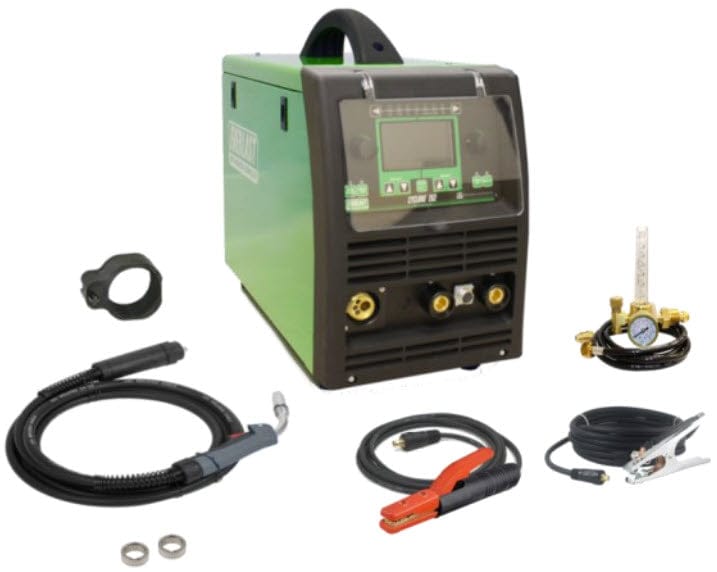

• Comes complete with
• CYCLONE 262 MIG/Stick Welder
• 36 series MIG Gun with 10 ft. cable
• 300A Ground Clamp with 10 ft. cable and 35 DINSE connector
• 250A Electrode Stick Holder with 10 ft. cable and 35 DINSE connector
• RH-191 Argon/CO2 Flowmeter Regulator with Hose
• Drive Roll V Groove .035"-.045" (Double) (installed)
• Spare Drive Roll V Groove .045"-.062" (Double)
• Spare Drive Roll Flux Core .045"-.062" (Double)
• Spare M8 MIG Contact Tip
