Everlast Typhoon 500 AC/DC TIG Welder TYP-500

The Everlast Typhoon 500 is a 500 amp AC/DC TIG Welder that delivers up to 400A on single phase 240V and 500A on three phase 480V power. The large HD Color LCD screen features the ability to see and set all the parameters on a single screen without endless hidden menus or complicated series of button presses. AC advanced pulse though with a mixture of both AC and DC negative allows you to achieve the penetration of a machine with 500A or more. While the Typhoon has all the standard wave forms including Advanced Square, Soft Square, Triangular and Sine wave, it also has the industry's first Trapezoid wave form This gives a whole new feel and level control while welding Aluminum. As a stick welder, the unit puts out one of the smoothest DC arcs you will find, which is perfectly suited for E7018 and similar rods. Stick weld with a 315A output on Phase 1 240V and 400A output while operating on 3 phase 480V. The Typhoon 500 has an industry best five year factory warranty.

Process

  • AC/DC TIG (GTAW)
  • Stick (SMAW)
Applications
  • Marine and Ship
  • Motorsports
  • Aero/Space
  • Fabrication
  • Production
  • Factory
  • HVAC

TIG Rating
Steel: .007" - 3/4"
Aluminum: .015" - 3/4"
Stick Rating
1/16"-1/4" (240V)
1/16" to 5/16" (480V)

Features & Benefits:

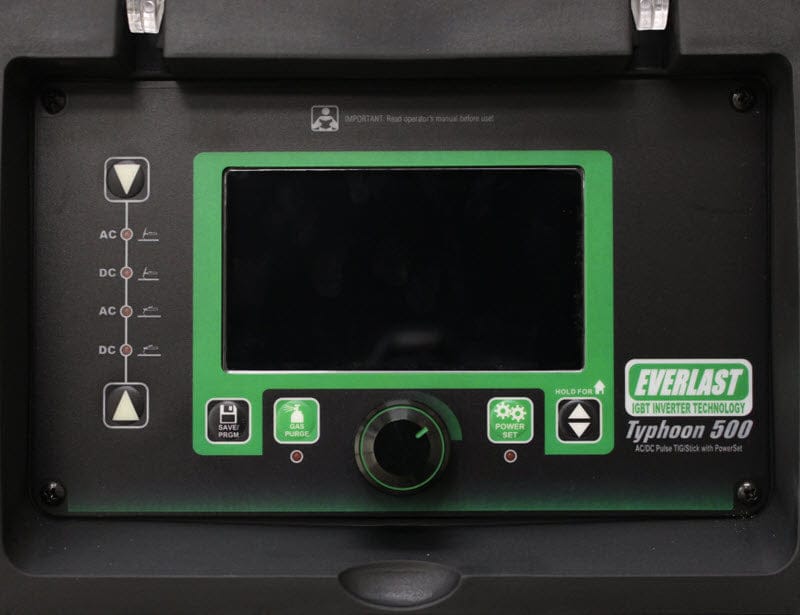

  • HD (720) LCD color screen with easy to read contrast.

  • Intuitive navigation and layout of settings.
  • 240V 1 phase and 480V 3 Phase operation.
  • 5 AC Wave forms: Adv. Square, Soft Square, Trapezoid, Triangle, and Sine.
  • Split AC Wave form control technology: Select  wave form shape of individual half-waves in AC.
  • Independent Amplitude Control over EN and EP Amps in AC.
  • DC Wave form shaping for more control.
  • DC Pulse up to 999.9 Hz.  AC Pulse up to 400 Hz.
  • AC Adv. Pulse (Mixed AC/DC pulse up to 10 Hz) increases Aluminum penetration similar to 500A or greater of standard machines.
  • AC frequency up to 400Hz.
  • True low amp starts measured at 5A DC and 10A AC.
  • Advanced PowerSet menu makes setup easy and quick.
  • 30 program memory with lock function to prevent tampering.

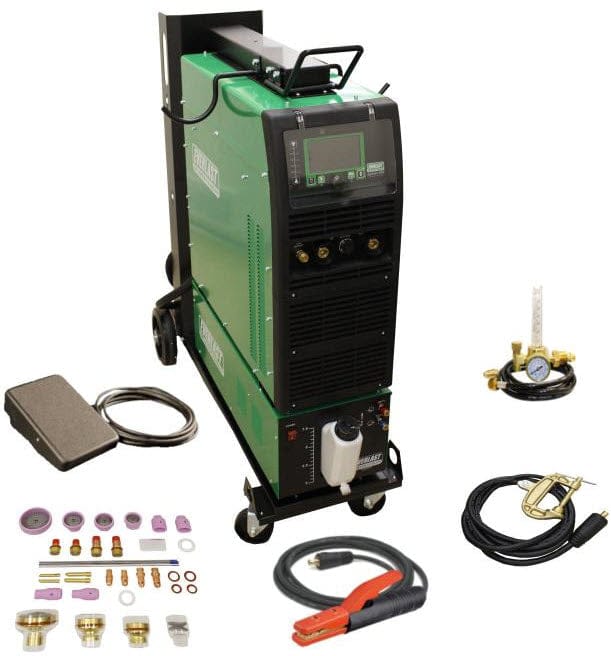

Comes Complete With
  • PowerCart 300 with accessory holders
  • PowerCool 400 Water Cooler
  • NOVA 25 ft. wired Foot pedal
  • NOVA 12.5 ft. 26 Series Air-Cooled Torch
  • CK 12.5 ft. 18 Series Water-Cooled Torch
  • 400A Stick Electrode Holder with 10 foot cable
  • 500A Bronze Work Clamp with 10 foot cable
  • TIG Consumable Starter Kit. Tungsten not included
  • Argon Regulator, floating ball type with hose
Specs Download
Download Typhoon 500 Spec Sheet
