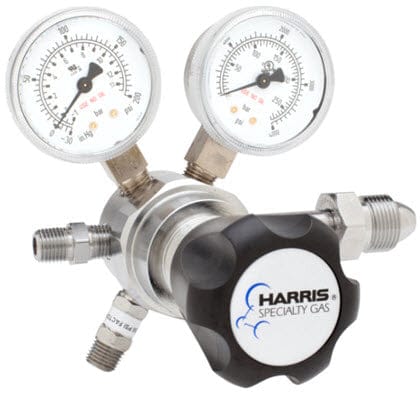

Harris HP 721C Spec. Gas Regulator - CGA 510 721C015510C

Harris® HP 721C Specialty Gas Regulator - CGA 510 with 1/4" Male NPT Outlet 721C015580C

The Harris® HP 721C-015-510-C specialty gas regulator is a single stage, chrome-plated brass, high purity regulator with CGA 510 (Propane, Methane, Silane, Vinyl Bromide, etc.) inlet and 1/4" male NPT outlet. It features a 316L stainless steel diaphragm and a one piece encapsulated seat with sintered filter to prevent contamination. The HP 721C is recommended for gas purity levels of Grade 5.0 (99.999%) and higher. It is ideal for laboratory and research applications such as gas chromatography, EPA protocol, laser gas and emission monitoring.



Features

• CGA 510 inlet (Propane, Methane, Silane, Vinyl Bromide, etc.)
• Nipple (installed) with 1/4 inch male NPT
• 1-11/16 inch 316L stainless steel diaphragm eliminates contamination from diffusion or outgassing
• One piece encapsulated seat design includes a sintered filter to protect the seat from particulate contamination
• 2 inch dual scale brass gauges (psi/bar)
• Designed to 1 x 10-9 cc/sec. inboard helium leak rate to maintain gas purity levels
• Maximum inlet 3000 PSIG
• External relief valve standard
• Available with delivery pressures up to 125 PSIG. (Please specify above)
