Harris HP 722C Spec. Gas Regulator - CGA 510 Acetylene 722C015510D

Code: 722C015510D

Skip to product information
1 of 1

Cyberweld Price $408.35
Cyberweld Price $408.35
Mfg Industrial Price: $653.28
(You Save $244.93)
This item qualifies for free standard shipping.

Inlet:CGA 510 (Male) Acetylene

Outlet:1/4 inch FMNPT

Outlet Pressure:0-15

CA Warning
WARNING: Cancer and Reproductive Harm - P65Warnings.ca.gov
FAST & FREE SHIPPING On All Orders Over $99

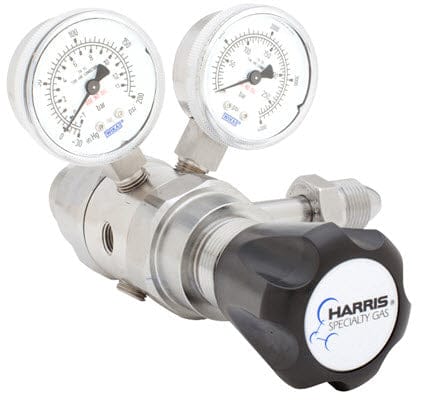

Harris® HP 722C Two Stage Specialty Gas Regulator - CGA 510 Acetylene with 1/4" Female NPT Port 722C015510D

The Harris® HP 722C-015-510-D specialty gas regulator is a two stage, chrome-plated brass, high purity regulator with CGA 510 (Male Acetylene) inlet and 1/4" female NPT port. It features a 316L stainless steel diaphragm and a one piece encapsulated seat with sintered filter to prevent contamination. The HP 722C is recommended for Atomic Absorption Grade 2.6 (99.6%) acetylene gas and higher. It is ideal for laboratory and research applications such as gas spectroscopy. If your acetylene tank has female threads, choose this CGA 510 male acetylene regulator.

  • Two Stage design ensures constant delivery pressure, regardless of gas cylinder pressure drop.
  • CGA 510 (Male) Acetylene inlet
  • 1/4 inch female NPT port
  • 1-11/16 inch 316L stainless steel diaphragm eliminates contamination from diffusion or outgassing
  • One piece encapsulated seat design includes a sintered filter to protect the seat from particulate contamination
  • 2 inch dual scale brass gauges (psi/bar)
  • Designed to 1 x 10-9 cc/sec. inboard helium leak rate to maintain gas purity levels
  • Maximum inlet 3000 PSIG
  • External relief valve standard
  • Delivery pressure 0-15 PSIG
