Harris HP 722C Spec. Gas Regulator - CGA 510 Acetylene 722C015510E

Code: 722C015510E

Skip to product information
1 of 1

Cyberweld Price $430.35
Cyberweld Price $430.35
Mfg Industrial Price: $682.63
(You Save $252.28)
This item qualifies for free standard shipping.

Inlet:CGA 510 (Male) Acetylene

Outlet:1/4 inch Tube Fitting

Outlet Pressure:0-15

-
+
FAST & FREE SHIPPING On All Orders Over $99

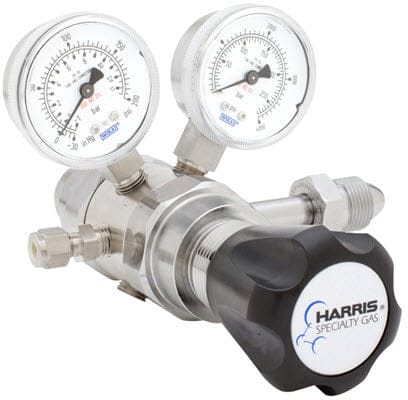

Harris® HP 722C Two Stage Specialty Gas Regulator - CGA 510 Acetylene with 1/4" Tube Fitting 722C015510E

The Harris® HP 722C-015-510-E specialty gas regulator is a two stage, chrome-plated brass, high purity regulator with CGA 510 (Male Acetylene) inlet and 1/4" tube fitting. It features a 316L stainless steel diaphragm and a one piece encapsulated seat with sintered filter to prevent contamination. The HP 722C is recommended for Atomic Absorption Grade 2.6 (99.6%) acetylene gas and higher. It is ideal for laboratory and research applications such as gas spectroscopy. If your acetylene tank has female threads, choose this CGA 510 male acetylene regulator.



Features
  • Two Stage design ensures constant delivery pressure, regardless of gas cylinder pressure drop.
  • CGA 510 (Male) Acetylene inlet
  • 1/4 inch tube fitting (installed)
  • 1-11/16 inch 316L stainless steel diaphragm eliminates contamination from diffusion or outgassing
  • One piece encapsulated seat design includes a sintered filter to protect the seat from particulate contamination
  • 2 inch dual scale brass gauges (psi/bar)
  • Designed to 1 x 10-9 cc/sec. inboard helium leak rate to maintain gas purity levels
  • Maximum inlet 3000 PSIG
  • External relief valve standard
  • Delivery pressure 0-15 PSIG
