Inlet:CGA 350 Hydrogen

Outlet:1/4 inch Tube Fitting

FAST & FREE SHIPPING On All Orders Over $50

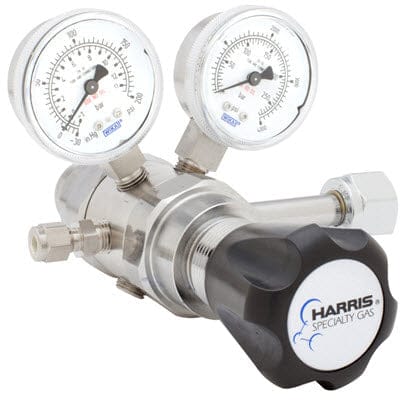

Harris® HP 722C Two Stage Specialty Gas Regulator - Hydrogen 722C015350E

The Harris® HP 722C-015-350-E specialty gas regulator is a two stage, chrome-plated brass, high purity regulator with CGA 350 (Hydrogen) inlet and 1/4" tube fitting outlet. It features a 316L stainless steel diaphragm and a one piece encapsulated seat with sintered filter to prevent contamination. The HP 722C is recommended for gas purity levels of Grade 5.0 (99.999%) and higher. It is ideal for laboratory and research applications such as gas chromatography, EPA protocol, laser gas and emission monitoring.

  • Two Stage design ensures constant delivery pressure, regardless of gas cylinder pressure drop.
  • CGA 350 Hydrogen inlet
  • 1/4 inch tube fitting
  • 1-11/16 inch 316L stainless steel diaphragm eliminates contamination from diffusion or outgassing
  • One piece encapsulated seat design includes a sintered filter to protect the seat from particulate contamination
  • 2 inch dual scale brass gauges (psi/bar)
  • Designed to 1 x 10-9 cc/sec. inboard helium leak rate to maintain gas purity levels
  • Maximum inlet 3000 PSIG
  • External relief valve standard
  • Available with delivery pressures up to 500 PSIG. (Please specify above)
