Inlet:CGA 330 Corrosive Gas (Hydrogen Chloride, Hydrogen Sulfide, Sulfur Tetrafluoride, etc.)

Outlet:Stainless Steel Diaphragm Valve with 1/4 inch FNPT

FAST & FREE SHIPPING On All Orders Over $99

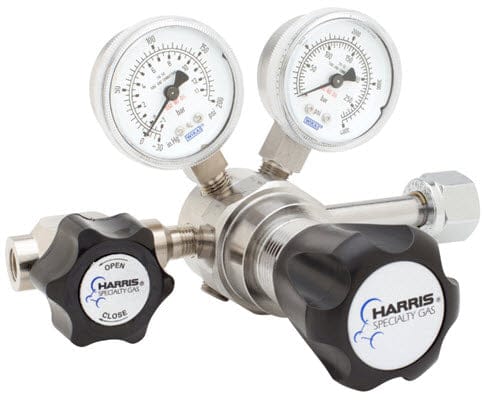

Harris® HP 741 CGA 330 Stainless Steel Corrosive Gas Regulator 741015330A

The Harris® HP 741-015-330A specialty gas regulator is a single stage, stainless steel, high purity regulator with CGA 330 (corrosive gas) inlet and stainless steel diaphragm valve outlet. It features a 316L stainless steel diaphragm and a one piece encapsulated seat with sintered filter to prevent contamination. The HP 741 is recommended for corrosive gases and other spec gases where purity levels exceed Grade 6.0 (99.9999%) and higher. It is ideal for laboratory and research applications where corrosive or ultra high purity gases are being used. Is is designed for use in gas chromatography, EPA protocol, laser gas and emission monitoring.

  • Stainless Steel CGA 330 Corrosive Gas inlet (Hydrogen Chloride, Hydrogen Sulfide, Sulfur Tetrafluoride, etc.)
  • Stainless Steel diaphragm valve (installed) with 1/4 inch female NPT
  • 1-11/16 inch 316L stainless steel diaphragm eliminates contamination from diffusion or outgassing
  • 316L stainless steel body and fittings; chrome plated bonnet
  • One piece encapsulated seat design includes a sintered filter to protect the seat from particulate contamination
  • 2 inch dual scale stainless steel gauges (psi/bar)
  • Designed to 1 x 10-9 cc/sec. inboard helium leak rate to maintain gas purity levels
  • Front or back panel mountable
  • Maximum inlet 3000 PSIG
  • External relief valve standard
  • Available with delivery pressures up to 500 PSIG. (Please specify above)
