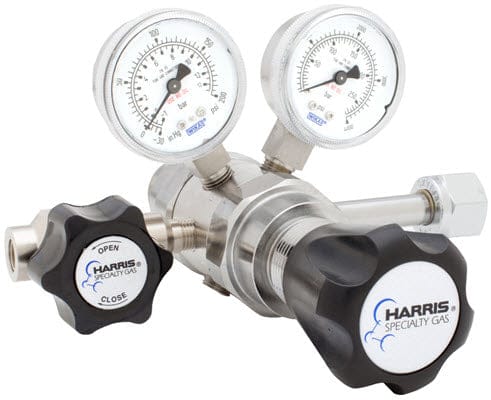

Harris® HP 742 CGA 240 Two Stage Stainless Steel Corrosive Gas Regulator 742015240A

The Harris® HP 742-015-240-A specialty gas regulator is a two stage, stainless steel, high purity regulator with CGA 240 (corrosive gas) inlet and stainless steel diaphragm valve outlet. It features a 316L stainless steel diaphragm and a one piece encapsulated seat with sintered filter to prevent contamination. The HP 742 is recommended for gas purity levels of Grade 6.0 (99.9999%) and higher. It is ideal for laboratory and research applications where corrosive or ultra high purity gases are being used. Is is designed for use in gas chromatography, EPA protocol, laser gas and emission monitoring.



Features
  • Two Stage design ensures constant delivery pressure, regardless of gas cylinder pressure drop.
  • Stainless Steel CGA 240 Corrosive Gas Inlet (Ammonia, Dimethylamine, Trimethylamine).
  • Stainless Steel diaphragm valve (installed) with 1/4 inch female NPT
  • 1-11/16 inch 316L stainless steel diaphragm eliminates contamination from diffusion or outgassing
  • 316L stainless steel body and fittings; chrome plated bonnet
  • One piece encapsulated seat design includes a sintered filter to protect the seat from particulate contamination
  • 2 inch dual scale stainless steel gauges (psi/bar)
  • Designed to 1 x 10-9 cc/sec. inboard helium leak rate to maintain gas purity levels
  • Front or back panel mountable
  • Maximum inlet 3000 PSIG
  • External relief valve standard
  • Available with delivery pressures up to 125 PSIG. (Please specify above)
