Harris Model 25GX HVAC Purging Regulator

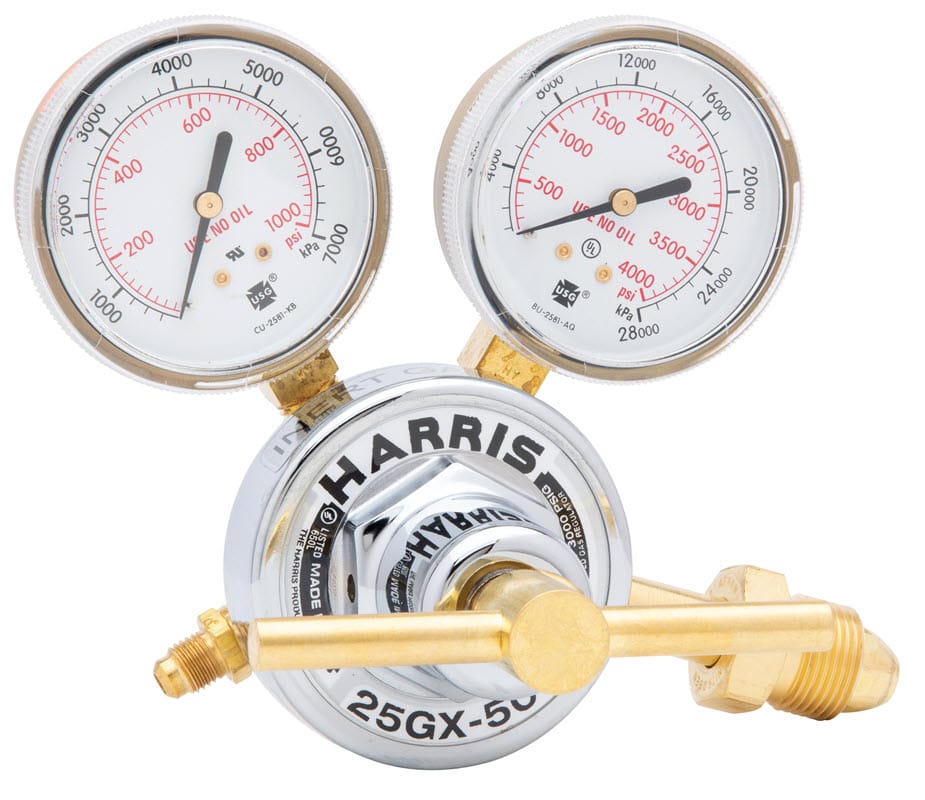

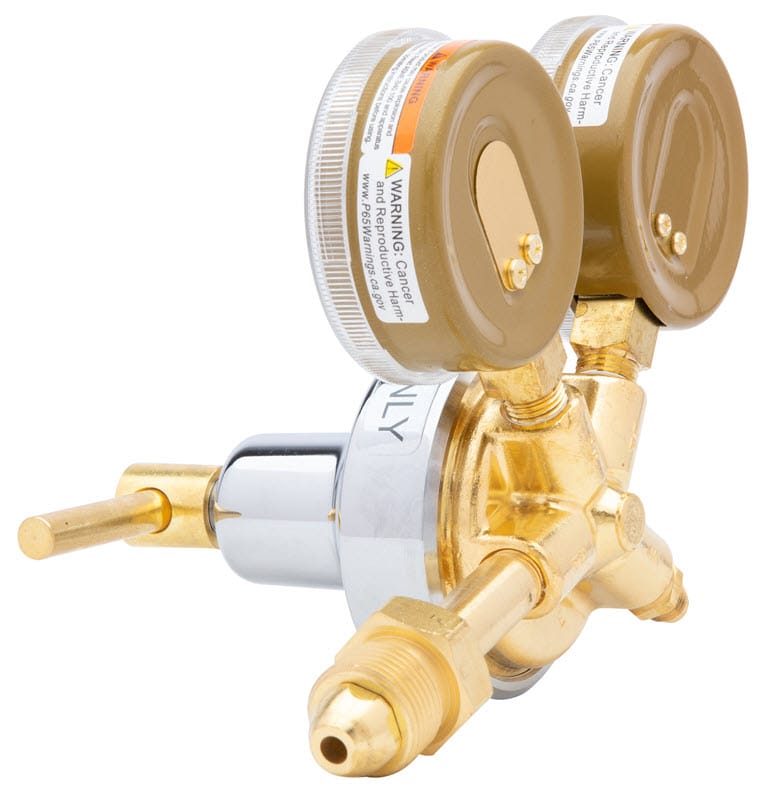

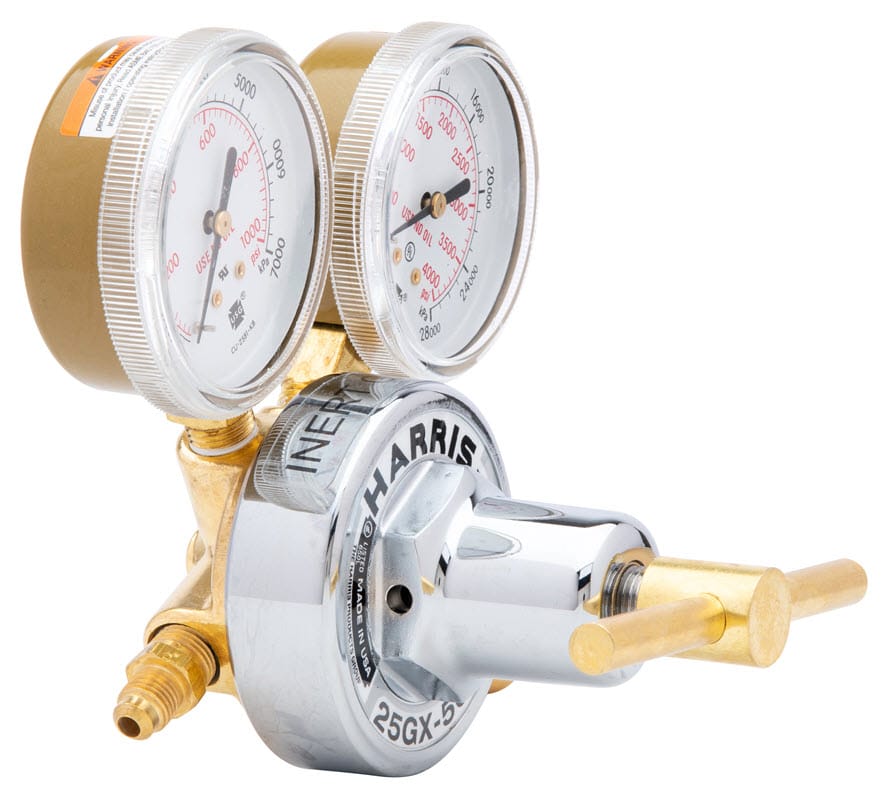

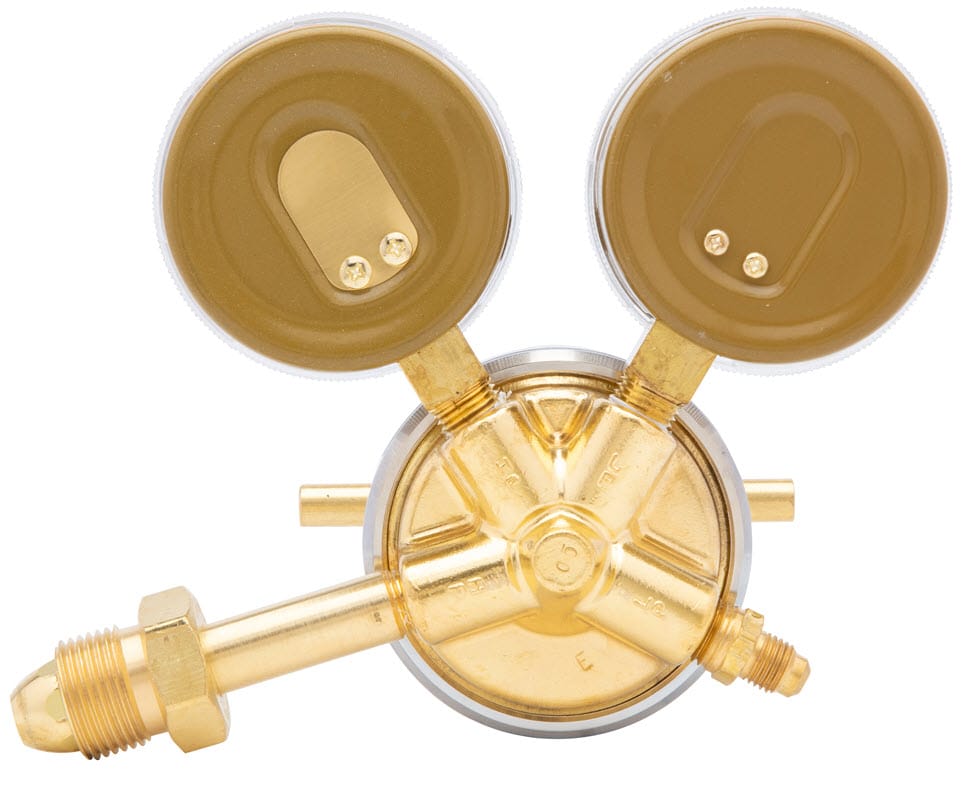

Harris® 25GX HVAC Purging Regulator

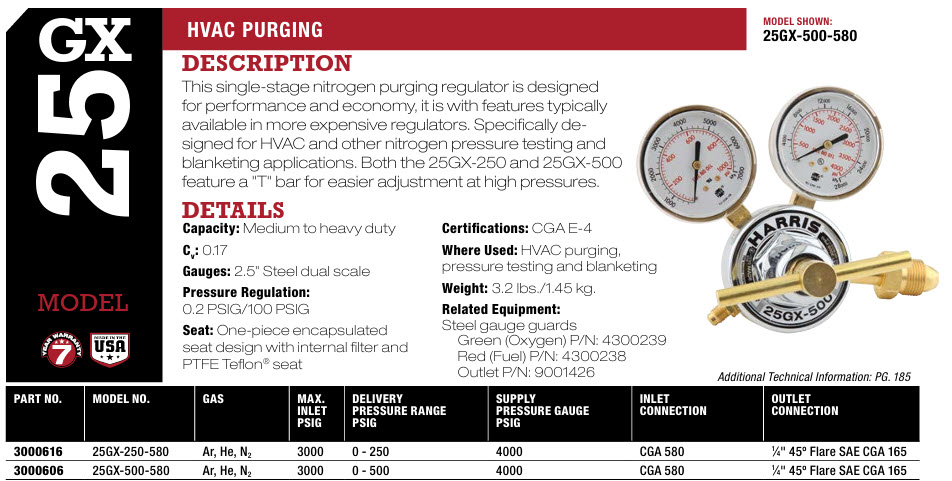

Genuine Harris® 25GX HVAC Purging Regulator is a single-stage, forged brass regulator that is specfically designed for HVAC system purging and pressure testing. It features a 1/4 inch male flare SAE outlet fitting and CGA 580 (nitrogen/inert gas) inlet nut and nipple. The 25GX HVAC purging regulator is available in 0-250 PSIG outlet pressure or 0-500 PSIG outlet pressure models. Large 2.5" diameter inlet and working pressure gauges have shatterproof dial covers. The 25GX HVAC features a one-piece encapsulated seat design along with internal filter and PTFE Teflon seat. Large brass "T" adjusting screw provides precise operation and a longer service life. All Harris 25GX regulators are covered by Harris' industry-best 7 year warranty.

Features

Ideal for nitrogen purging and pressure testing of HVAC systems

1/4inch male flare SAE outlet fitting

Workhorse of Harris industrial regulator line

Brass body and nickel-plated zinc bonnet for longer service life

2.5 in. gold painted steel dual scale easy-to-read gauges (psi/kPa)

Large brass "T" adjusting screw for easy grip and precise pressure adjustment

Neoprene diaphragm for greater sensitivity and improved pressure control

One-piece encapsulated seat design with an internal filter to protect the PTFE Teflon® seat from particulate contamination

Conforms to CGA E-4 standard for gas pressure regulators, UL® listed
