Harris Model 62-5F Straight Hand Cutting Torch - 90° Head Angle

Harris® 62-5F Cutting Torch - 90 Degree Head Angle

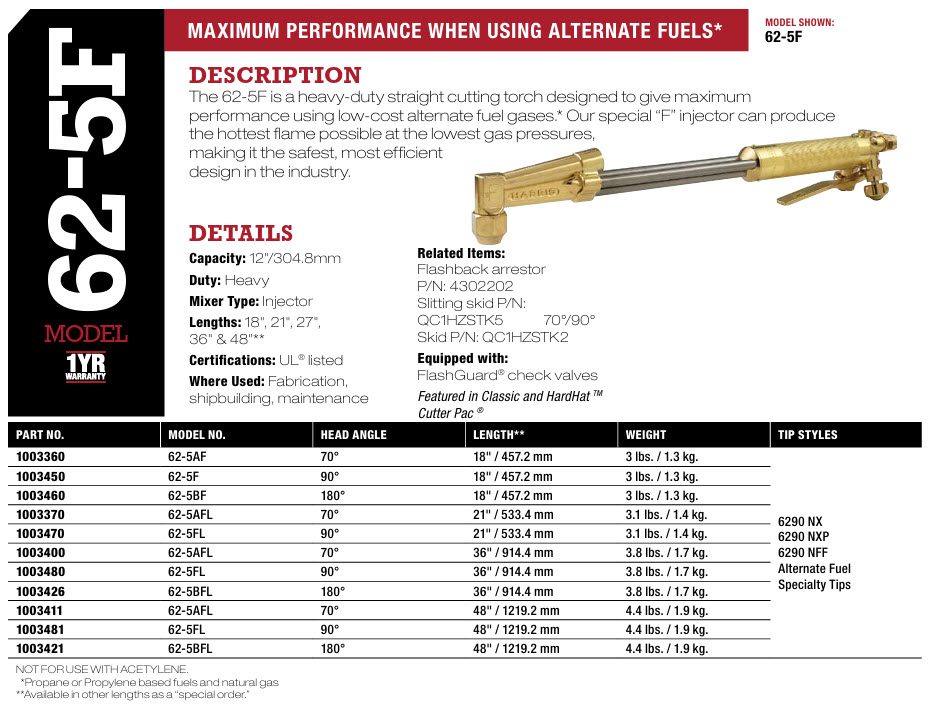

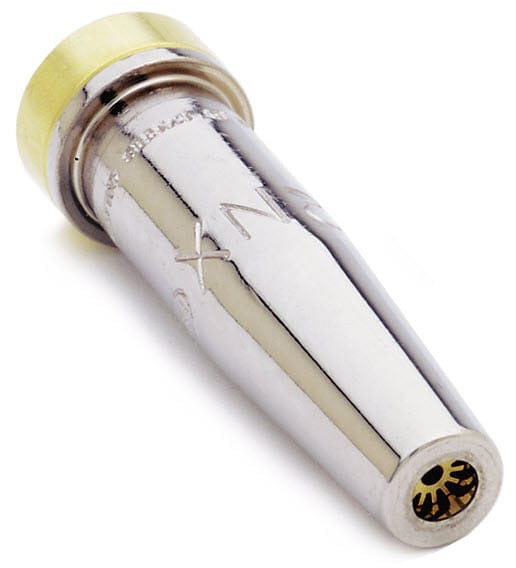

Genuine Harris® 62-5F (Injector-Style) cutting torch with 90 degree head is a heavy duty straight hand cutting torch that is the industry standard when using propane, natural gas or propylene fuel gas. The injector nozzle in the torch head provides the most efficient mixing of oxygen and low pressure fuel gas available. The 62-5F injector-style cutting torch produces the hottest flame possible when using natural gas between 1/4 lb. to 2 lb. PSIG delivery pressure. This one piece cutting torch is available in 18 inch, 21 inch, 36 inch and 48 inch lengths and uses Harris 6290 series cutting tips. The 62-5F cutting torch is made of brass and stainless steel. The triangular triple gas tube and head design provides structural strength to the torch. All joints are brazed for added service life. The 62-5F is capable of cutting up to 12" thick steel with OPTIONAL cutting tips.

Features

Heavy duty UL® listed straight hand cutting torch for use with propane, propylene or natural gas

F-injector or low pressure mixing system

Brazed triangular tube design and brazed connections provide strength and durability

Solid forged brass head resists abuse and distortion for reliable performance and longer service life

Flip-up solid forged brass cutting lever for convenience and ease of operation

Ease-on cutting valve for safety, smoother starts and more precise cutting control

Equipped with replaceable FlashGuard® check valves

Cuts up to 12 in. (304.8mm) plate

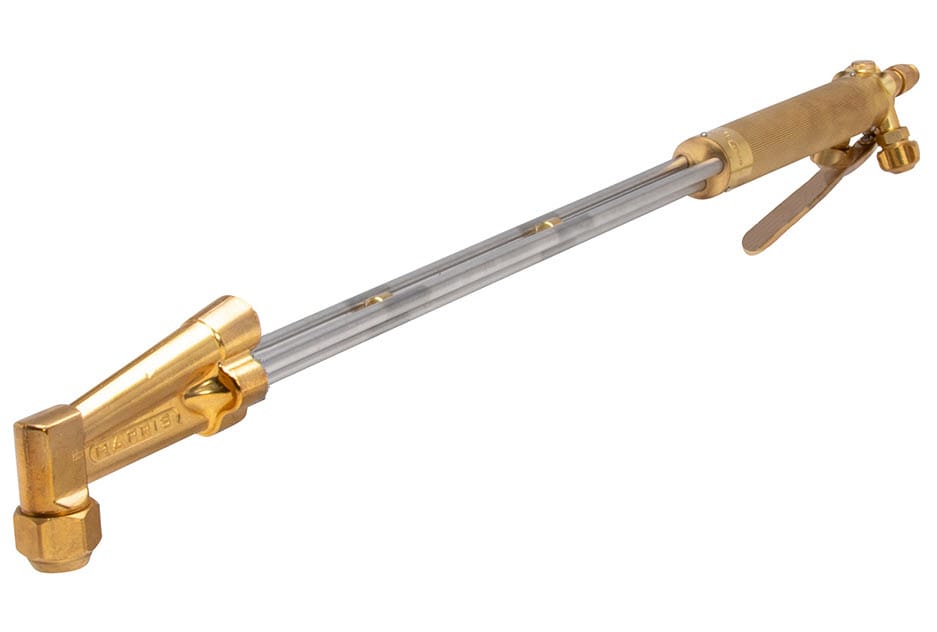

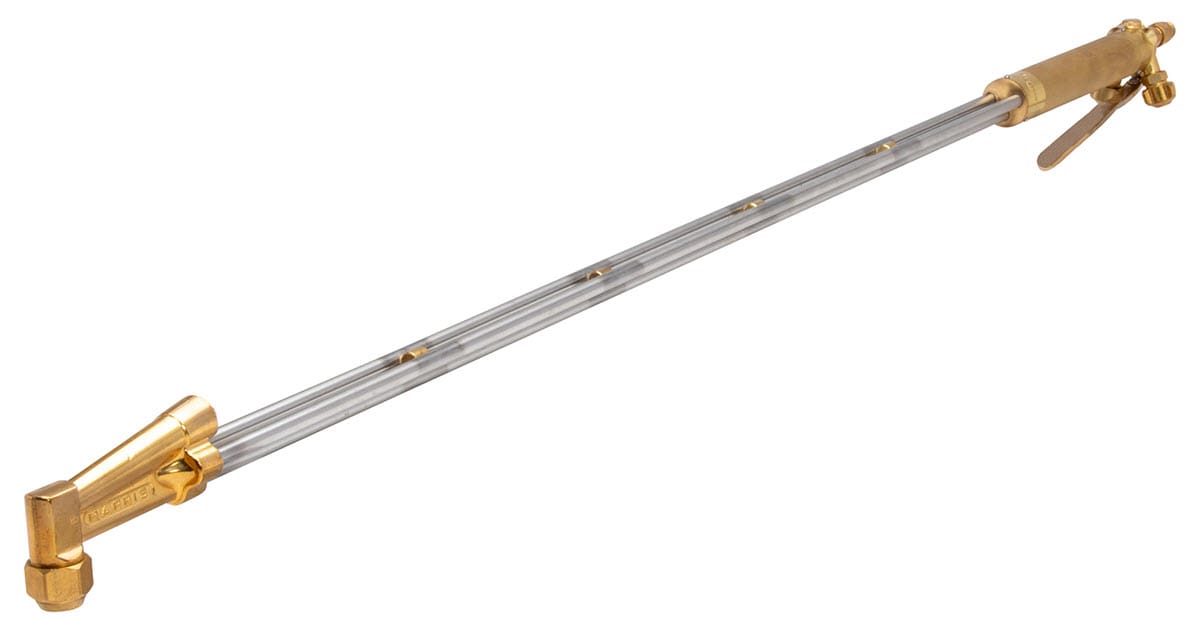

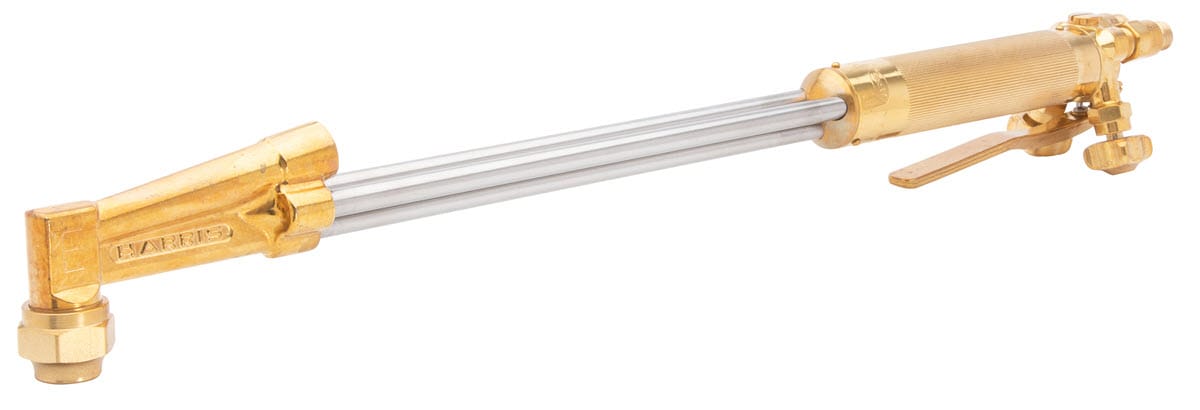

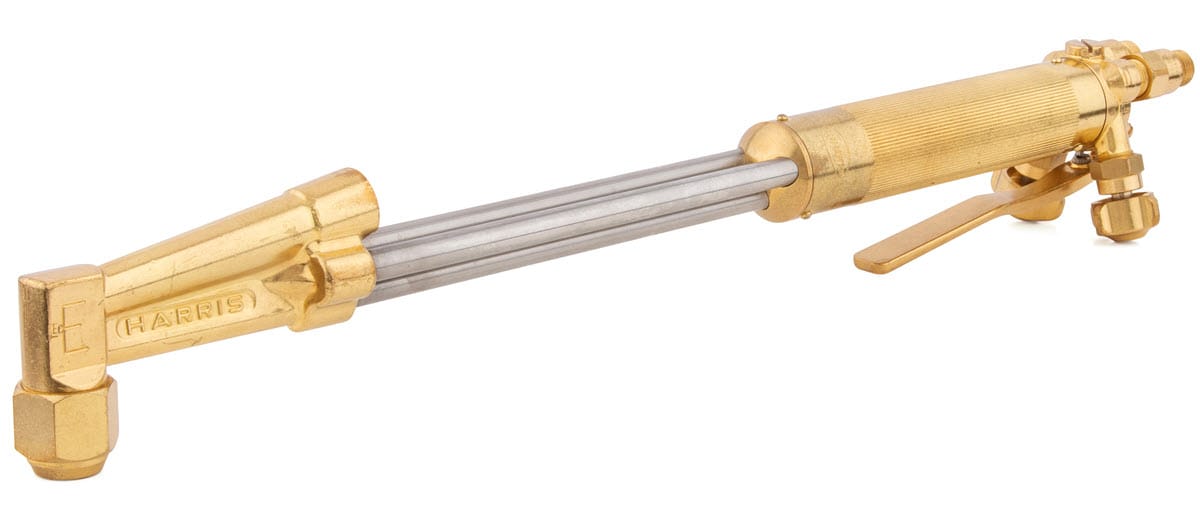

Available 18 in., 21 in., 36 in. and 48 in. lengths

Torch head angle is 90◦

NOT SUITABLE FOR USE WITH ACETYLENE FUEL GAS
